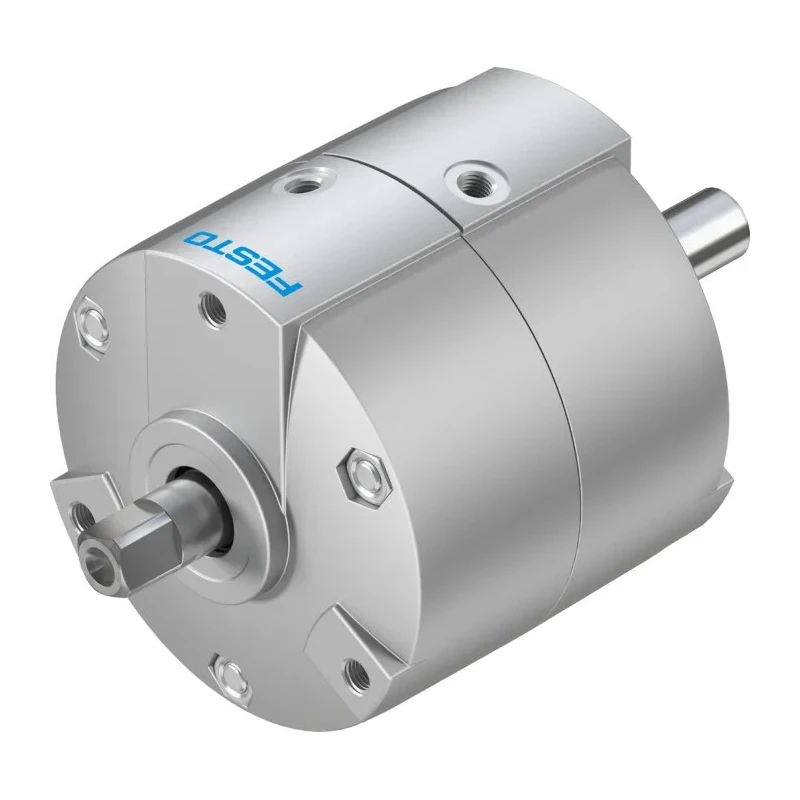

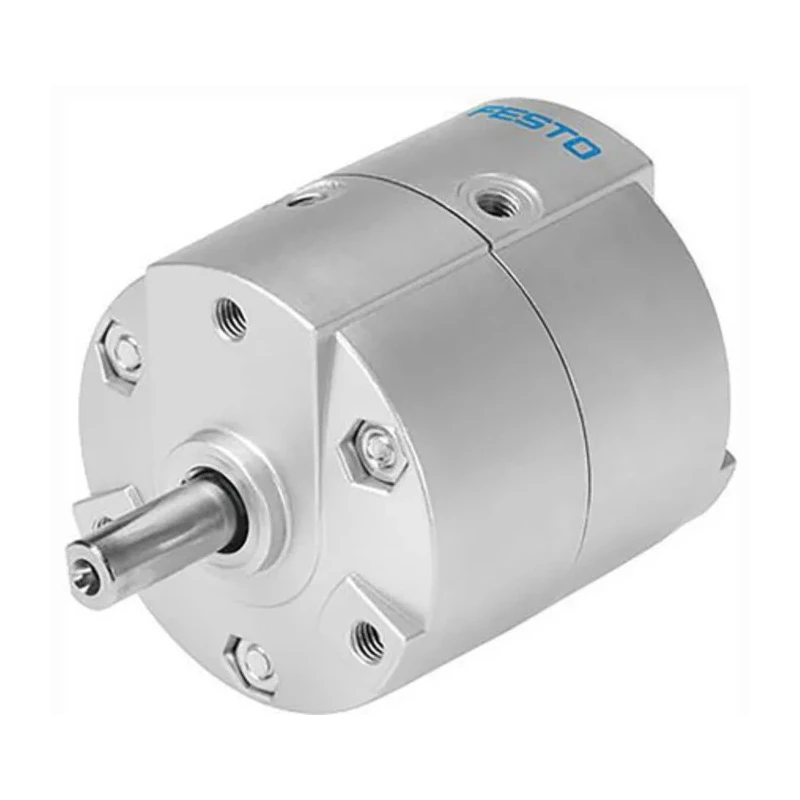

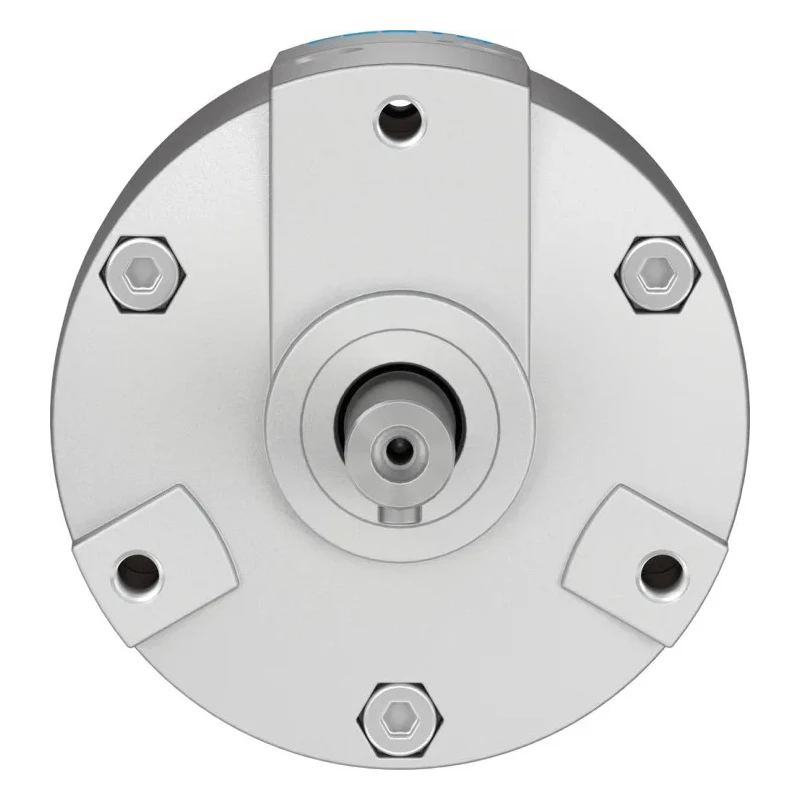

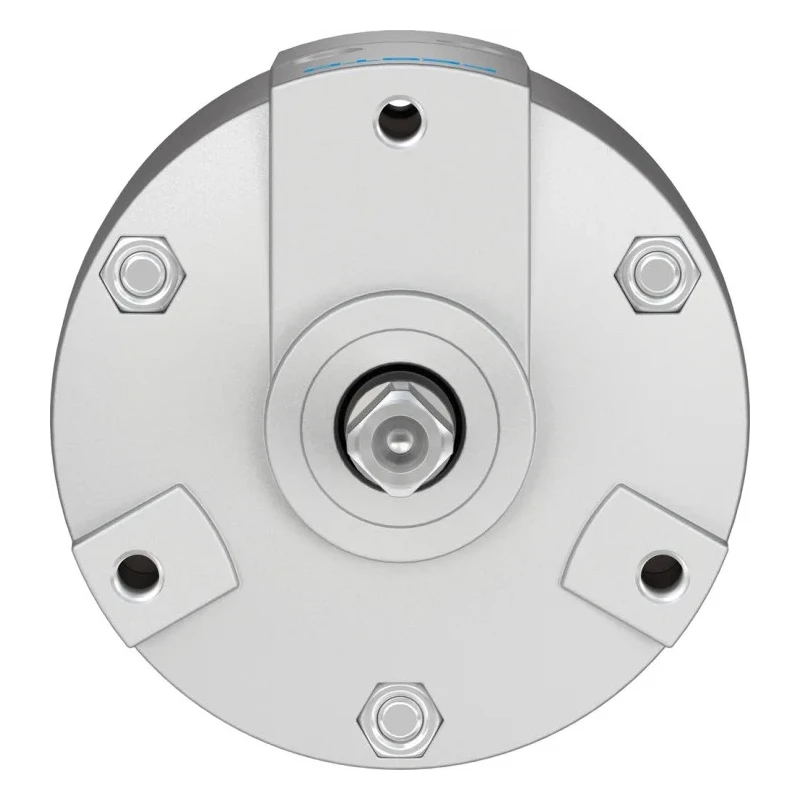

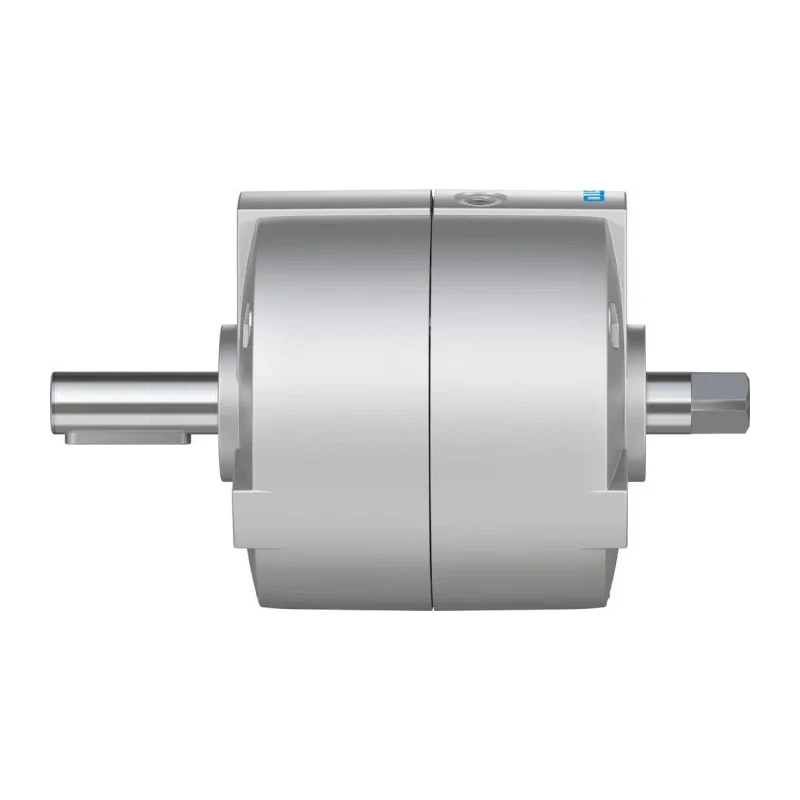

Festo Pneumatic Rotary Actuator Double Acting 25mm Bore 8 bar Pressure, 5Nm Torque DRVS-25-180-P

Festo DRVS-25-180-P Pneumatic Rotary Actuator is designed for industrial applications requiring precise rotary vane motion with a 25mm bore diameter. Operating at a maximum pressure of 8 bar, this double acting actuator converts compressed air efficiently into rotary movement capable of delivering up to 5Nm torque.

The actuator features a die-cast aluminium housing that offers excellent resistance to wear, abrasion, and external environmental factors such as dust and water splashes, ensuring long service life. Internally, it is protected by two TPE seals and a steel ball bearing to maintain reliability under tough conditions.

Its threaded M5 port guarantees stable connections, while the elastic PU cushioning reduces end-position impact, extending mechanical durability. The nickel-plated steel bore enhances corrosion resistance and minimizes friction, making it ideal for continuous industrial use.

This model supports adjustable swivel angles and flexible mounting, allowing easy installation and broad compatibility across a range of pneumatic systems. It tolerates operating temperatures between 0°C and 60°C, suitable for environments with moderate temperature variations.

Applications include industrial conveying, factory automation and control, as well as clamping and positioning tasks where accurate and repeatable rotary motion is necessary. Equipped with a double acting action type for bi-directional rotary motion.

Constructed with a die-cast aluminium housing for durability and resistance to wear. Threaded M5 pneumatic port ensures secure and stable system connection. Features elastic cushioning using PU material to reduce wear on vane ends.

Nickel-plated steel bore enhances corrosion resistance and friction reduction. Adjustable swivel angle provides compatibility with various applications. Suitable for ambient temperatures from 0°C up to 60°C for use in harsh environments.

Lightweight design at 494g facilitates easy integration without strain on pneumatic systems. Ideal for industrial automation tasks including conveying, clamping, and positioning.

Festo products are known for their engineering excellence and the DRVS-25-180-P actuator is exemplary for pneumatic rotary applications. Browse the Industrial Tools & Equipment category at EnvMart to find more solutions from Festo and other leading brands.
