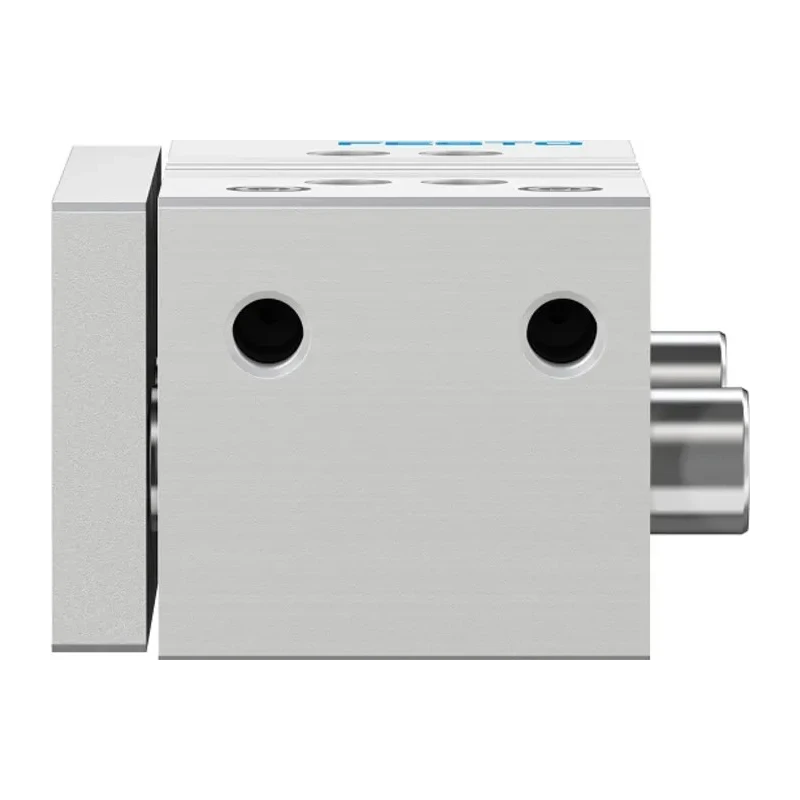

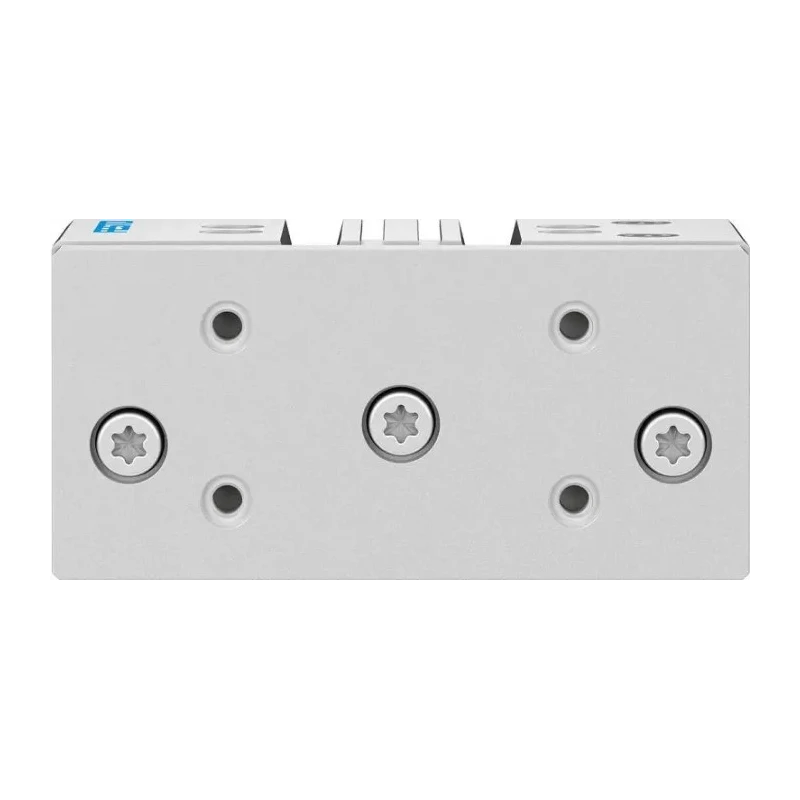

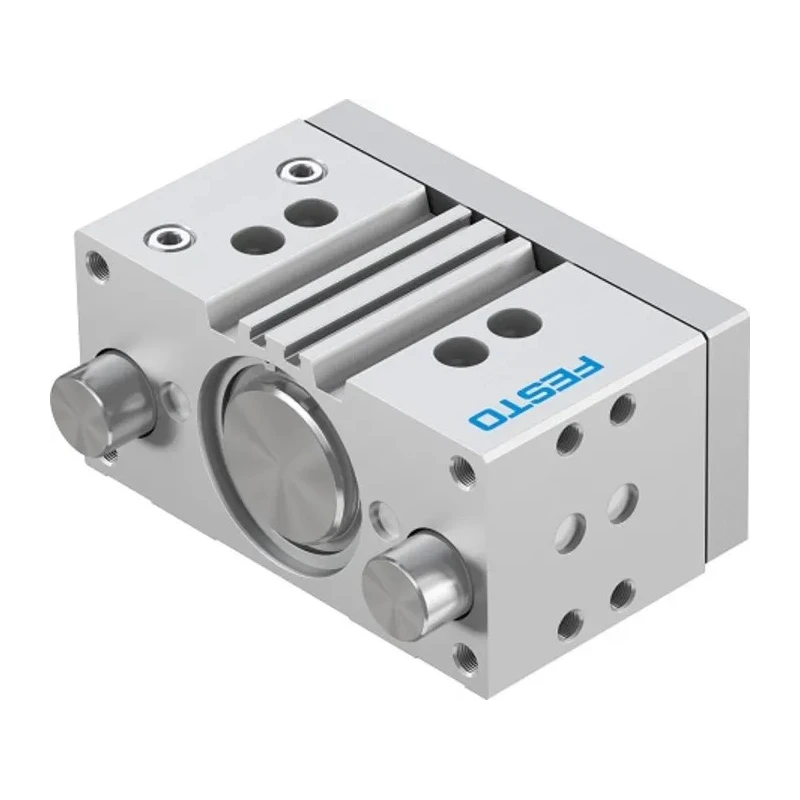

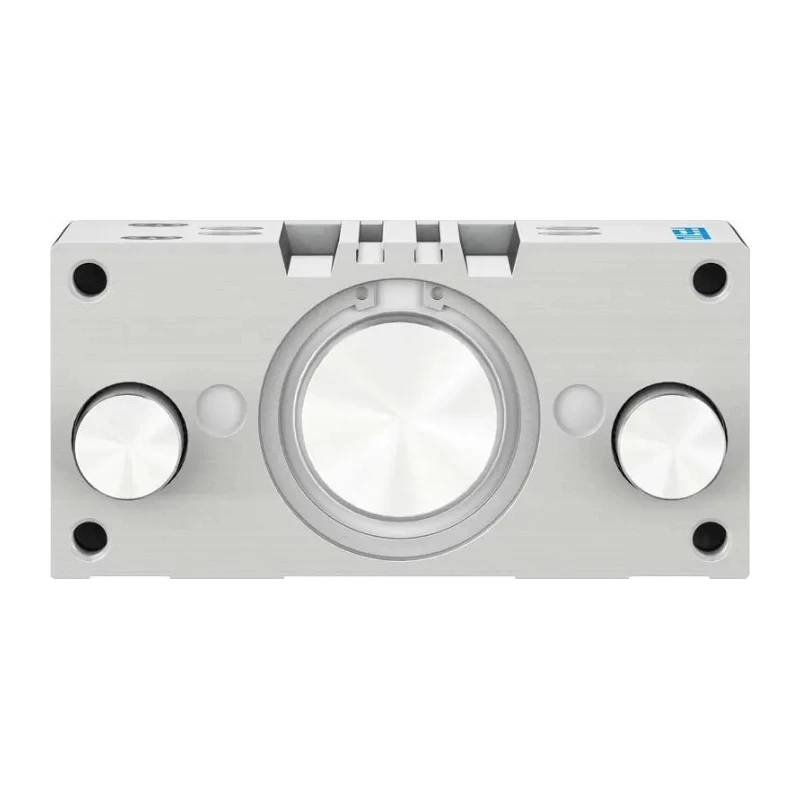

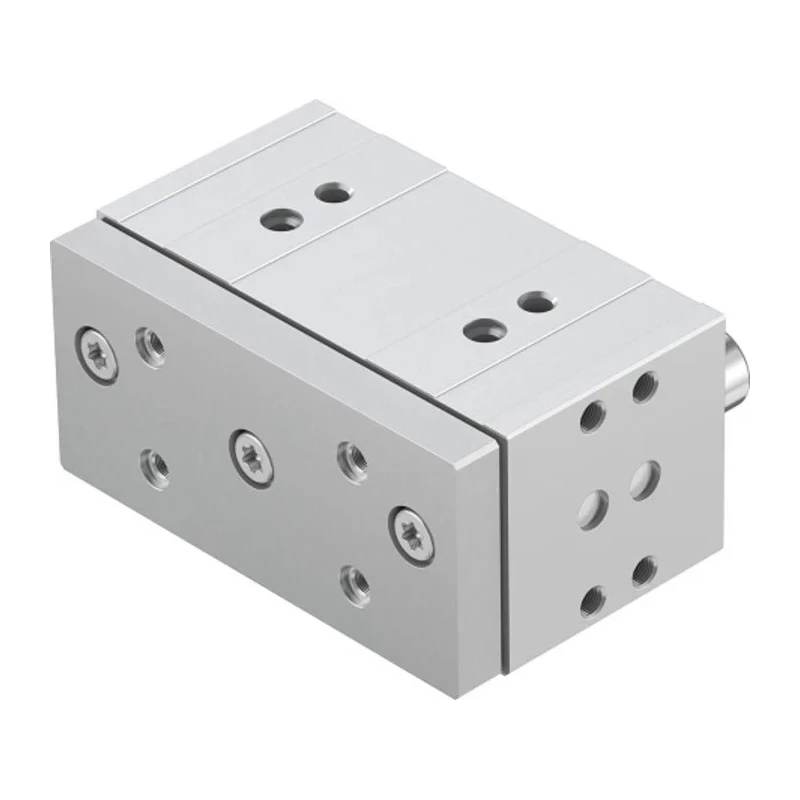

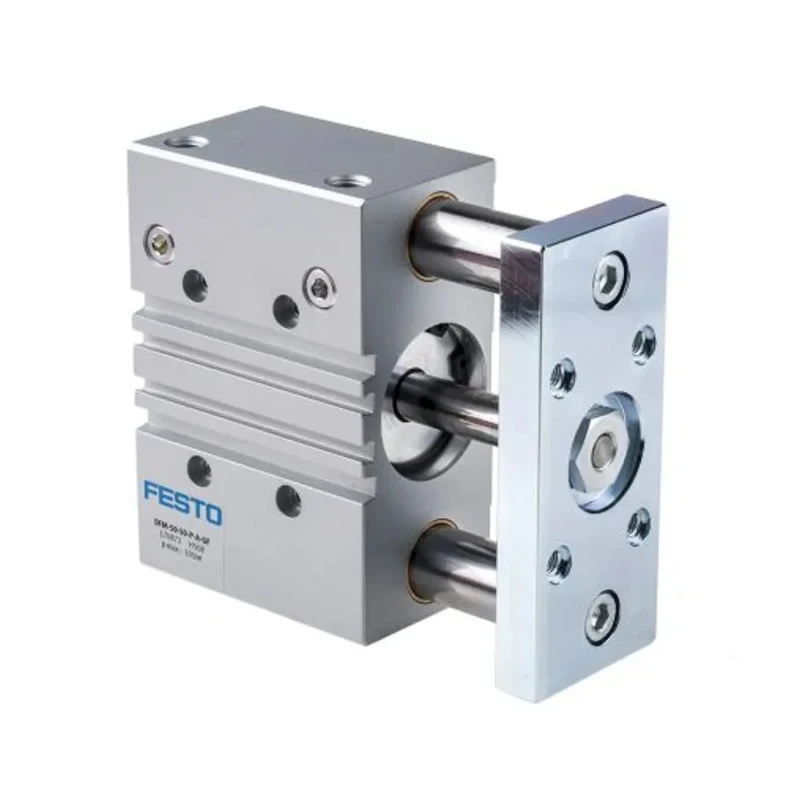

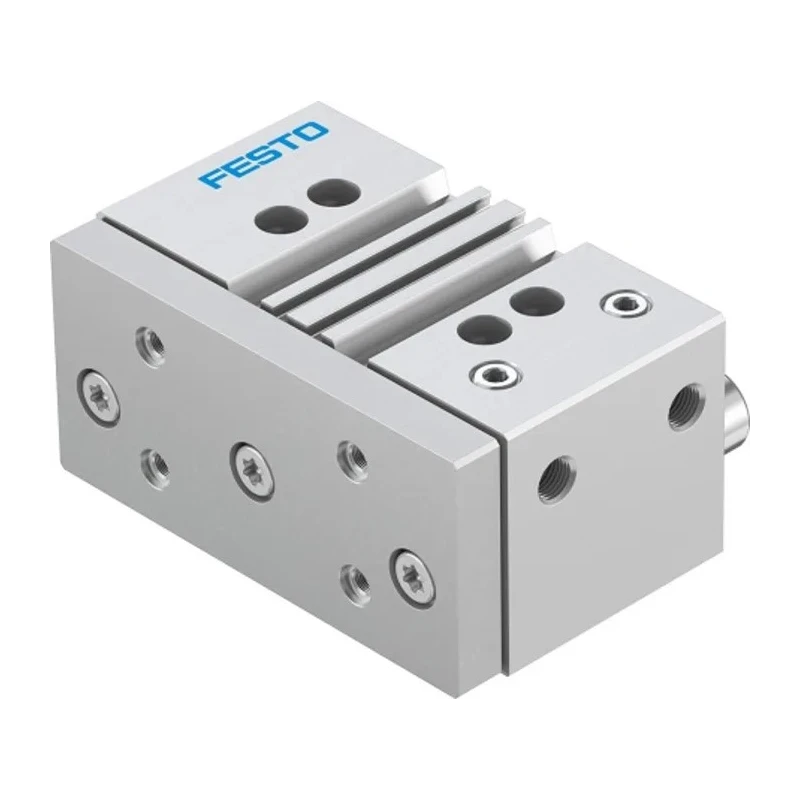

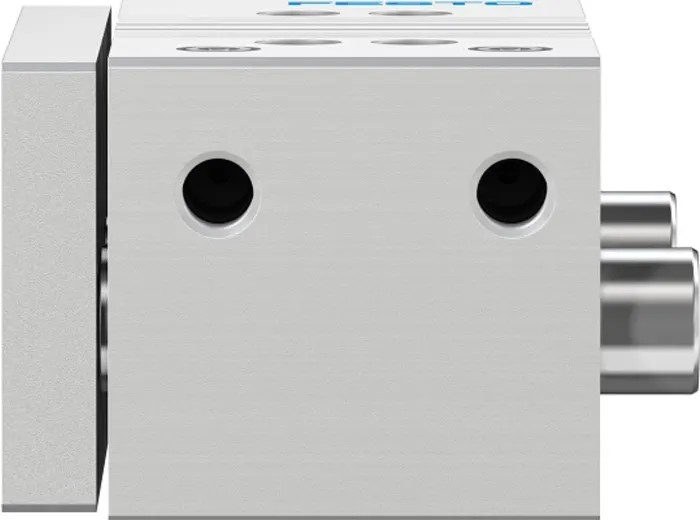

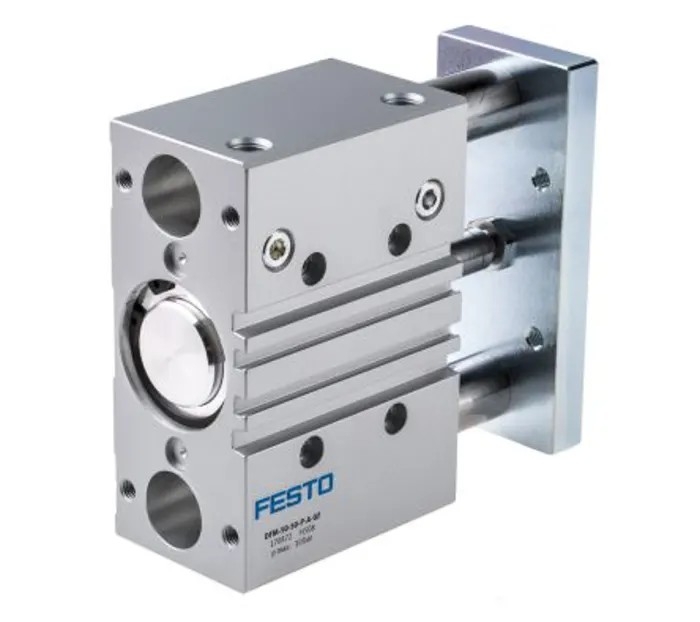

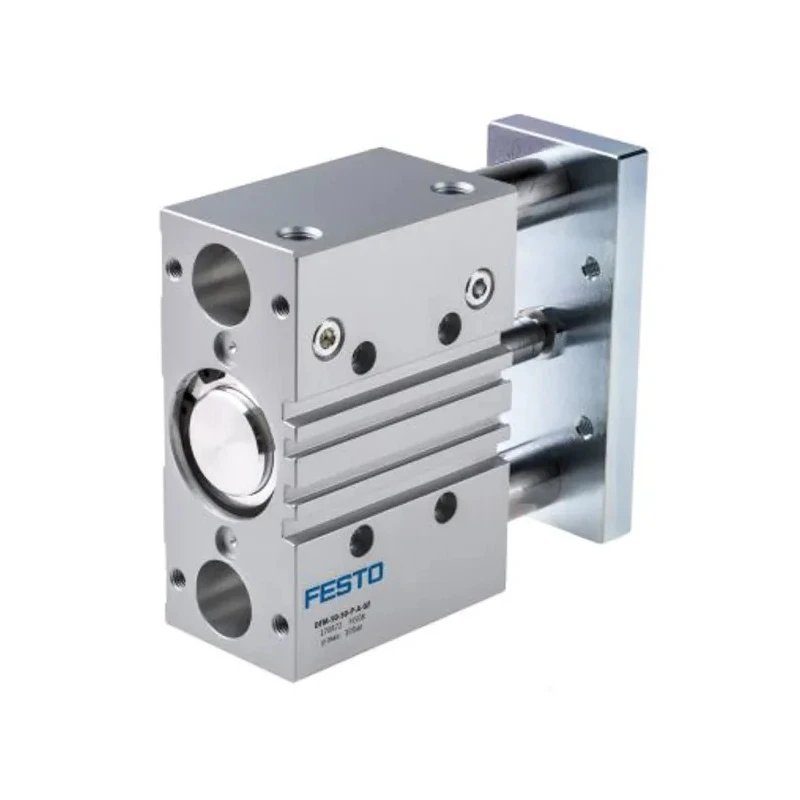

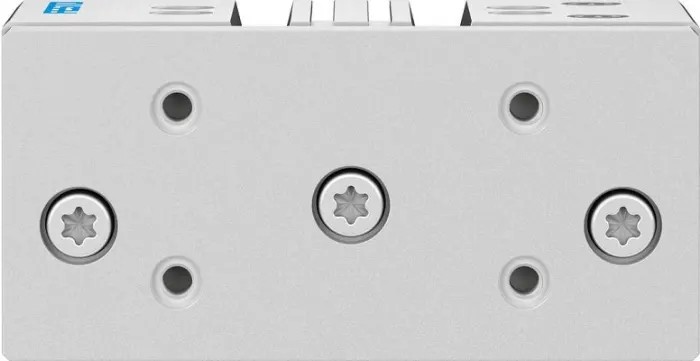

Festo Pneumatic Guided Cylinder 63mm Bore, Double Acting, 25mm Stroke, Through Hole Mount DFM-63-25-P-A-GF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Height | 78mm |
| Length | 118mm |
| Model | DFM-63-25-P-A-GF |
| Gross Weight | 4.5kg |
| Width | 162mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 25mm |
| Bore Diameter | 63mm |
| Action Type | Double Acting |
| Standards/Approvals | RoHS, ISO 1179-1 and ISO 228-1 |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
| Piston Rod Thread Size | 1/4 in G |
Key Features
- Constructed from wrought aluminium housing for high resistance to torque and lateral forces.
- Double acting cylinder delivering 1,870N advance stroke force at 6 bar pressure.
- Elastomer cushioning rings at each end for shock absorption and extended piston life.
- Operating temperature range from -20°C to 80°C ensuring reliable performance in demanding environments.
- Maximum operating pressure of 10 bar and piston speed up to 0.8 m/s for precision adjustments.
- Guide system with plain and ball bearing for enhanced stability and reduced wear.
- Piston rod thread size is 1/4 inch G, compatible with standard fittings.
- Mountable in any orientation via through-holes or female threads for flexible system design.
Product Description
Festo DFM-63-25-P-A-GF pneumatic guided cylinder is a robust double acting actuator designed with a 63mm bore and 25mm stroke length. The unit combines drive and guide functions within a single wrought aluminium housing, which resists torque and lateral forces, making it ideal for rigorous industrial applications.
The cylinder offers a powerful advance stroke force of up to 1,870N at a 6 bar operating pressure and features elastomer cushioning rings at both ends to absorb impact and extend the piston’s service life. It supports precise movements with a maximum piston speed of 0.8 m/s and operates reliably in temperatures ranging from -20°C to 80°C.
Equipped with a plain bearing and ball bearing guide system and a 1/4 inch G piston rod thread, this pneumatic guided cylinder offers versatile mounting options via through holes or female threads, enabling installation in any direction according to system design needs.
Compliant with RoHS and standards ISO 1179-1 and ISO 228-1, this Festo pneumatic guided cylinder is suited for demanding industrial sectors such as printing, packaging, and electronics manufacturing where precise positioning, clamping, and stopping tasks are critical.
Aluminium housing for torque and lateral force resistance. Double acting function with strong stroke force. Elastomer cushioning for impact absorption. Wide operating temperature range from -20 to 80 degrees Celsius. Maximum operating pressure up to 10 bar and piston speed of 0.8 meters per second.
Guide with plain and ball bearing for smooth operation. Flexible mounting through through-holes or female thread. Supports integration with proximity sensors for automated systems. Applications include printing, packaging, and electronics manufacturing.
Explore more Pneumatic Guided Cylinders for precise and durable automation solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
This pneumatic guided cylinder has a stroke length of 25mm.
The bore diameter of this model is 63mm.
It operates reliably within a temperature range of -20°C to 80°C.
The cylinder features elastomer cushioning rings at both ends for shock absorption.
It can be mounted in any orientation using through holes or female threads.
The maximum piston speed is up to 0.8 m/s.
It is equipped with both plain bearing and ball bearing guide systems for enhanced stability.
The gross weight of this unit is 4.5kg.
It complies with RoHS and the standards ISO 1179-1 and ISO 228-1.
It is suitable for applications in printing, packaging, and electronics manufacturing.
The piston rod thread size is 1/4 inch G, compatible with standard fittings.
