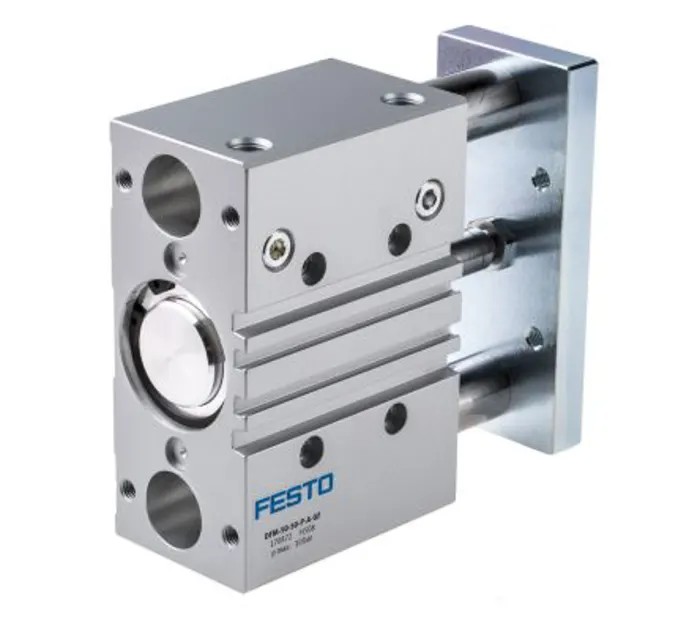

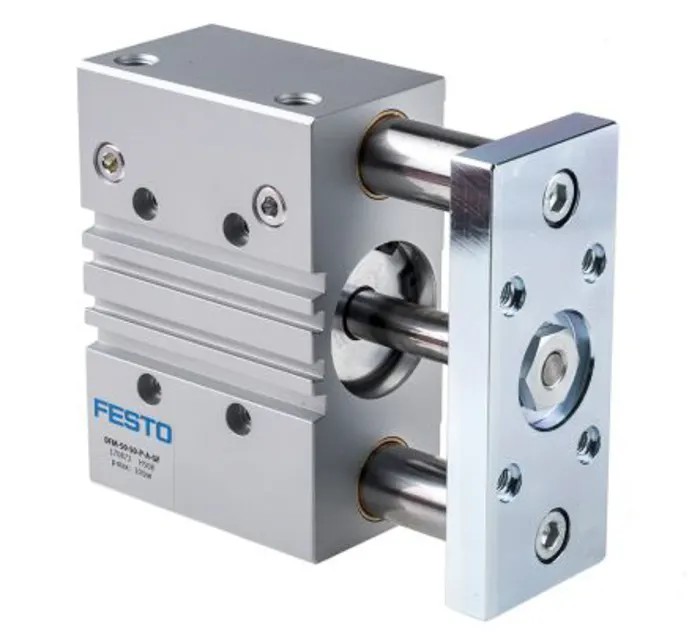

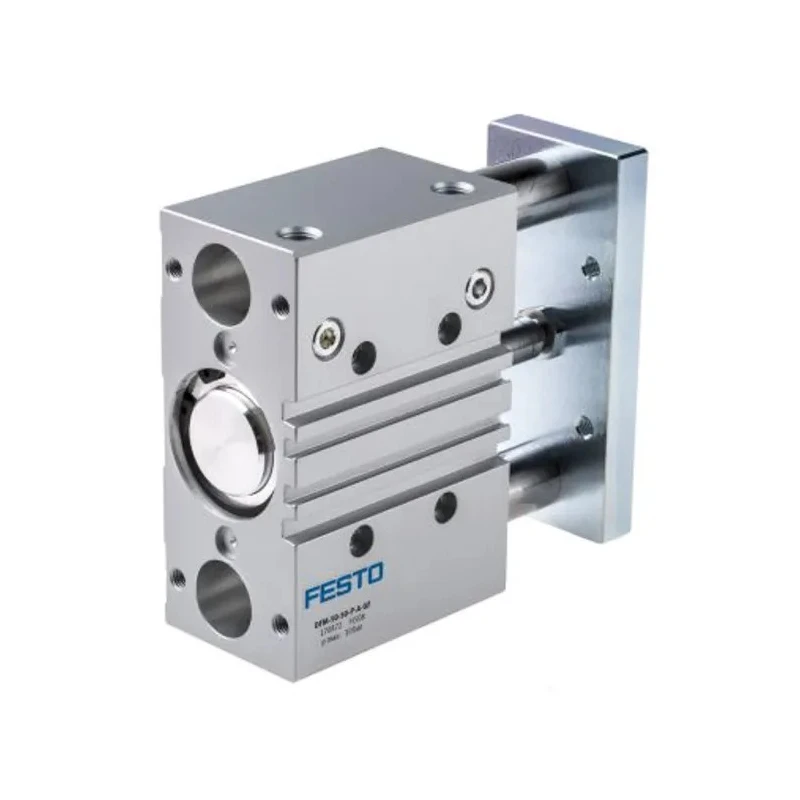

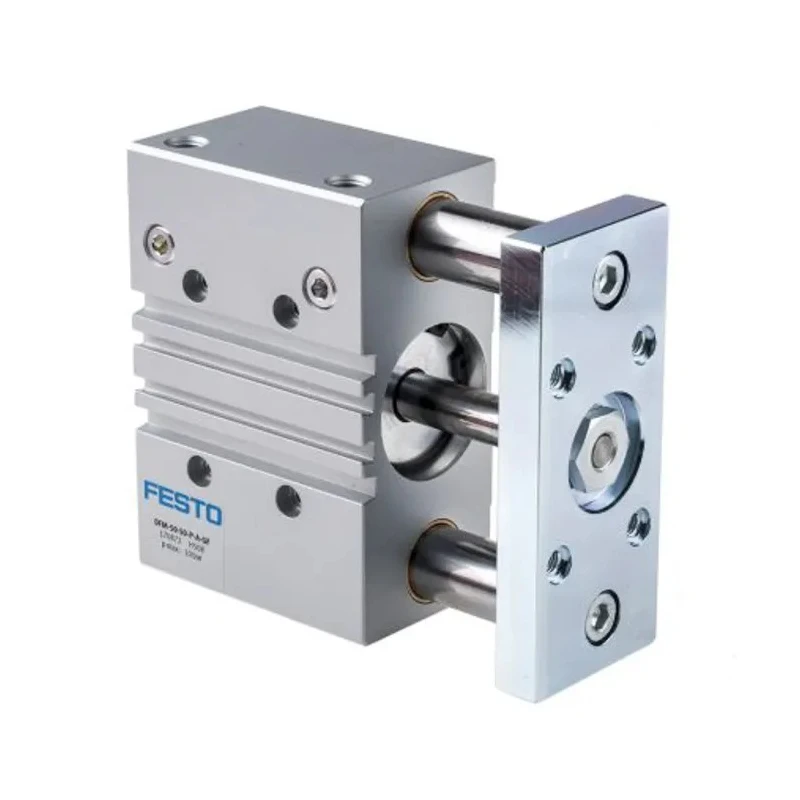

Festo Pneumatic Guided Cylinder 63mm Bore, Double Acting, Through Hole Side Flat Mount, 10 bar Pressure DFM-63-160-P-A-GF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy, Polyurethane, Tempered Steel, Nitrile Rubber (NBR), High Alloy Stainless Steel |
| Maximum Operating Pressure | 10 bar |
| Height | 78mm |
| Length | 294mm |
| Model | DFM-63-160-P-A-GF |
| Gross Weight | 8.9kg |
| Width | 162mm |
| Mount Type | Through Hole, Side, Flat |
| Series | DFM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 160mm |
| Bore Diameter | 63mm |
| Action Type | Double Acting |
| Standards/Approvals | RoHS, ISO 228-1, ISO 1179-1 |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
Key Features
- The compact and rigid construction combines drive and guide in a single aluminum housing.
- Four plain slide bearings ensure excellent resistance to lateral forces and high load capacity.
- Elastomer cushioning plates reduce noise and extend service life.
- Flexible mounting options include through hole, side, and flat mount types with supply ports on top and side.
- Operates efficiently within temperature ranges of -20°C to 80°C and maximum pressure of 10 bar.
- Maintenance-free design with high resistance to torque and lateral external forces.
- Integrated slots allow incorporation of proximity sensors for linear motion control.
- Applications include clamping, stopping, lifting, and material handling for loads up to 150 kg.
Product Description
Festo DFM-63-160-P-A-GF Pneumatic Guided Cylinder is a high-precision double acting pneumatic actuator designed for industrial uses including clamping, lifting, and stopping. This cylinder integrates drive and guide functions in a single rugged aluminum construction providing robust resistance to torque and lateral forces.
Equipped with four plain slide bearings on large diameter guide rods, it ensures high rigidity suited for heavy load pneumatic applications. The unit features elastomer cushioning plates that help reduce operational noise and increase service longevity.
The cylinder supports flexible mounting via through hole, side, and flat types, and includes supply ports on both the top and side for adaptable installation configurations. Operating parameters include a maximum pressure of 10 bar, stroke length of 160 mm, bore diameter of 63 mm, and temperature range from -20°C to 80°C.
The maintenance-free and compact design incorporates slots for proximity sensor integration to monitor linear piston motion precisely. Typical industrial use cases cover material handling, dynamic lifting, secure stopping up to 150 kg loads, and component clamping for reliable processing.
The compact rigid aluminum housing integrates drive and guide components. Four plain slide bearings provide excellent durability against lateral forces. Flexible mounting and supply port options enhance application adaptability.
Elastomer cushioning reduces noise and extends actuator life. Maintenance-free design improves operational uptime. Integrated slots allow sensor applications for precise motion measurement. Designed for industrial pneumatic guided actuator use with high load capacity.
Explore more Pneumatic Guided Cylinders and related pneumatic components at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
This cylinder has a stroke length of 160 mm.
The dimensions of this unit are 294 mm in length, 162 mm in width, and 78 mm in height.
The bore diameter is 63 mm.
The body is made from wrought aluminium alloy, polyurethane, tempered steel, nitrile rubber (NBR), and high alloy stainless steel.
It operates efficiently within a temperature range of -20°C to 80°C.
The cylinder supports flexible mounting options including through hole, side, and flat mount types.
It uses elastomer cushioning plates to reduce noise and extend service life.
This model features a double acting action type.
This cylinder is compliant with RoHS, ISO 228-1, and ISO 1179-1 standards.
The gross weight of this model is 8.9 kg.
It is suitable for applications including clamping, stopping, lifting, and material handling for loads up to 150 kg.
