| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Model | 794956-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | VAL-U-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | VAL-U-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |

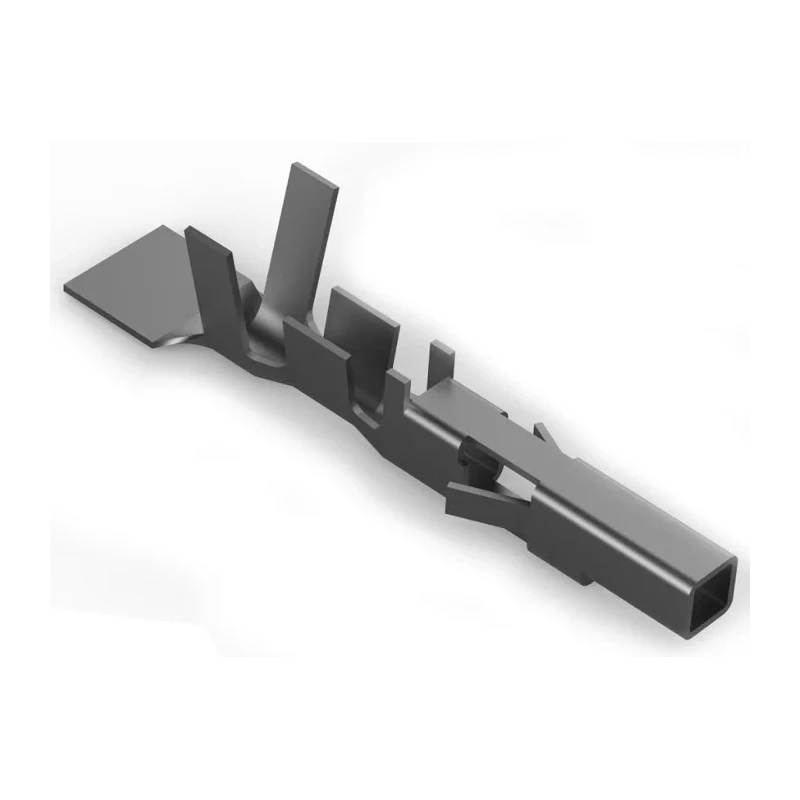

TE Connectivity 794956-1 VAL-U-LOK Series Female Crimp Terminal is engineered to provide durable, efficient electrical connections in electronic and industrial applications. This terminal supports wire gauges from 22 AWG to 18 AWG (0.3 mm² to 0.8 mm²), making it suitable for a range of wiring requirements.
Constructed with high-quality brass contact material, the terminal ensures excellent conductivity and mechanical strength. The tin plating on the contact surfaces protects against oxidation and corrosion, enhancing the lifespan of the connection. The terminal is designed for secure use with VAL-U-LOK connector housings, providing stable and reliable assemblies.
Rated for a maximum current load of 3 amps, this female crimp terminal supports low and medium current electrical circuits commonly found in automotive, telecommunications, industrial control, and consumer electronics.
The crimp termination type offers a solid mechanical bond with wires, ensuring resistance to vibration and environmental stress. Operating temperature ranges from -40°C to 105°C, allowing reliable performance in various industrial and field conditions.
The maximum contact resistance is only 10 milliohms, indicating minimal voltage drop and signal degradation, crucial for sensitive electronic assemblies. Durable brass construction ensures lasting conductivity. Tin plating protects against corrosion.
Designed for 22 to 18 AWG wire sizes. Compatible with VAL-U-LOK connector housings. Supports currents up to 3 amps. Wide operating temperature range of -40°C to 105°C. Crimp termination type for secure mechanical and electrical connection.
Low maximum contact resistance of 10 milliohms.
This product is widely used in electronic components for industrial, communication, automotive, and manufacturing sectors. It is ideal for assembly lines requiring reliable female crimp connectors for wire-to-wire or wire-to-board applications.
Explore more in the Electronics Components category on EnvMart for compatible connectors and accessories to build efficient and durable circuits.
