XP Power 4-Pin Power DIN AC/DC Adapter IEC 320 C8 85W 12V DC Output 6.67A ALM85US12C2-8

Free Delivery in India | Lowest Global Shipping Charges

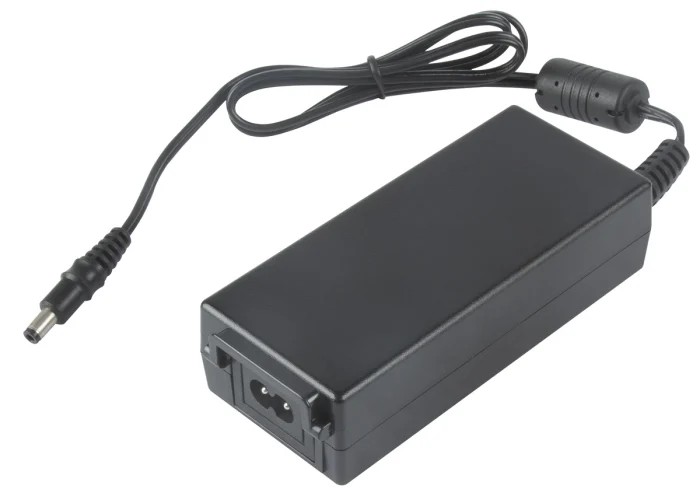

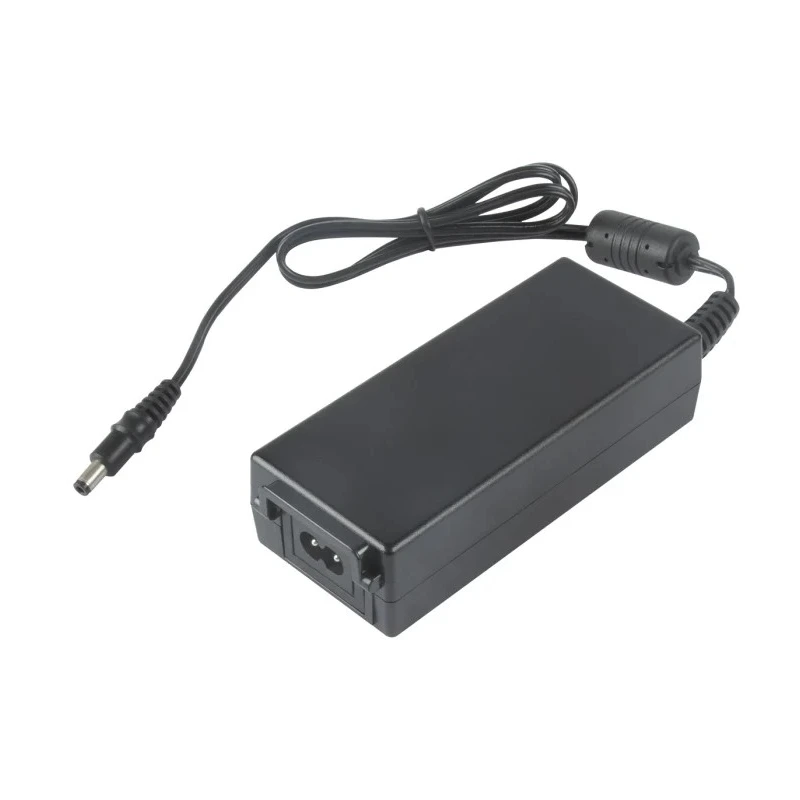

XP Power 4-Pin Power DIN AC/DC Adapter IEC 320 C8 85W 12V DC Output 6.67A ALM85US12C2-8

Name: XP Power 4-Pin Power DIN AC/DC Adapter IEC 320 C8 85W 12V DC Output 6.67A ALM85US12C2-8
Brand: XP Power
SKU: 144235



Category AC/DC Adapter Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	85W
Efficiency	88%
Length	139.4mm
Model	ALM85US12C2-8
Depth	37mm
Cable Length	900mm
Width	62mm
Series	ALM85
Maximum Operating Temperature	60°C
Sub Type	Power Adapter
Load Regulation	±5 %
Minimum Operating Temperature	0°C
Plug Type	IEC 320 C8
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	12V dc
Standards/Approvals	UL 60950-1, CE, CB, EN 60950-1
Minimum Input Voltage	85V ac
Output Connector Type	4-Pin Power DIN
Input Connector Type	C8
Adapter Current	6.67A
Energy Efficiency Level	VI

Key Features

High efficiency of 88% supports energy savings in applications.
Compact dimensions measuring 139.4mm length, 62mm width, and 37mm depth.
Operating temperature range from 0°C to 60°C ensures stable use in varied environments.
Equipped with IEC 320 C8 input and 4-pin power DIN output connector.
Complies with UL 60950-1, CE, CB, and EN 60950-1 safety standards.
Features IP32 rated fully sealed enclosure suitable for medical and IT applications.
Designed to meet Energy Efficiency Level VI and EU CoC Tier 2 standards.
Low standby power consumption below 0.15 W reduces power wastage.

Product Description

XP Power ALM85US12C2-8 4-Pin Power DIN AC/DC Adapter delivers a robust 85W power supply with 12V DC output current of 6.67A, engineered for medical and IT environments requiring reliable external power supplies.

This model features a compact sealed enclosure rated to IP32, designed to withstand clinical settings with easy-to-clean smooth surfaces. Operating temperatures range from 0°C to 60°C, ensuring versatile usage.

The adapter is equipped with an IEC 320 C8 input connector and a 4-pin power DIN output connector, with a cable length of 900mm for flexible connections. It supports input voltage from 85V AC to a maximum of 264V AC, with load regulation of ±5% for stable output performance.

Its high efficiency of 88% enables energy savings and compliance with Energy Efficiency Level VI, alongside EU CoC Tier 2 certification. The power supply adheres to multiple international safety standards including UL 60950-1, CE, CB, and EN 60950-1, making it suitable for industrial, medical, laboratory, and IT applications.

The ALM85 series supports low earth leakage current, Class I and Class II configurations, and features a durable switch mode design backed by a 3-year warranty. High efficiency of 88% supports energy savings in applications.

Compact dimensions measuring 139.4mm length, 62mm width, and 37mm depth. Operating temperature range from 0°C to 60°C ensures stable use in varied environments. Equipped with IEC 320 C8 input and 4-pin power DIN output connector.

Complies with UL 60950-1, CE, CB, and EN 60950-1 safety standards. Features IP32 rated fully sealed enclosure suitable for medical and IT applications. Designed to meet Energy Efficiency Level VI and EU CoC Tier 2 standards.

Low standby power consumption below 0.15 W reduces power wastage. Single output with C8 type input connector and 900mm cable length for easy installation.

This AC/DC Adapter is ideal for industrial equipment, medical instruments, IT hardware, laboratory devices, and commercial electronics requiring stable and efficient power delivery.
