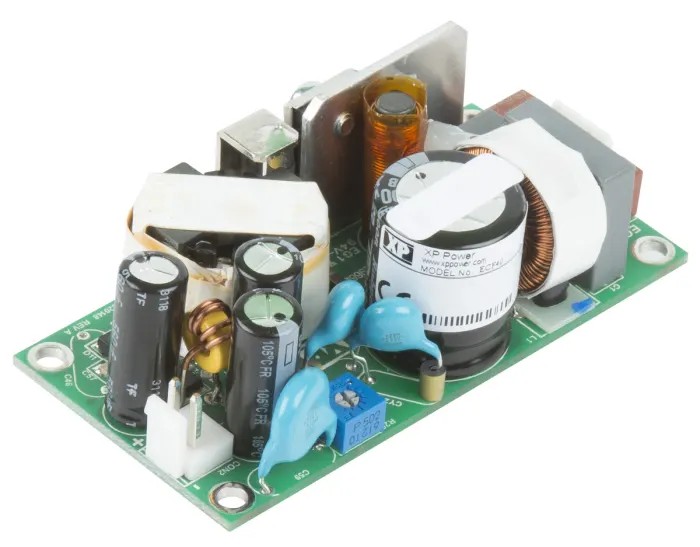

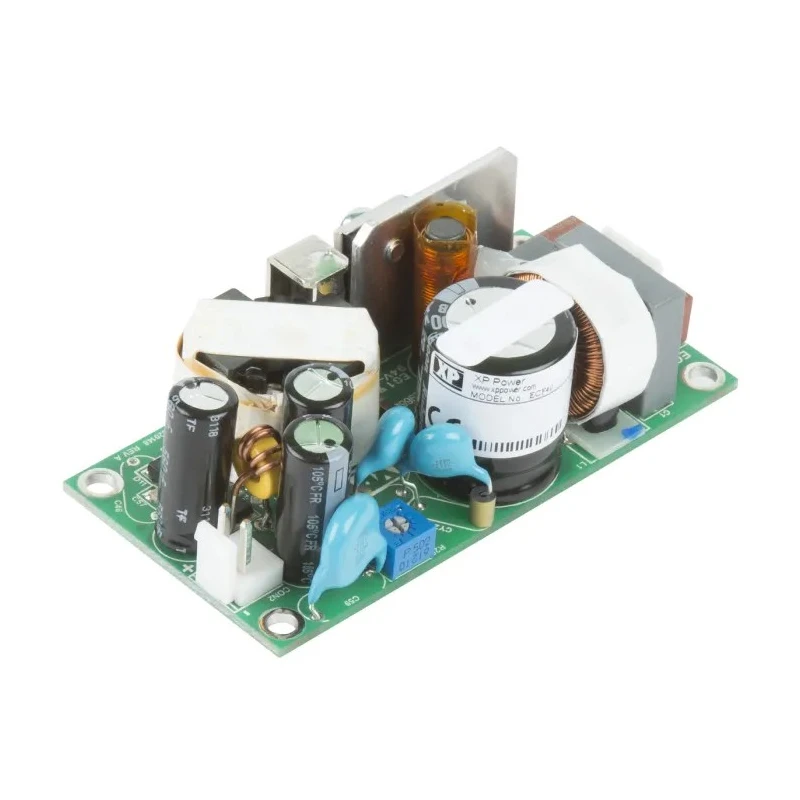

XP Power Switching Power Supply 36V DC 40W 264V AC ECF40US36

XP Power ECF40US36 is a high-efficiency switching power supply designed to provide a reliable 36V DC output at 40W power. It is constructed with a chassis mount type featuring a low profile of 1.1 inches height and compact dimensions of 76.2 mm length, 38.1 mm width, and 28.14 mm depth.

The power supply operates across a broad AC input voltage range from 80V to 264V, allowing for flexible deployment in various electrical environments. It achieves a 90% efficiency rating, significantly reducing energy waste and thermal output, while convection cooling removes the need for active cooling components, enhancing reliability.

Specifically designed to meet medical and Information Technology Equipment (ITE) standards, the ECF40US36 features dual AC line fuses and low leakage current, critical for safety and compliance in sensitive applications. Its operating temperature spans from -40°C to 70°C, making it suitable for industrial, laboratory, medical, and general electronic applications.

Weighing just 69 grams, it offers a lightweight power solution without sacrificing performance or durability. The device also benefits from a high power density and minimal no load power consumption of less than 0.15W, contributing to energy savings and environmental compliance.

Maximum output voltage of 36 volts DC for stable power delivery. Single output configuration suitable for versatile use. Designed with a low profile of 1.1 inches height and compact footprint. Operates efficiently over a wide input voltage range of 80V to 264V AC.

High efficiency of 90% to reduce power loss and heat generation. Convection cooled with no load input power less than 0.15W. Medical and ITE approved design ensures safety for sensitive equipment. Operating temperature ranges from -40°C to 70°C for broad environmental compatibility.

Lightweight at approximately 69 grams, easing installation demands. Includes two AC line fuses to provide protection and reliability.

This power supply is ideal for industrial, laboratory, medical instrumentation, and electronic equipment requiring a dependable 36V DC power source. Its compact form factor and safety approvals make it especially suitable for applications with stringent regulatory requirements.
