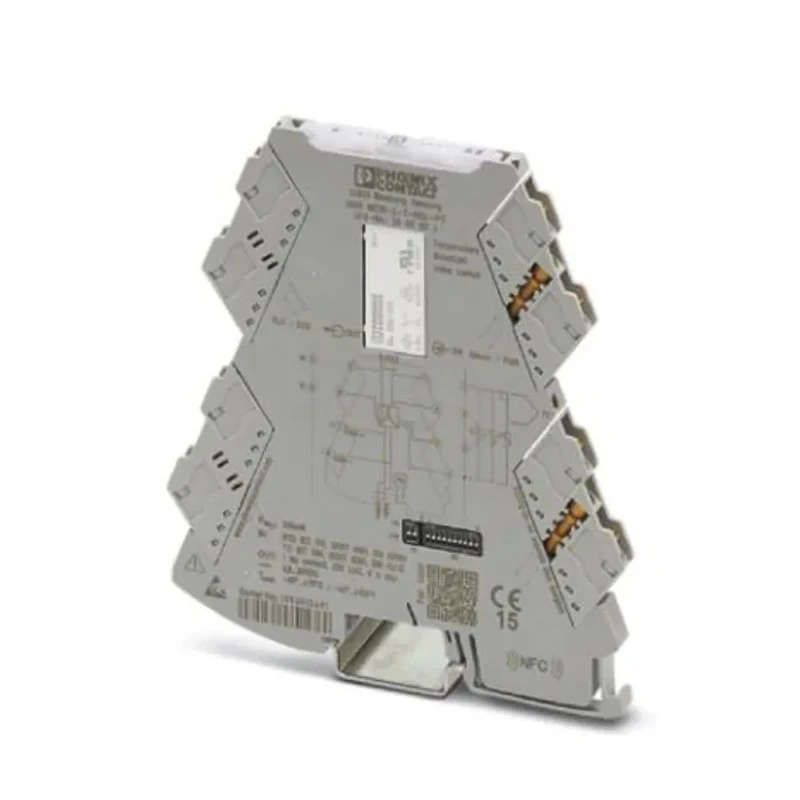

Phoenix Contact MINI MCR Series Signal Conditioner, Thermocouple RTD Input, Relay Output, 24V dc Supply, ATEX 2905633

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MINI MCR Series Signal Conditioner, Thermocouple RTD Input, Relay Output, 24V dc Supply, ATEX 2905633

Name: Phoenix Contact MINI MCR Series Signal Conditioner, Thermocouple RTD Input, Relay Output, 24V dc Supply, ATEX 2905633
Brand: PHOENIX CONTACT
SKU: 144166
Price: 270.95 USD
Availability: InStock



Category Signal Conditioners Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Brand	Phoenix Contact
Model	2905633
IP Rating	IP20
Mount Type	DIN Rail
Series	MINI MCR
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Push-in
Number Of Channels	1
Output Range	100 mA → 6 A, 240 V dc, 250 V ac
Input Range	0 → 4000 Ω
Supply Voltage	24V dc
Hazardous Area Certification	ATEX
Input Signal Type	Thermocouple, RTD
Standards/Approvals	IEC 61010-1, GL, EN 61000-6-2, UL 508 Listed, CE-, ATEX II 3 G Ex nA nC IIC T4 Gc X, EN 61000-6-4
Output Signal Type	Relay

Key Features

Supports input signals from thermocouples and RTD sensors for accurate measurement.
Relay output provides switching capabilities for control systems.
Operates reliably within a temperature range from -40°C to 70°C.
Compact design with DIN rail mount for easy installation.
Equipped with push-in terminal connection and IP20 rating for protection.
Complies with IEC 61010-1, UL 508, CE, and ATEX certifications for hazardous environments.
Features adjustable limit values with potentiometer and diagnostic LEDs for status monitoring.
Provides 3-way isolation ensuring signal integrity and safety.

Product Description

Phoenix Contact 2905633 MINI MCR Series Signal Conditioner offers precise conditioning of thermocouple and RTD input signals. Its relay output supports switching tasks in automation and control systems, powered by a 24V dc supply suitable for industrial environments.

This signal conditioner is designed for demanding applications including hazardous areas, certified under ATEX. The compact device mounts easily on DIN rails and features push-in terminals to facilitate fast connections.

Its operating temperature range spans -40°C to 70°C, making it suitable for various industrial settings. The device ensures safety and signal isolation through three-way isolation and provides clear operational feedback via two diagnostic LEDs.

The MINI MCR series includes adjustable limit value functions with hysteresis and delay time, configurable using a front potentiometer. This allows precise switching thresholds and adaptability to process conditions.

Thermocouple and RTD input signal compatibility. Relay output supports switching up to 6 A and 240 V dc or 250 V ac. Compact DIN rail mount with push-in terminal type. Wide operating temperature range from -40°C to 70°C.

Three-way galvanic isolation ensures safety and signal integrity. Diagnostic LEDs provide status and error indication. Certified to IEC 61010-1, UL 508, CE, and ATEX for hazardous areas. Adjustable limit value with hysteresis and delay time.

Manufactured in Germany to high quality standards.

This signal conditioner is ideal for industrial automation, process control, HVAC, and safety applications requiring reliable input signal conditioning and output switching. Its robust certifications make it suitable for use in potentially explosive atmospheres.
