KNITTER-SWITCH PCB Slide Switch SPDT Latching 50mA Gold over Nickel Plated Phosphor Bronze ASL 1D

Free Delivery in India | Lowest Global Shipping Charges

KNITTER-SWITCH PCB Slide Switch SPDT Latching 50mA Gold over Nickel Plated Phosphor Bronze ASL 1D

Name: KNITTER-SWITCH PCB Slide Switch SPDT Latching 50mA Gold over Nickel Plated Phosphor Bronze ASL 1D
Brand: KNITTER-SWITCH
SKU: 143953
Price: 8.39 USD
Availability: InStock



Category PCB Slide Switch Brand KNITTER-SWITCH Condition New

Specifications

Country of Origin	China
Brand	KNITTER-SWITCH
Length	9.5mm
Model	ASL 1D
Depth	12.3mm
Width	5mm
Mount Type	PCB
Series	ASL
Maximum Operating Temperature	80°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-20°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Latching
Contact DC Voltage	48V dc
Switch Contact Current	50mA
Mechanical Life	60000Operations
Actuator Material	Gold over Nickel Plated Phosphor Bronze
RS PRO PCB Slide Switch SPDT Latching 400mA NylonBrand	RS PRO
DPDT/PCB mount slide switchBrand	KNITTER-SWITCH

Key Features

Features a Single Pole Double Throw (SPDT) contact configuration for versatile circuit switching.
PCB mount type with solder terminal connection ensuring secure mounting.
Latching switch operation with On-On switch configuration suitable for precise control.
Rated for a maximum contact DC voltage of 48V DC.

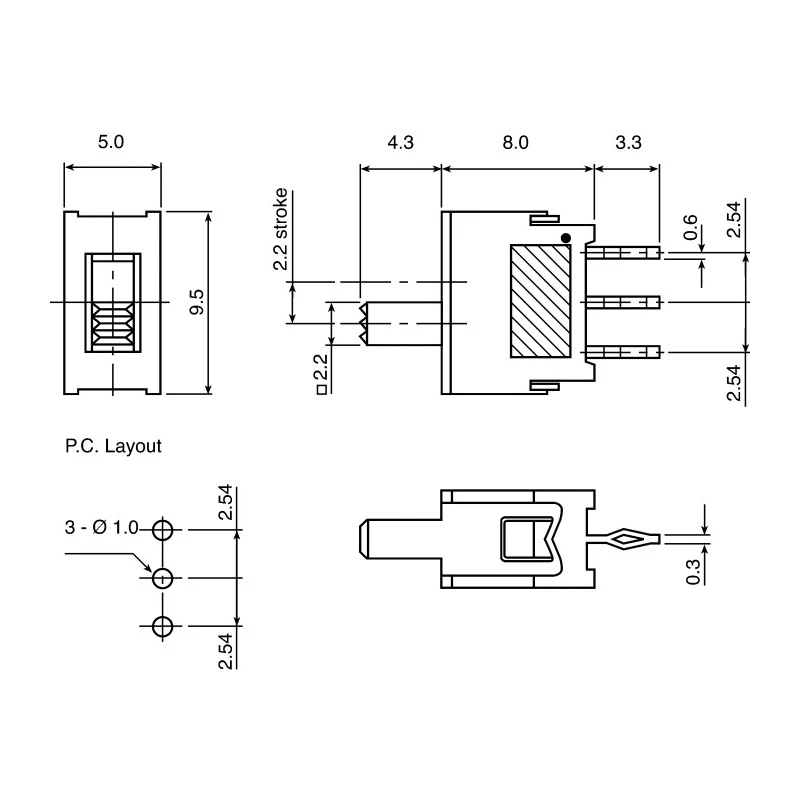

Compact dimensions measuring 9.5mm length, 12.3mm depth, and 5mm width.
High mechanical life rated up to 60,000 operations for extended durability.
Operates reliably within -20°C to 80°C temperature range.
Complies with RoHS standards ensuring environmental safety.

Product Description

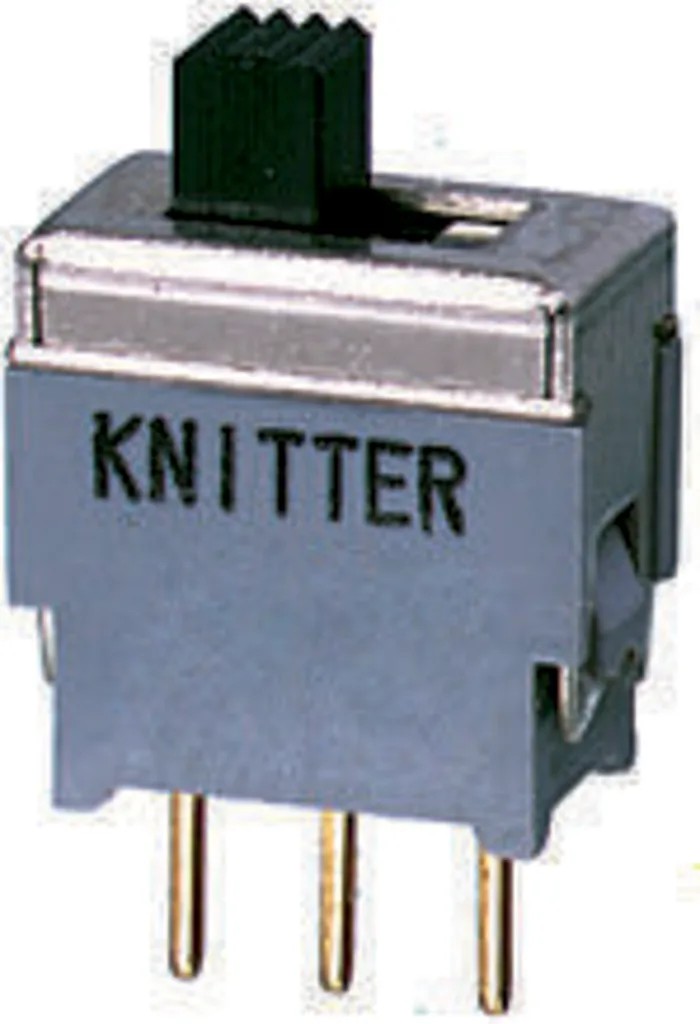

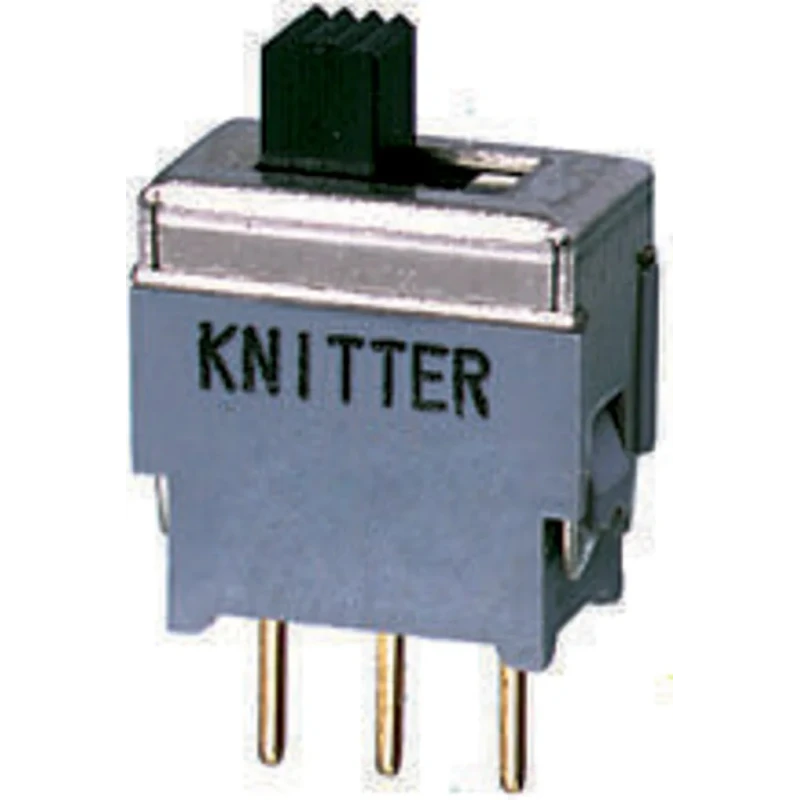

KNITTER-SWITCH ASL 1D is a micro miniature PCB slide switch designed for precise and reliable switching functionality. Manufactured using gold over nickel plated phosphor bronze actuator material, it ensures durability and optimal conductivity. This model features a Single Pole Double Throw (SPDT) contact configuration and latching switch operation, enabling stable selection between two circuits with On-On switching.

Its compact size with dimensions of 9.5mm length, 12.3mm depth, and 5mm width makes it ideal for space-constrained electronic assemblies. Designed for PCB mounting with solder terminals, it provides secure and stable installation on printed circuit boards.

The switch supports a contact current of 50mA and is rated for maximum DC voltage of 48V, making it suitable for low-power signal switching applications in automation, control panels, and electronic devices. The mechanical life of up to 60,000 operations assures long-term reliability in industrial and commercial settings.

Operating temperature range from -20°C to 80°C ensures it can perform reliably under various environmental conditions. The switch complies with RoHS environmental directives, guaranteeing it is free from hazardous substances.

Single Pole Double Throw (SPDT) contact configuration provides versatile switching options. PCB mounting with solder terminal type for firm electrical connection. Latching On-On switch operation allows stable circuit selection.

Compact dimensions fit tightly in electronic assemblies. High mechanical endurance with 60,000 operations lifespan. Temperature range from -20°C to 80°C ensures application flexibility. Gold over nickel plated phosphor bronze actuator material improves durability and contact quality.

Non-illuminated design simplifies installation in circuits without indicator requirements. RoHS compliant for safe environmental use.

This KNITTER-SWITCH ASL 1D PCB Slide Switch is suitable for use in industrial automation, control systems, instrumentation, and other electronic applications requiring precise switching mechanisms. Browse EnvMart for a broad range of reliable switches and electrical components from trusted brands.
