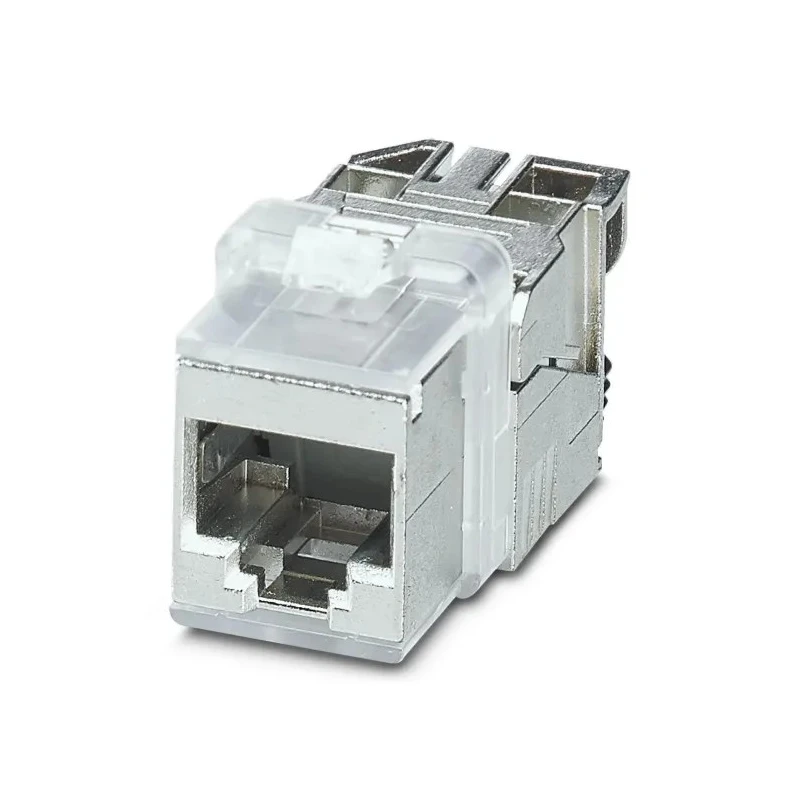

Phoenix Contact CUC Series RJ45 Connector Female Panel Mount Cat6a Shielded Straight 1 Port 8 Way RJ45

Phoenix Contact RJ45 RJ45 Connector Female Panel Mount Cat6a Shielded Straight 1 Port 8 Way is designed for reliable and high-performance Ethernet connectivity in industrial, commercial, and networking applications.

This Cat6a rated connector supports data transmission speeds up to 10 Gbit/s, ideal for modern high-speed network infrastructure. The robust diecast zinc housing provides durable protection, achieving an IP20 ingress protection rating, suitable for panel-mount interfaces.

The connector features an 8-position configuration with female gender and a straight orientation tailored for precise and secure connection. Termination is accomplished using IDC methods compatible with wire gauges from 26 AWG to 22 AWG, enhancing ease of installation and maintaining signal integrity.

With an operating temperature range of -25°C to 70°C, this component is suitable for varied environmental conditions. The contacts made from copper alloy and plated with gold over nickel ensure excellent conductivity and resistance to corrosion, thereby extending service life in demanding applications.

The compact form factor with dimensions of 17.9 mm length, 34.9 mm width, and 22.4 mm depth allows flexible use in constrained spaces, common in electronic and industrial panels.

Typical applications include industrial networking, telecommunications systems, commercial Ethernet installations, and structured cabling where reliable Cat6a connectors are required.

This product is manufactured in Poland and aligns with international quality standards, ensuring dependable performance. Supports Cat6a LAN category providing high-speed 10 Gbit/s data transmission. Features a robust diecast zinc housing with IP20 ingress protection.

Connector gender is female with an 8-way, 1 port configuration. Panel mount type with shielded and straight connector orientation for secure interfacing. Termination via IDC suitable for 26 AWG to 22 AWG solid or stranded wires.

Operating temperature range from -25°C to 70°C ensuring durability in various environments. Contact material is copper alloy with gold over nickel plating for enhanced conductivity and corrosion resistance. Compact dimensions: Length 17.9 mm, Width 34.9 mm, Depth 22.4 mm.
