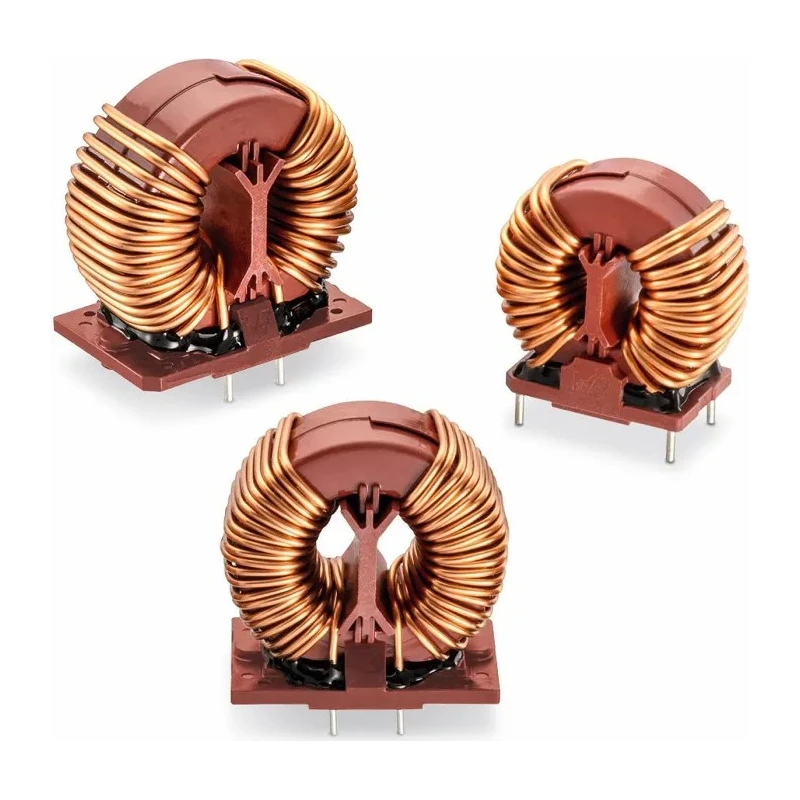

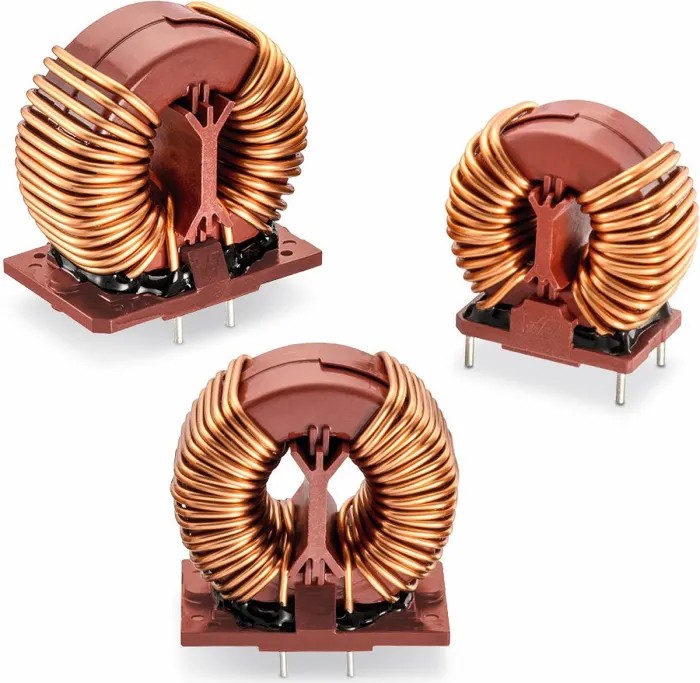

Wurth Elektronik Common Mode Choke 1.6 mH 16.4 A 8.5 mΩ 760V AC Through Hole 744831016164
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 44.5mm |
| Length | 46.5mm |
| Depth | 28mm |
| Packaging | Tray & Carton |
| Mount Type | Through Hole |
| Series | WE-CMBHV |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 10kHz |
| Inductance | 1.6mH |
| Standards/Approvals | REACH, RoHS |
| Maximum DC Current | 16.4A |
| Maximum DC Resistance | 8.5mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder Pad |
| Choke Voltage | 760V ac |
Key Features
- High permeability MnZn core construction ensures effective EMI suppression.
- Designed for mains applications with through-hole mounting style.
- Offers a wide operating temperature range from -40°C to 125°C.
- Constructed with plastic case and thicker separator increasing insulation and voltage endurance.
- Inductance tolerance of ±30% accommodates variable electrical conditions.
- Complies with REACH and RoHS environmental standards.
- Measures 46.5mm in length, 44.5mm in height, and 28mm in depth.
- Termination style includes solder pads suitable for reliable PCB mounting.
Product Description
Wurth Elektronik 744831016164 is a high-performance common mode choke with an inductance of 1.6 mH and a maximum DC current rating of 16.4 A. This choke features a robust MnZn core designed for power electronics applications, offering efficient suppression of common mode noise and interference.
The WE-CMB HV series classification reflects enhanced voltage handling capabilities, with a choke voltage rating of 760 V AC. Constructed with a plastic case and thicker separator, it provides improved insulation and greater clearance distances compared to standard models.
This component supports a test frequency of 10 kHz and maintains stable operation across a wide temperature range from -40°C to 125°C, making it suitable for demanding industrial and commercial environments.
The compact through-hole mounting and solder pad termination style ensure reliable electrical connection and mechanical stability for printed circuit board integration.
Typical applications include power line input/output filtering, motor noise suppression, power electronics filtering, and radio interference reduction in industrial machinery and equipment.
High permeability MnZn core construction ensures effective EMI suppression. Designed for mains applications with through-hole mounting style. Offers a wide operating temperature range from -40°C to 125°C. Constructed with plastic case and thicker separator increasing insulation and voltage endurance.
Inductance tolerance of ±30% accommodates variable electrical conditions. Complies with REACH and RoHS environmental standards. Measures 46.5mm in length, 44.5mm in height, and 28mm in depth. Termination style includes solder pads suitable for reliable PCB mounting.
Packaged in tray and carton for protection and ease of handling. Applicable industries include industrial manufacturing, power electronics, HVAC control systems, telecommunications, and automotive electronics. Explore the full range of Wurth Elektronik components on EnvMart for reliable EMI filtration and power line noise suppression solutions.
Explore more products in our EMI Filters & Protection category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 1.6 mH.
It has a maximum DC current rating of 16.4 A.
The choke voltage rating is 760 V AC.
This model measures 46.5 mm in length, 44.5 mm in height, and 28 mm in depth.
The operating temperature range is from -40°C to 125°C.
It is designed for through-hole mounting.
The termination style includes solder pads suitable for reliable PCB mounting.
The inductance tolerance is ±30%.
It features a high permeability MnZn core and is constructed with a plastic case and thicker separator.
It complies with REACH and RoHS environmental standards.
Typical applications include power line input/output filtering, motor noise suppression, and radio interference reduction.
The maximum DC resistance is 8.5 mΩ.
