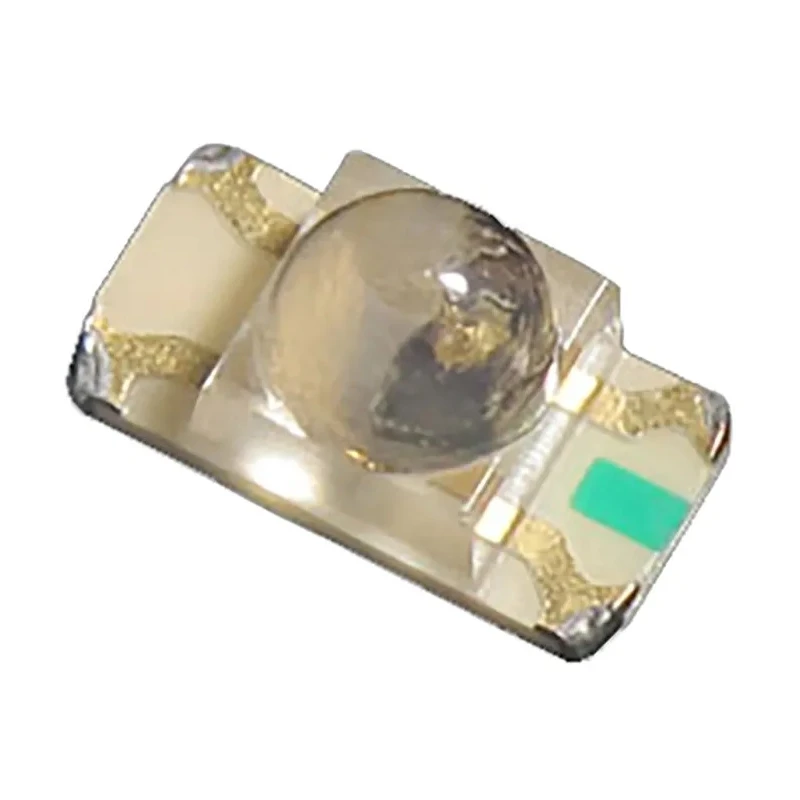

Kingbright 4.1 V Green, Red LED 3216 Surface Multi-Colour LED KPTBD-3216SURKZGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Height | 1.8 mm |
| Model | KPTBD-3216SURKZGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Multi-Colour LED |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 30 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Green, Red |
| Dominant Wavelength | 525, 630nm |
| Forward Voltage | 4.1V |
| Number of Pins | 4 |
| LED Luminosity | 600 mcd, 1000 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3.2 x 1.6 x 1.8 mm |
| Lens Shape | Dome |
Key Features
- The LED package has a compact 3.2 x 1.6 x 1.8 mm dome lens design.
- It supports a maximum forward current of 30 mA with a forward voltage of 4.1 V.
- The LED emits at dominant wavelengths of 525 nm (green) and 630 nm (red) with brightness levels of 600 mcd and 1000 mcd respectively.
- This component is RoHS compliant, ensuring environmental safety.
- It comes shipped on a tape and reel packaging suitable for automated insertion.
- Ideal for backlight and indicator applications in electronics.
- Has a viewing angle of 30 degrees allowing focused light emission.
- Features 4 pins and contains two LEDs providing multi-colour functionality.
Product Description
Kingbright KPTBD-3216SURKZGC is a high-quality multi-colour LED featuring green and red LEDs in a compact 3216 (1206) surface mount package with a domed clear lens measuring 3.2 x 1.6 x 1.8 mm and a height of 1.8 mm. It operates at a forward voltage of 4.1 V with a maximum forward current rating of 30 mA and dissipates up to 75 mW power, making it energy efficient.
This LED provides bright illumination with dominant wavelengths of 525 nm for green light and 630 nm for red light, emitting luminosities of 600 mcd and 1000 mcd respectively. It has a focused viewing angle of 30 degrees, suitable for precise indicator or backlighting tasks in electronic circuits.
The component is RoHS compliant, ensuring compliance with environmental safety standards. It is supplied in tape and reel packaging format to support efficient, automated PCB assembly processes.
Compact 3216 package with dome lens for durability. Dual LEDs support green and red light application. Low power consumption with 75 mW maximum dissipation. Suitable for industrial, electronic, and display applications. Easy surface mount installation with 4 pins.
Covers indicator, backlighting, and signaling use cases.
Manufactured in China, Kingbright's KPTBD-3216SURKZGC LEDs are designed for reliability and performance in various electronic devices. This product is ideal for engineers and designers seeking efficient multi-colour lighting components for compact applications.
Explore more high-quality LEDs and electronic components in the EnvMart catalogue for diverse industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 30 mA.
The dominant wavelength for the green LED is 525 nm, while for the red LED it is 630 nm.
This LED operates at a forward voltage of 4.1 V.
The green LED has a luminosity of 600 mcd, and the red LED has a luminosity of 1000 mcd.
The viewing angle of this model is 30 degrees.
It is supplied in tape and reel packaging, suitable for automated insertion.
The lens dimensions are 3.2 x 1.6 x 1.8 mm.
This model contains two LEDs, providing multi-colour functionality.
The maximum power dissipation for this LED is 75 mW.
Yes, this LED is RoHS compliant, ensuring it meets environmental safety standards.
This model supports surface mounting with 4 pins.
It is ideal for backlighting and indicator applications in electronic circuits.
