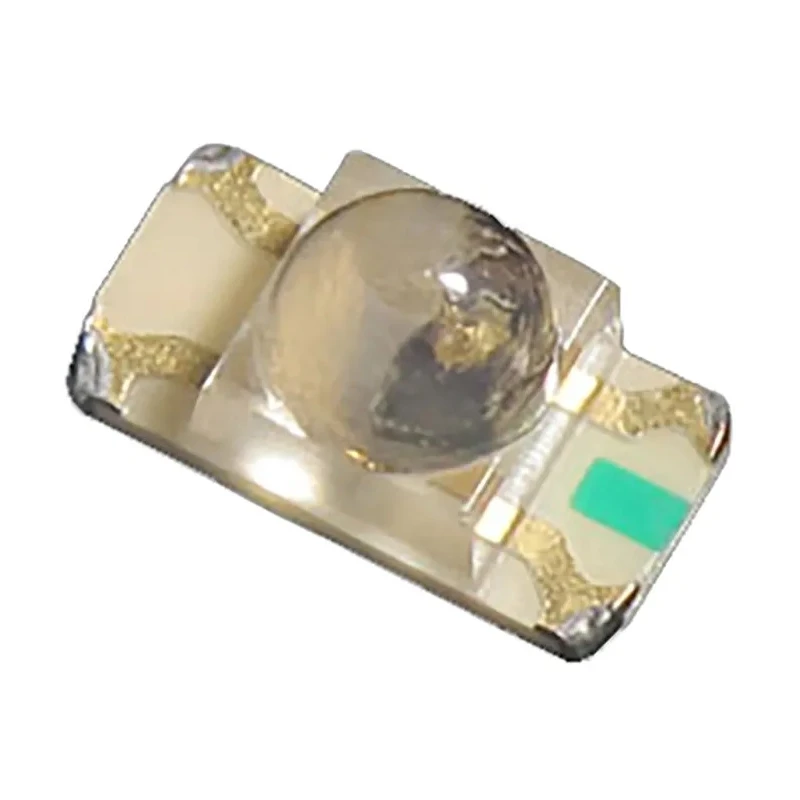

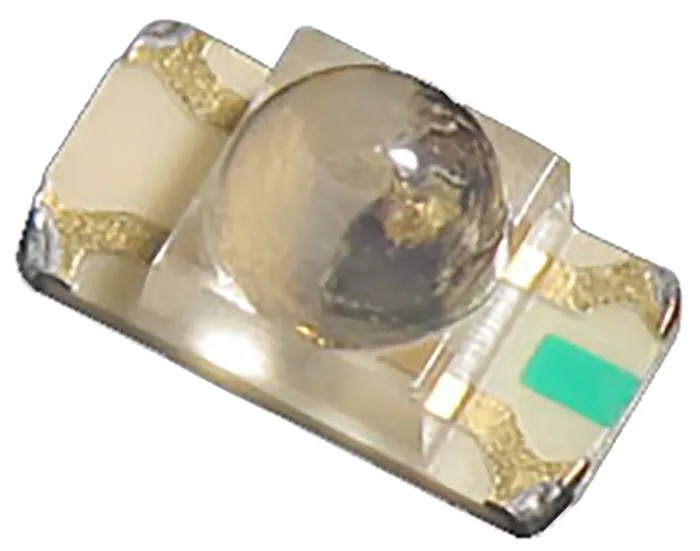

Kingbright 2.5 V Red, Green Multi-Colour Surface Mount LED 3216 Package KPTBD-3216SURKCGKC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Height | 1.8 mm |
| Model | KPTBD-3216SURKCGKC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Multi-Colour LED |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 30 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Red, Green |
| Dominant Wavelength | 570, 630nm |
| Forward Voltage | 2.5V |
| Number of Pins | 4 |
| LED Luminosity | 250 mcd, 400 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3.2 x 1.6 x 1.8 mm |
| Lens Shape | Dome |
Key Features
- This LED package contains 2 LEDs with red and green colours.
- It supports a maximum forward current of 30 mA for reliable performance.
- The maximum power dissipation is 75 mW, ensuring low power consumption.
- The dome-shaped lens provides a viewing angle of 30 degrees for clear visibility.
- The compact 3216 package dimensions are 3.2 x 1.6 x 1.8 mm, suitable for space-constrained designs.
- The LED has a forward voltage of 2.5 V for efficient operation.
- The LED luminosity ranges 250 mcd to 400 mcd, providing bright indication.
- This surface mount LED is supplied on tape and reel for automated assembly.
Product Description
Kingbright KPTBD-3216SURKCGKC is a high-quality, surface mount multi-colour LED designed for electronic components applications. This LED integrates both red and green LEDs in a compact 3216 (1206) SMT package measuring 3.2 x 1.6 x 1.8 mm with a height of 1.8 mm, featuring a dome-shaped clear lens. Operating at a forward voltage of 2.5 V with a maximum forward current of 30 mA and power dissipation up to 75 mW, it offers bright and efficient visual indication with luminosity between 250 mcd and 400 mcd. The LEDs emit light at dominant wavelengths of 570 nm (green) and 630 nm (red) and have a viewing angle of 30 degrees, suitable for indicator and backlight applications where precise and distinct colour emission is required.
These LEDs come supplied on tape and reel allowing for seamless integration into automated manufacturing processes, improving production efficiency. The product is RoHS compliant ensuring it meets environmental standards, making it reliable for industrial, commercial, and consumer electronics use. Its robust surface mount design and clear lens finish enhance durability and light output clarity. Common applications include visual indicators on control panels, electronic devices, instrumentation, and other assemblies requiring colour signals and status indication.
Kingbright's proven quality standards and multi-colour LED versatility extend its usage to various sectors such as laboratory equipment, HVAC systems, automotive interior lighting (non-automotive standard), manufacturing equipment indicators, and electronic displays.
This LED package contains 2 LEDs with red and green colours. Maximum forward current of 30 mA for stable operation. Maximum power dissipation of 75 mW for low energy consumption. Dome-shaped clear lens with a 30° viewing angle.
Compact SMT 3216 package with dimensions 3.2 x 1.6 x 1.8 mm. Forward voltage rating of 2.5 V ensuring efficient driving. LED luminosity varies between 250 and 400 mcd for strong indication. Supplied on tape and reel for automated assembly processes.
RoHS compliant and manufactured in China. Explore more LED products and components for your electronic assembly needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 30 mA, ensuring stable operation during use.
The dimensions of the 3216 package are 3.2 mm x 1.6 mm x 1.8 mm, making it suitable for space-constrained designs.
The forward voltage rating of this model is 2.5 V, which ensures efficient operation.
The LED luminosity ranges from 250 mcd to 400 mcd, providing bright indication for various applications.
The dome-shaped lens provides a viewing angle of 30 degrees for clear visibility.
This LED is supplied on tape and reel, allowing for seamless integration into automated assembly processes.
This package contains two LEDs that emit red and green colors, suitable for various indicator applications.
The dominant wavelength for the green LED is 570 nm, while the red LED has a dominant wavelength of 630 nm.
The maximum power dissipation for this LED is 75 mW, ensuring low energy consumption.
Yes, this LED is RoHS compliant, meeting environmental standards for various applications.
This model uses a surface mount design, which is suitable for compact electronic assemblies.
This package contains 2 LEDs, providing both red and green color options in a single unit.
