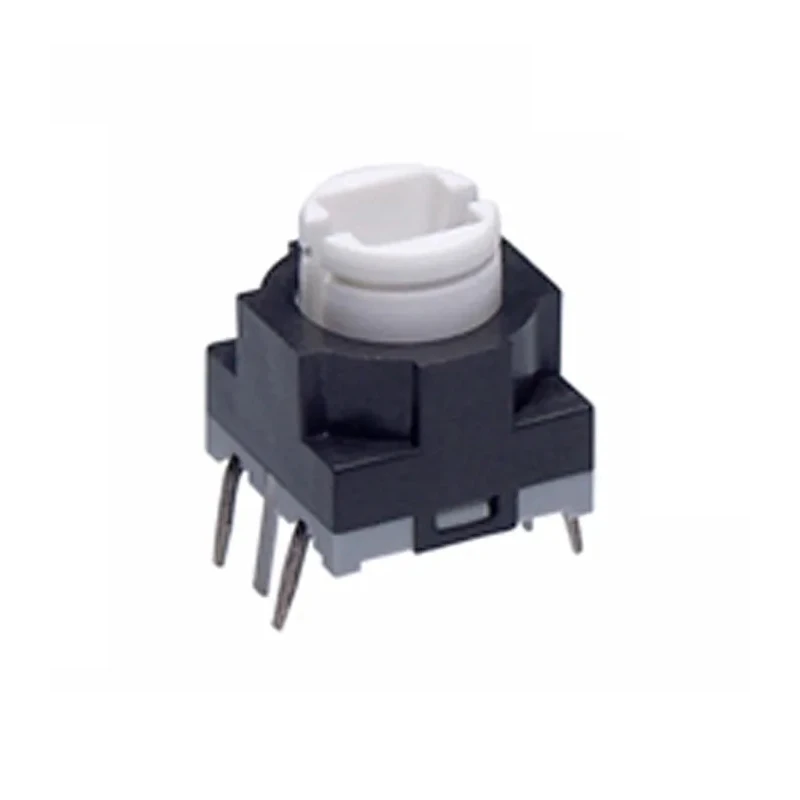

NKK Switches Tactile Switch Extended 3.3 mm SPST 125mA 24V DC PCB JB15HBPE

Free Delivery in India | Lowest Global Shipping Charges

NKK Switches Tactile Switch Extended 3.3 mm SPST 125mA 24V DC PCB JB15HBPE

Name: NKK Switches Tactile Switch Extended 3.3 mm SPST 125mA 24V DC PCB JB15HBPE
Brand: NKK Switches
SKU: 142804
Price: 3.77 USD
Availability: InStock



Category Tactile Switch Brand NKK Switches Condition New

Specifications

Country of Origin	China
Brand	NKK Switches
Height	14.7mm
Length	12.3mm
Model	JB15HBPE
Width	12.3mm
Mount Type	PCB
Series	JB
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-25°C
Terminal type	PC Terminal
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Length	3.3mm
Contact DC Voltage	24V dc
Actuator Style	Extended
Actuator Orientation	Straight
Switch Contact Current	125mA
Operating Force	2.65N
Mechanical Life	500000Cycles

Key Features

Extended 3.3 mm straight actuator for easy operation.
Single Pole Single Throw (SPST) contact configuration.
Contacts rated for 125mA current at 24 V DC voltage.
Designed for PCB mounting with PC terminals.
Operating force is 2.65N ensuring precise tactile feedback.
Mechanical life rated at 500,000 cycles for long durability.
Operating temperature range from -25°C to 70°C.
Constructed with rubber seal for contamination resistance.

Product Description

NKK Switches JB15HBPE tactile switch extended model offers precise momentary (on-off) switch operation with a 3.3 mm straight actuator ideally suited for printed circuit board (PCB) mounting. The switch supports single pole single throw (SPST) configuration, making it suitable for a wide range of electrical and electronic applications.

Designed with a robust rubber seal construction, this tactile switch prevents contact contamination, enabling automated soldering and cleaning processes without compromising reliability.

The tactile switch features a contact current rating of 125mA at 24 V DC and operates efficiently within a temperature range of -25°C to 70°C. Its compact dimensions of 12.3 mm by 12.3 mm by 14.7 mm make it suitable for dense circuit board layouts.

An operating force of 2.65N provides a satisfying tactile response while ensuring long service life, rated up to 500,000 mechanical cycles. The series JB devices incorporate a dome contact and slanted terminals, conforming to a 2.54 mm PCB grid for design flexibility and high reliability.

This switch complies with RoHS directive and UL94V-0 flame retardant standards, making it a compliant choice for industrial, automotive, consumer electronics, and instrumentation use. Its extended actuator style facilitates easier user interaction in compact switch assemblies.

Extended 3.3 mm straight actuator for improved user accessibility. Single Pole Single Throw (SPST) contact configuration supports simple switching functions. Contact rating of 125mA at 24 V DC ensures reliable low current switching.

Rubber seal construction enhances longevity and resistance to contaminant ingress. Compact size suitable for high-density PCB applications. Operating force of 2.65N for precise tactile feedback. Durable mechanical life of 500,000 cycles.

Conforms to RoHS and UL94V-0 standards for safety and environmental compliance.

This NKK tactile switch model JB15HBPE is ideal for electrical, automation, industrial machinery controls, consumer electronics, and laboratory instrumentation. For more tactile switches, explore the Tactile Switch category on EnvMart.
