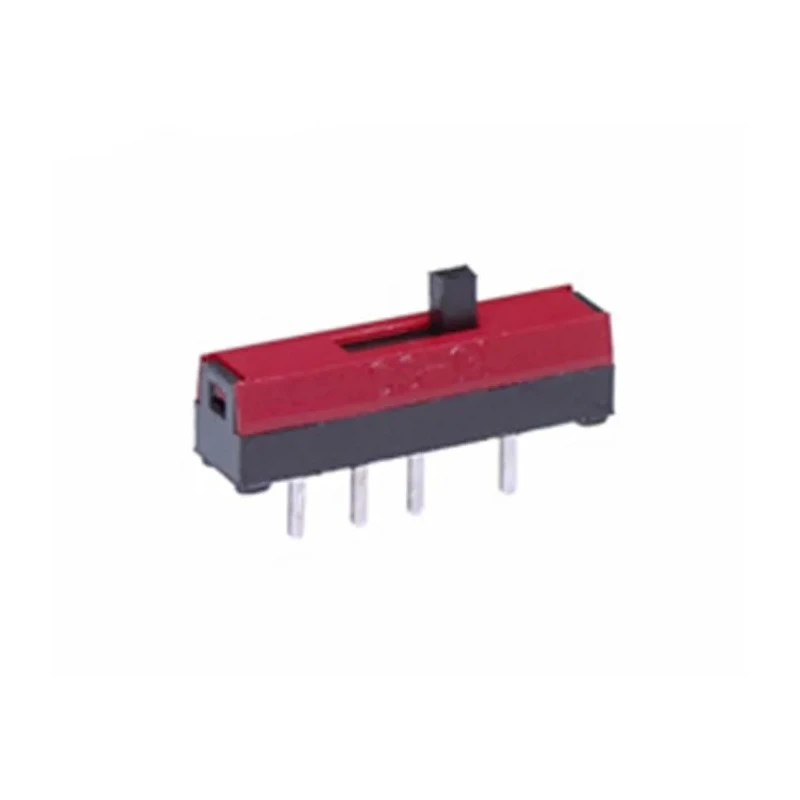

NKK Switches PCB Slide Switch SP3T On-On-On 100mA Polyamide
Specifications
| Country of Origin | China |
|---|---|
| Brand | NKK Switches |
| Length | 15.8mm |
| Model | SP3T |
| Depth | 6.5mm |
| Width | 4mm |
| Mount Type | PCB |
| Series | SS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SP3T |
| Switch Configuration | On-On-On |
| Minimum Operating Temperature | -15°C |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS |
| Switch Operation | On-On-On |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Mechanical Life | 100000Cycles |
| Actuator Material | Polyamide |
Key Features
- Compact dimensions support low profile and high density mounting on PC boards.
- Triple-pole, triple-throw (SP3T) contact configuration with On-On-On switch operation for multiple circuit control.
- Thermoplastic housing with double molded thermoset base enhances durability and component protection.
- Mechanical life rated at 100,000 cycles ensures long-term reliability.
- Designed for use at voltages up to 30V DC and currents up to 100mA.
- Terminal type is solder for secure PCB mounting.
- Operating temperature range from -15°C to +60°C supports diverse environmental conditions.
- STC mechanism provides enhanced contact stability and precise actuation.
Product Description
NKK Switches SS14MDP2 is a PCB slide switch with SP3T contact configuration and On-On-On switch operation designed for low current applications up to 100mA and 30V DC. The switch features a polyamide actuator and thermoplastic housing for robust and lightweight construction.
This ultra miniature slide switch incorporates a precision STC mechanism for enhanced contact stability and reliable operation, suitable for both top or side actuation on printed circuit boards. Its compact dimensions enable low profile and high density mounting and stacking of PC boards in modern electronic manufacturing.
The device has a mechanical life of 100,000 cycles, ensuring extended durability during frequent switching operations. Terminal type is solder, ensuring firm and secure connections on the PCB, suitable for manual or automated soldering processes.
Operating temperature range from -15°C to 60°C allows reliable performance in typical indoor industrial and commercial environments. The switch is compliant with UL and RoHS standards, meeting safety and environmental regulations for electronic components.
This switch is ideal for use in low voltage, low current circuits such as industrial control equipment, electronic instrumentation, automation systems, and precision electronics requiring reliable, repeatable switching functions.
Compact, low profile dimensions enable space-saving PCB designs. Triple-pole, triple-throw capability supports complex circuit configurations. Polyamide actuator ensures durable and reliable mechanical actuation. High mechanical life rating for long operational lifespan.
STC mechanism enhances contact reliability in miniature slide switches. Solder terminals facilitate standard PCB assembly methods. RoHS-compliant and UL-approved for use in regulated markets. Wide temperature operating range supports diverse applications.
Ideal for industrial, laboratory, and commercial electronic equipment. Set contains one NKK SS14MDP2 PCB Slide Switch. Explore more Switches & Sockets in the Electronics & Electricals category on EnvMart for a full range of industrial-grade switching components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a triple-pole, triple-throw (SP3T) contact configuration, allowing for On-On-On switch operation for multiple circuit control.
It is rated for a maximum contact current of 100mA and can operate at voltages up to 30V DC.
The switch has a length of 15.8mm, a width of 4mm, and a depth of 6.5mm, making it suitable for compact PCB designs.
This model uses solder terminals, ensuring secure connections on printed circuit boards.
It has a mechanical life rating of 100,000 cycles, ensuring long-term reliability during frequent switching operations.
The operating temperature range is from -15°C to 60°C, allowing it to perform reliably in diverse environmental conditions.
Yes, it is compliant with UL and RoHS standards, meeting safety and environmental regulations for electronic components.
The actuator is made from polyamide, and the housing is constructed from thermoplastic, providing a robust and lightweight design.
This switch is ideal for low voltage, low current circuits such as industrial control equipment, electronic instrumentation, and automation systems.
The STC mechanism provides enhanced contact stability and precise actuation, improving the reliability of the switch's operation.
This model belongs to the SS series of NKK Switches, which includes various types of switches designed for PCB applications.
Yes, the design of this switch allows for both top and side actuation on printed circuit boards, providing flexibility in installation.
