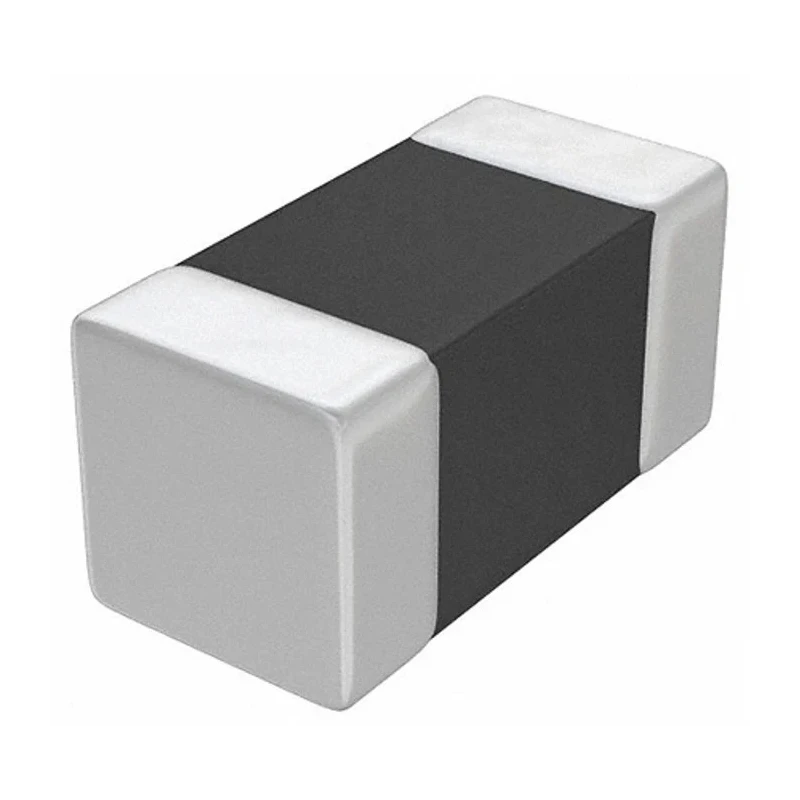

Murata Wirewound Surface Mount Inductor 0.01 μH 300mA Non-Magnetic Ceramic Core Multilayer 1005 LQG15HS10NJ02D

Murata LQG15HS10NJ02D is a high-frequency wirewound surface mount inductor designed with a non-magnetic ceramic core and multilayer construction. It provides an inductance of 0.01 μH with a tolerance of ±5%, optimized for stability and performance in a compact 1005 package size measuring 1mm in length, 0.5mm in height, and 0.5mm in depth.

This inductor supports a maximum DC current of 300mA and features a maximum DC resistance of 260mΩ, enabling efficient current flow with minimal power loss. Its wide operating temperature range from -55°C to 125°C allows reliable operation in various industrial and commercial electronic applications.

The multilayer design offers excellent balance between rated current, size, and inductance tolerance, making it suitable for choke circuits, RF circuit matching, WLAN devices, and mobile communication equipment resonance. The non-magnetic ceramic core further ensures low interference and signal integrity at high frequencies, with a maximum self-resonant frequency of 3400 MHz and a minimum quality factor of 8.

The product is moulded and terminated via solder, facilitating secure and reliable PCB assembly. Packaged on paper tape, it supports automated manufacturing and insertion processes.

Constructed with multilayer technology for reliability and performance. Features a 1005 package size with low DC resistance of 260mΩ. Inductance tolerance is ±5% ensuring precise electrical characteristics. Operates over a wide temperature range from -55°C to 125°C.

Non-magnetic ceramic core material supports stability and low interference. Maximum self-resonant frequency of 3400 MHz suitable for high frequency applications. Termination style is solder for secure PCB mounting. Designed for use in WLAN networks, RF circuit matching, and mobile communication equipment.

Packaging includes paper tape for automated assembly processes.

This Murata surface mount inductor is manufactured in Japan and is ideal for industrial, telecommunications, and electronics manufacturing environments requiring compact and reliable passive components. Explore more high-quality Inductors and passive components in the Electronics Components category on EnvMart.
