| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQG15HS22NJ02D |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQG |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Ceramic |
| Inductance | 0.022μH |
| Package/Case | 1005 |
| Maximum DC Current | 300mA |
| Pin Count | 2 |
| Maximum DC Resistance | 420mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1900MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |

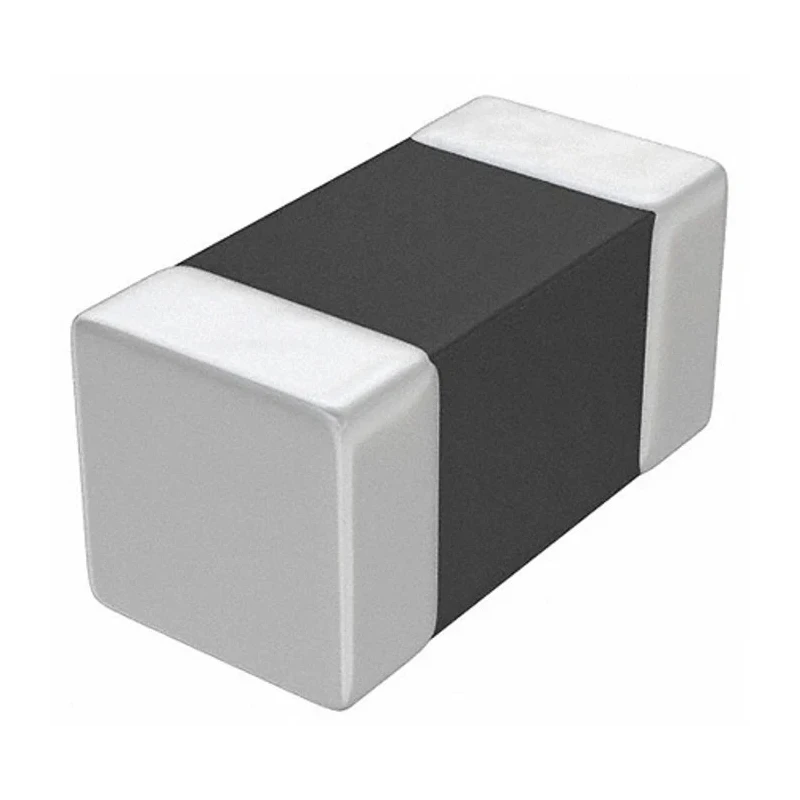

Murata LQG15HS22NJ02D is a wirewound surface mount inductor designed with a non-magnetic ceramic core, delivering an inductance value of 0.022 μH with a tolerance of ±5%. It features a multilayer construction that provides high reliability and excellent performance for industrial and commercial electronic circuits.
Its compact dimensions of 1mm length, 0.5mm height, and 0.5mm depth make it ideal for miniaturized surface mount assemblies. The inductor supports a maximum DC current of 300mA and exhibits a low DC resistance of 420 milliohms, enhancing energy efficiency.
The product has a high self-resonant frequency of 1900MHz and a minimum quality factor of 8, making it well suited for high frequency applications such as RF circuits, wireless LAN networks, and matching circuits in mobile communication equipment. Its operational temperature range stretches from -55°C to 125°C, ensuring stable performance under diverse environmental conditions.
Solder termination and moulded construction ensure reliable mounting and mechanical durability. This inductor is manufactured in Japan following stringent quality controls, providing lasting performance in demanding electronic systems.
Non-magnetic ceramic core suitable for high frequency noise filtering. Compact 1005 package size enables high-density PCB designs. Multilayer wirewound construction combines performance and size efficiency. Low DC resistance minimizes power losses during operation.
High self-resonant frequency enables effective use in RF circuits. Wide operating temperature range supports harsh industrial environments. Multilayer design balances inductance tolerance with physical footprint. Termination by solder ensures strong mechanical and electrical connection.
Manufactured in Japan to meet high quality and reliability standards.
Typical applications include industrial electronics, wireless communication devices, high frequency chokes, and audio equipment. This inductor is a reliable component for enhancing circuit stability and signal integrity across various electronic industries.
