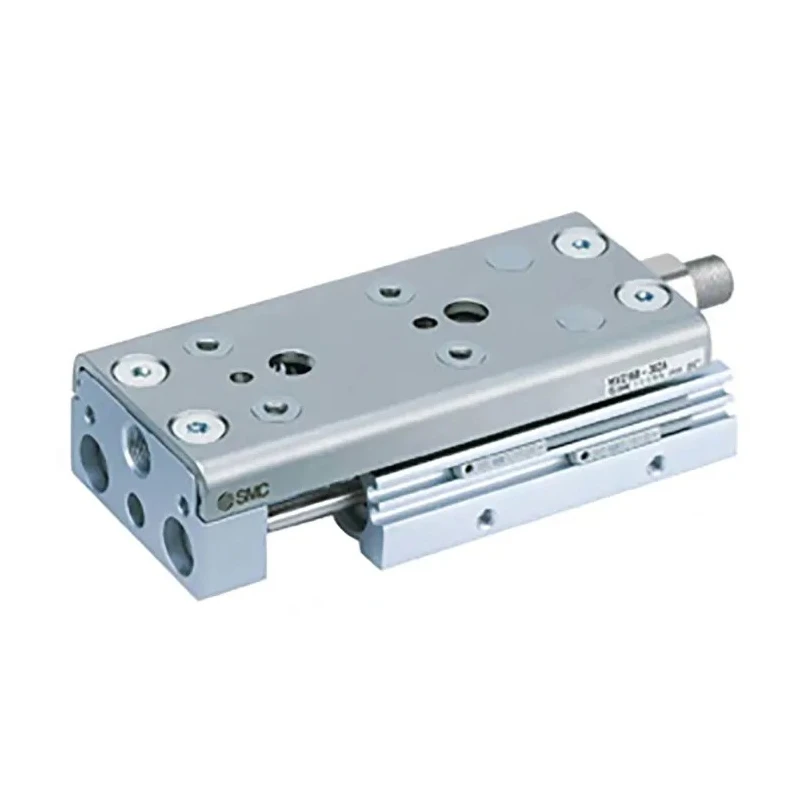

SMC Pneumatic Guided Cylinder 16mm Bore MXQA Series Double Acting 50 mm Stroke MXQ16A-50Z

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Guided Cylinder 16mm Bore MXQA Series Double Acting 50 mm Stroke MXQ16A-50Z



Category Pneumatic Guided Cylinder Brand SMC Condition New

Specifications

Country of Origin	France
Brand	SMC
Body Material	Special Stainless Steel
Maximum Operating Pressure	0.7 Mpa
Height	35mm
Length	145.5mm
Model	MXQ16A-50Z
Gross Weight	670g
Width	65mm
Mount Type	Hole, Through Hole
Series	MXQA
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	50mm
Bore Diameter	16mm
Action Type	Double Acting
Standards/Approvals	RoHS
Cushioning Type	Rubber

Key Features

Constructed from special stainless steel for enhanced durability.
Operates with a maximum pressure of 0.7 Mpa, suitable for precise pneumatic applications.
Equipped with rubber cushioning for smooth operation and noise reduction.
Designed to function reliably within a temperature range of -10°C to 60°C.
Compact dimensions with a length of 145.5mm, width of 65mm, and height of 35mm ensure easy integration.
Maximum piston speed of 500 mm/s for high efficiency.
Complies with RoHS standards indicating environmentally safe manufacturing.
Manufactured in France with a lightweight design weighing 670g to reduce installation strain.

Product Description

SMC MXQ16A-50Z Pneumatic Guided Cylinder, part of the MXQA series, offers a bore diameter of 16 mm and a stroke length of 50 mm, designed as a double acting actuator to deliver precise linear motion. Powered to operate at a maximum pressure of 0.7 Mpa, this cylinder features a robust body constructed from special stainless steel that offers durability and resistance to wear, making it ideal for demanding industrial environments.

The guiding slide table mechanism improves stability and reduces lateral movement, which is critical in precision placement and handling tasks. Rubber cushioning integrated into the design ensures smoother operations and helps in reducing machine noise, leading to less wear on machinery and improved workplace conditions.

Operating temperatures between -10°C and 60°C allow for versatile application in various industrial settings including manufacturing, packaging, and automated assembly lines. The compact dimensions (length 145.5 mm, width 65 mm, height 35 mm) and a lightweight build of 670 grams make it easily installable in constrained spaces without compromising performance.

This cylinder supports a maximum piston speed of 500 mm/s, enhancing cycle time efficiency in automated pneumatic processes. Its compliance with RoHS standards assures users of its conformity to environmental and safety regulations.

Applications range from pick and place operations, precision placement of workpieces, to low friction transport and vertical axis handling, making it suitable for a wide variety of pneumatic powered industrial tasks. The double ported body with auto-switch grooves on both sides provides versatile mounting options, improving ease of installation and flexibility.

Special stainless steel body ensures durability and corrosion resistance. Double acting operation for versatile pneumatic applications. Rubber cushioning protects machinery and improves noise control. Wide temperature range supports diverse operating environments.

Compact measurements facilitate installation in tight spaces. Lightweight design aids in easy handling and installation. High-speed piston movement enhances productivity. RoHS compliant ensuring environmental safety standards.

This pneumatic guided cylinder is an excellent fit for industrial automation, fluid power systems, and manufacturing processes. Explore more Pneumatic Guided Cylinders and related products on EnvMart to find optimal solutions for your pneumatic needs.
