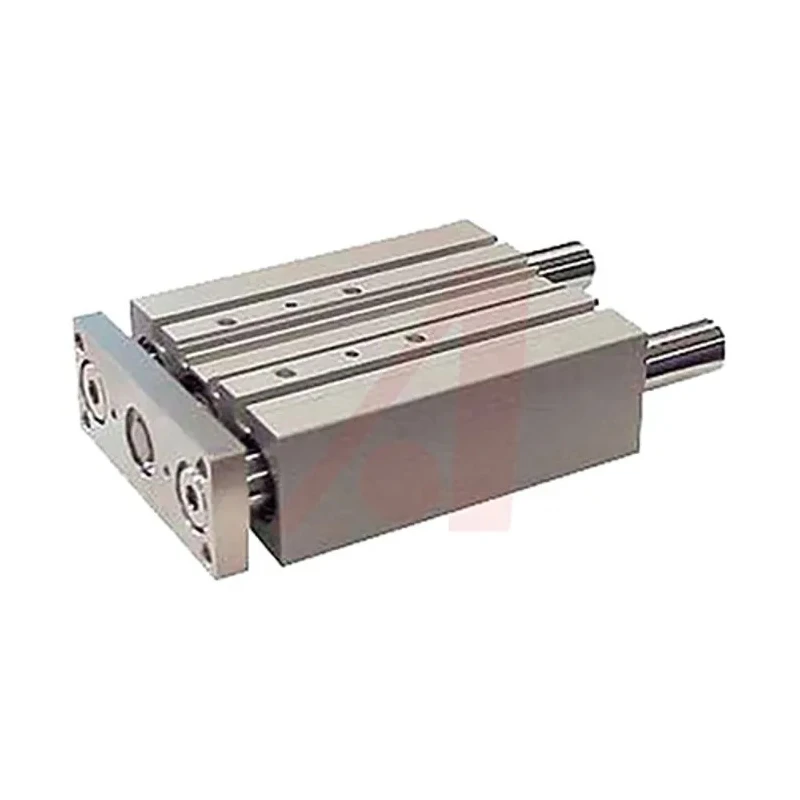

SMC Pneumatic Guided Cylinder 16mm Bore Double Acting MGP Series 150mm Stroke MGPM16-150Z
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 1 Mpa |
| Height | 25mm |
| Length | 242.5mm |
| Model | MGPM16-150Z |
| Gross Weight | 1.1kg |
| Width | 62mm |
| Series | MGP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 150mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber Cushioning at Both Ends |
| Guide Type | Slide Bearing, Ball Bushing |
| Piston Rod Thread Size | M5 x 0.8 |
Key Features
- The MGP series offers an ultra-compact design integrating the cylinder and guide bodies.
- Max operating pressure is 1 Mpa with rubber cushioning at both ends.
- Operating temperature range from -10°C to 60°C ensures versatile usability.
- Guide system utilizes slide bearing and ball bushing for smooth operation.
- Piston rod with M5 x 0.8 thread size and single rod type construction.
- Maximum piston speed of up to 500mm/s supports fast actuation.
- Compact dimensions with length of 242.5mm, width 62mm, height 25mm, and stroke length of 150mm.
- Weighs approximately 1.1 kg for easy integration into systems.
Product Description
SMC MGPM16-150Z Pneumatic Guided Cylinder is a high-performance component designed for industrial pneumatic applications requiring precise guided motion and high side load capacity. Featuring a 16mm bore and 150mm stroke length, this cylinder utilizes double acting operation to provide efficient actuation in both directions.
The MGP series cylinders are engineered with an ultra-compact design by integrating the cylinder body with the guide body, enhancing load capacity through increased bearing length proportional to stroke length. Rubber cushioning at both ends minimizes impact and prolongs cylinder life.
Operating reliably from -10°C to 60°C and capable of handling a maximum operating pressure of 1 Mpa, the cylinder supports a maximum piston speed of 500mm/s. The guide system combines slide bearing and ball bushing technology to ensure smooth and precise linear movement under side loads.
The piston rod features a single rod type with an M5 x 0.8 thread size, making it suitable for mounting sensors or additional accessories. Its compact form factor includes dimensions of 242.5mm length, 62mm width, and 25mm height, along with a gross weight of 1.1 kg, offering ease of installation in material handling, lifting, and stopping applications.
This product is manufactured in China and is ideal for industrial, manufacturing, automation, and laboratory pneumatic systems requiring guided actuation. The MGP series provides four mounting styles for flexible installation options.
Auto switches can be mounted on two sides for enhanced sensing capabilities. High mounting and piping flexibility adapts to diverse industrial setups. Designed for material handling, lifting, and positioning tasks within pneumatic automation.
The guided cylinder significantly extends service life through integrated cushioning and robust guide mechanisms. Discover more pneumatic components and guided cylinders in the EnvMart Pneumatic Guided Cylinder category for comprehensive industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1 Mpa.
This unit has dimensions of 242.5mm in length, 62mm in width, and 25mm in height.
The stroke length of this cylinder is 150mm.
The bore diameter of this model is 16mm.
It operates within a temperature range of -10°C to 60°C.
This cylinder features rubber cushioning at both ends to minimize impact.
It utilizes a guide system that combines slide bearing and ball bushing technology for smooth operation.
The maximum piston speed is up to 500mm/s.
The gross weight of this unit is approximately 1.1 kg.
It features a single rod type with an M5 x 0.8 thread size.
This model is suitable for material handling, lifting, and positioning tasks within pneumatic automation.
This product is manufactured in China.
