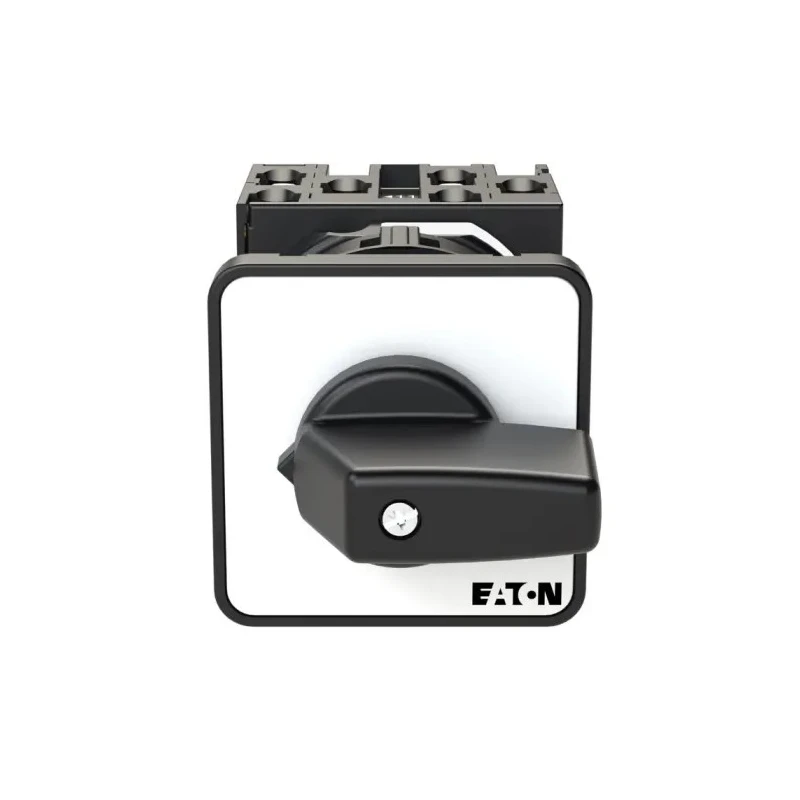

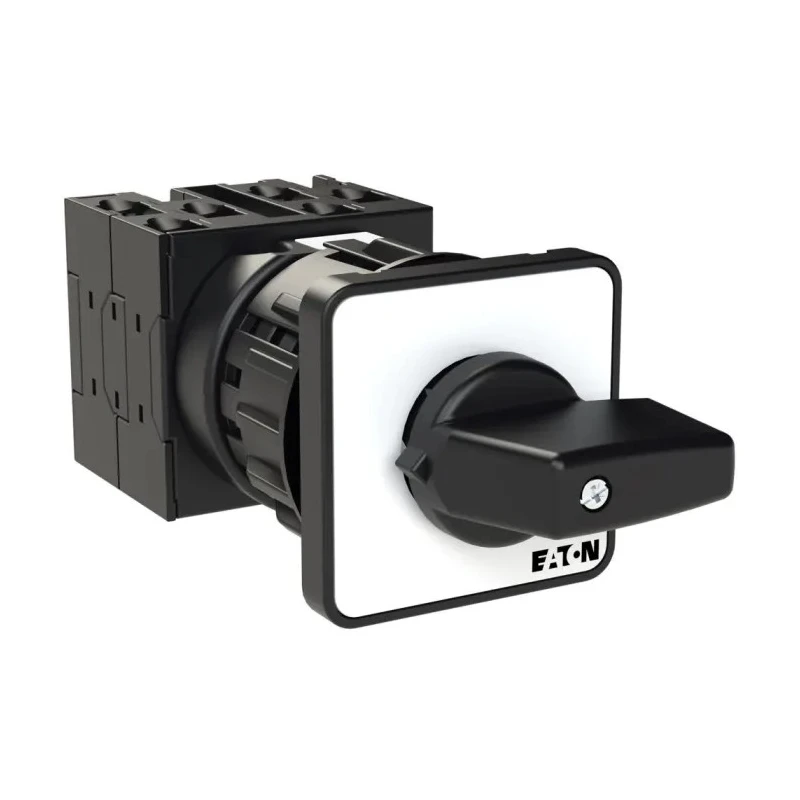

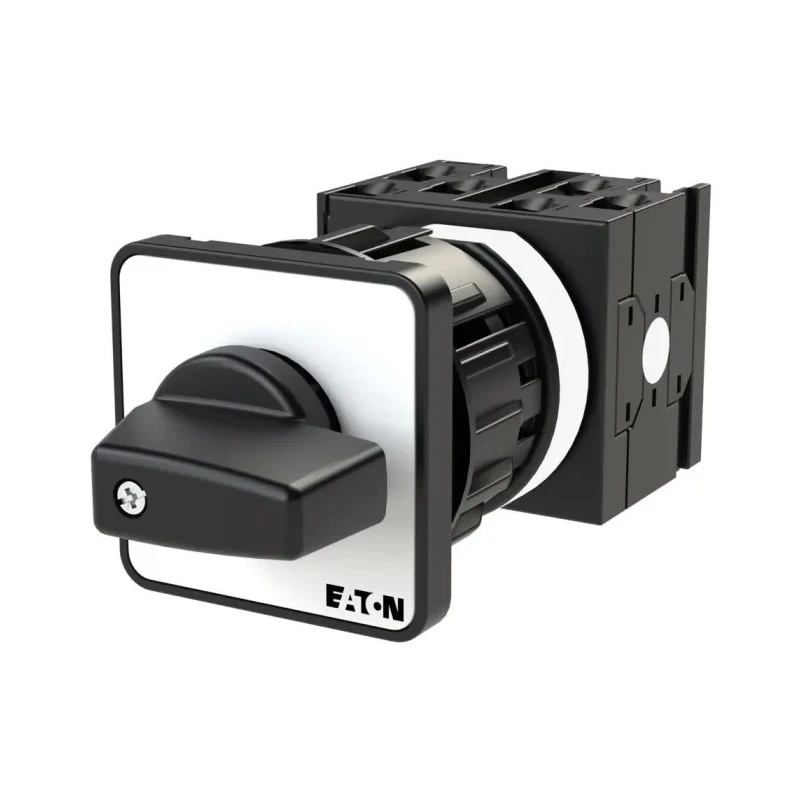

Eaton 7 Position 45° Cam Switch 3 Pole 20A 690V AC IP65 098186 T0-3-8007/EZ
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Length | 48mm |
| Model | 098186 T0-3-8007/EZ |
| Depth | 48mm |
| IP Rating | IP65 |
| Width | 120mm |
| Mount Type | Center |
| Series | T0 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 7 |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, VDE 0660, IEC/EN 60947, IEC/EN 60204, CSA |
| Mechanical Life | 10000000Operations |
| Contact Voltage | 690V ac |
| Contact Current | 20A |
| Angle of Throw | 45 ° |
Key Features
- Operates with a 3 pole 3PST configuration allowing effective multi-circuit control.
- Rated for a maximum current of 20A and voltage up to 690V AC ensuring wide compatibility.
- IP65-rated housing protects against dust ingress and water jets for reliable use in harsh environments.
- Features a toggle actuator for intuitive, quick and robust operation during switching.
- The switch supports 7 selectable positions enabling precise circuit management.
- Mechanical life rated up to 10 million operations to ensure durability over extended use.
- Complies with UL, VDE, IEC/EN and CSA standards for safety and performance.
- Designed for front mounting with screw terminals for secure installation.
Product Description
Eaton 098186 T0-3-8007/EZ 7 Position 45° Cam Switch is engineered for precise and reliable electrical control in industrial automation and machinery.
This cam switch features a 3PST pole and throw configuration with 7 selectable positions, allowing seamless switching between multiple circuits. It handles a maximum contact current of 20A and is rated up to 690V AC for versatile application in various electrical control panels.
The robust IP65-rated enclosure prevents ingress of dust and low-pressure water jets, making it suitable for demanding environments and outdoor use. The toggle actuator enhances usability by enabling quick and intuitive position changes.
Designed for front panel mounting with screw-type terminals, this cam switch offers straightforward installation and secure electrical connections. Its compact form factor measuring approximately 115 x 48 x 120 mm fits easily into electrical cabinets with limited space.
With mechanical durability rated at 10 million operations and compliance to UL, VDE 0660, IEC/EN 60947, IEC/EN 60204, and CSA standards, this switch guarantees longevity and safety for industrial operations. It operates reliably in temperatures from -25°C to 50°C, accommodating a wide range of working conditions.
Typical applications include voltage selection between phase-phase and phase-neutral circuits, industrial machinery control, and multi-phase electrical panels where precise circuit management is essential.
Operates with a 3 pole 3PST configuration allowing effective multi-circuit control. Rated for a maximum current of 20A and voltage up to 690V AC ensuring wide compatibility. IP65-rated housing protects against dust ingress and water jets for reliable use in harsh environments.
Features a toggle actuator for intuitive, quick and robust operation during switching. The switch supports 7 selectable positions enabling precise circuit management. Mechanical life rated up to 10 million operations to ensure durability over extended use.
Complies with UL, VDE, IEC/EN and CSA standards for safety and performance. Designed for front mounting with screw terminals for secure installation. Suitable for industrial, manufacturing, electrical panel, HVAC, and automation applications.
Explore more Eaton products and industrial Cam Switches in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 20A.
The cam switch can handle voltages up to 690V AC.
This model features 7 selectable positions for circuit management.
It has an IP65 rating, providing protection against dust ingress and low-pressure water jets.
The switch measures approximately 120mm in width, 48mm in depth, and 48mm in length.
The mechanical life is rated at up to 10 million operations.
It is designed with screw-type terminals for secure installation.
It operates reliably in temperatures ranging from -25°C to 50°C.
It complies with UL, VDE 0660, IEC/EN 60947, IEC/EN 60204, and CSA standards.
The angle of throw is 45°.
This cam switch is designed for center mounting.
It is suitable for industrial machinery control, voltage selection, and multi-phase electrical panels.
