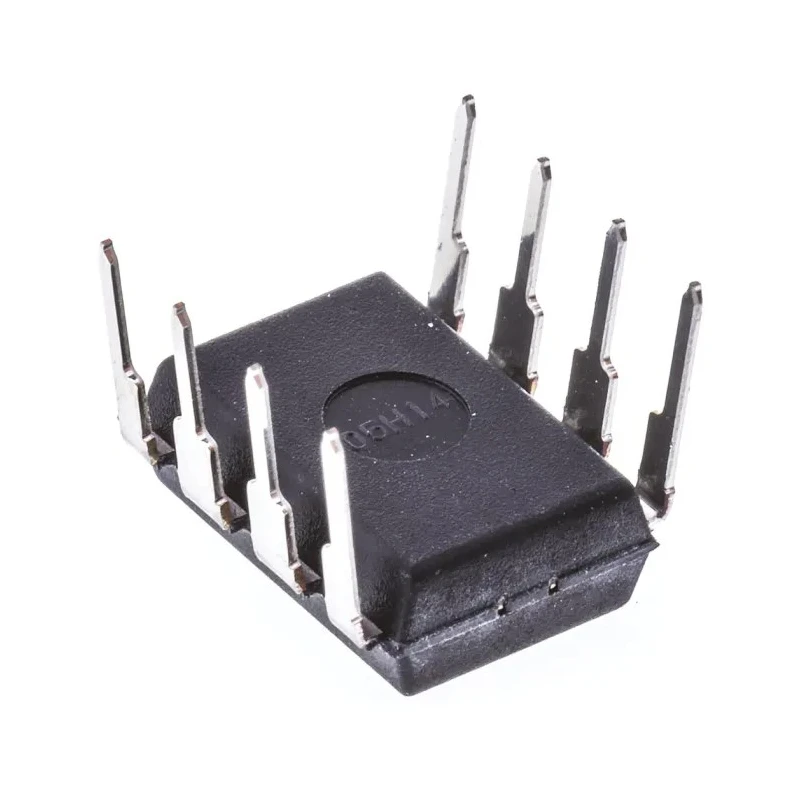

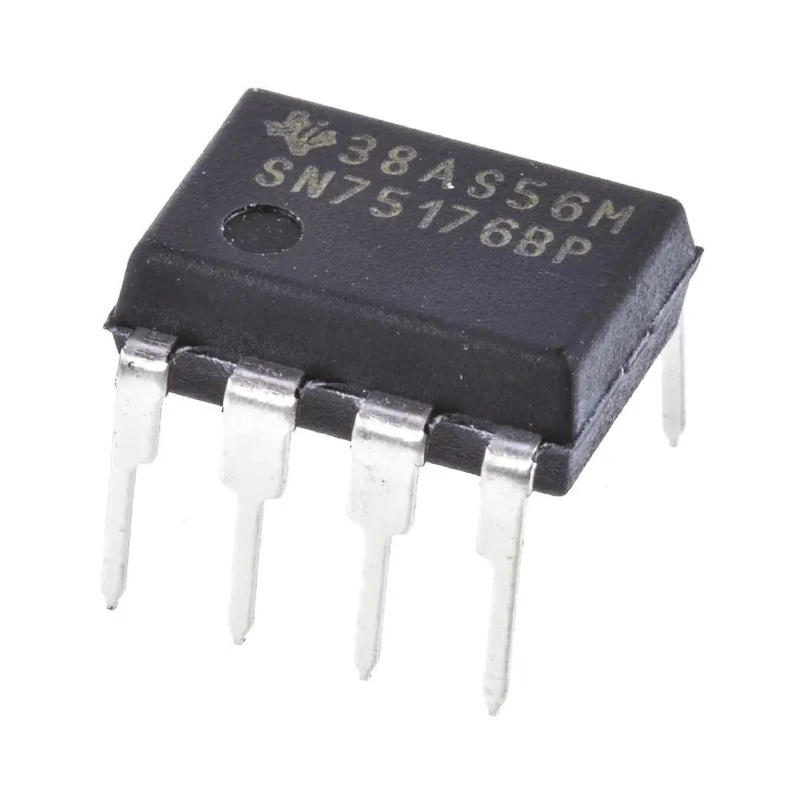

Texas Instruments Bus Transceiver Inverting Differential, 8-Pin SOIC SN75176BP

Texas Instruments SN75176BP is a bus transceiver designed for inverting differential signal communication in industrial and electronic applications. This 8-pin SOIC device supports RS-485 line drivers and receivers, offering high-speed data transmission capability with a maximum propagation delay of 35 nanoseconds.

The transceiver operates over a supply voltage range of 4.75V to 5.25V and supports CMOS input levels. Its three-state output design enables it to be used in networks requiring multiple transceivers on a single bus. The device is suitable for mounting through hole, providing reliable mechanical stability on printed circuit boards.

Operating within the temperature range of 0°C to 70°C, it is well-suited for robust industrial environments. The maximum output current ratings of ±60mA provide sufficient driver strength for long communication lines. The package dimensions are compact with a height of 4.57mm and a length of 9.81mm, facilitating space-efficient PCB design.

Manufactured in Mexico, the SN75176BP ensures quality semiconductor construction adhering to industry standards. This model is part of the SN75176B series by Texas Instruments, a trusted name known for reliable logic ICs and bus transceivers used in automation, instrumentation, and communication systems.

Operates at a minimum supply voltage of 4.75V and maximum of 5.25V. Maximum propagation delay time of 35ns ensuring high-speed data transfer. Input compatible with CMOS logic levels. Output is differential and three-state capable for network bus applications.

Maximum operating temperature of 70°C, suitable for industrial environments. Maximum output current of +60mA and -60mA for strong drive capabilities. Package type is SOIC with 8 pins and through-hole mount. Compact physical dimensions: height 4.57mm, length 9.81mm.

Manufactured in Mexico, ensuring high-quality standards. Compatible with RS-485 communication standards.

This bus transceiver is ideal for use in industrial communication networks, automation systems, instrumentation, and high-speed data transmission applications. It allows seamless data exchange in multi-point bus systems efficiently and reliably.
