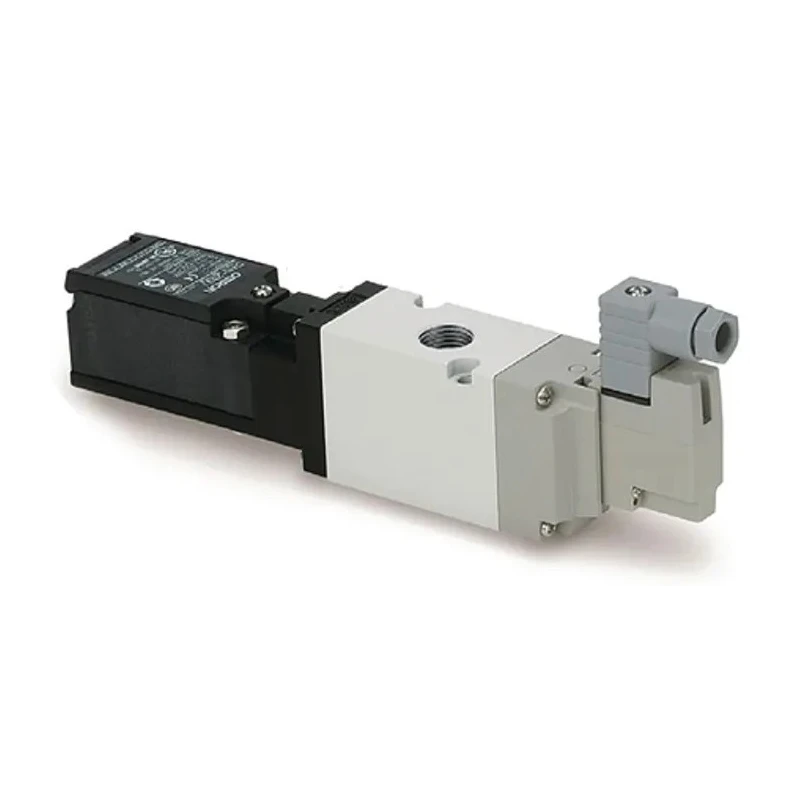

SMC Pneumatic Solenoid Valve 3/2 NC Single Solenoid G Threaded Port 3/8 in Die Cast Aluminium Body 24V VP500

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 3/2 NC Single Solenoid G Threaded Port 3/8 in Die Cast Aluminium Body 24V VP500



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	India
Voltage	24V
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	85mm
Length	129.1mm
Model	VP500
Width	32mm
Mount Type	Body Ported
Series	VP500
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	2
Port Size	3/8 in
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Standards/Approvals	RoHS, CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Valve Function	3/2 NC
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	1.5W

Key Features

Complies with ISO13849-1 Category 2 for safety system use.
Equipped with limit switch for valve position monitoring.
Contains a return spring for normally closed operation.
Compact design with dimensions 129.1mm length and 85mm height.
Operates reliably within a temperature range of -10°C to 50°C.
Has a maximum operating pressure of 0.7 MPa and pilot pressure between 0.2 and 0.7 MPa.
Features a DIN connector for electrical connection.
Designed for industrial pneumatic safety applications including machinery and assembly systems.

Product Description

SMC VP542R-5YZ1-03F-M-X536 Pneumatic Solenoid Valve 3/2 NC from the VP500 series operates at 24V with a single solenoid actuation type and G threaded port size of 3/8 inch. This valve features a die cast aluminium body and rubber seals, mounted body ported type, and 3 female ports. It supports safe venting of compressed air suitable for Category 2 safety systems according to ISO13849-1.

The valve is equipped with a limit switch to monitor its energized or de-energized state, enabling enhanced control and safety in pneumatic systems. It uses a return spring for normally closed function, and includes an LED position indicator for easy status verification. Power consumption of the solenoid is low at 1.5W, with a built-in varistor voltage suppressor to protect electrical components.

With compact dimensions (Length: 129.1 mm, Width: 32 mm, Height: 85 mm), the valve can integrate modularly with SMC FRL pneumatic systems, and supports operating temperatures from -10°C up to 50°C ensuring reliability under varying environmental conditions. The maximum operating pressure is 0.7 MPa with pilot pressure rated from 0.2 MPa to 0.7 MPa.

Applications include use in safety control systems for compressed air machinery such as tyre pressure testers, moulding machines, and assembly machines, where compliance with safety standards is crucial. Although the valves are not individually certified for ISO13849-1, they form part of compliant systems.

ISO13849-1 Category 2 compliant valve for pneumatic safety systems. Limit switch included for continuous position monitoring. LED indicator shows valve status clearly. Low solenoid power consumption for energy efficiency.

Die cast aluminium robust body construction for durability. Wide operating temperature and pressure range. Compatible with SMC FRL modular fit systems. Designed for diverse industrial safety applications. Explore EnvMart’s comprehensive selection of industrial pneumatic valves that meet stringent safety and performance standards.
