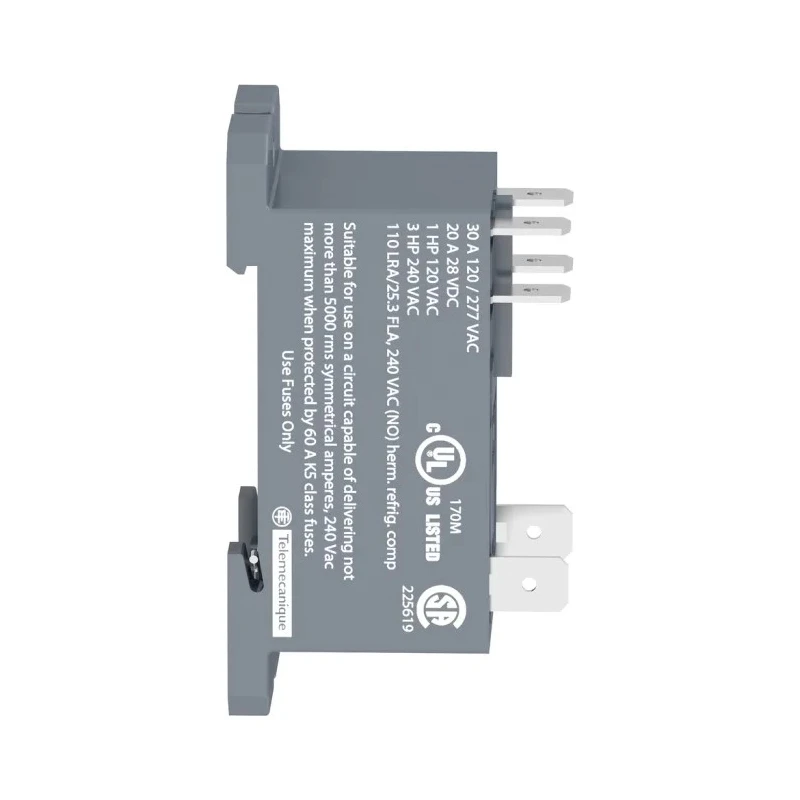

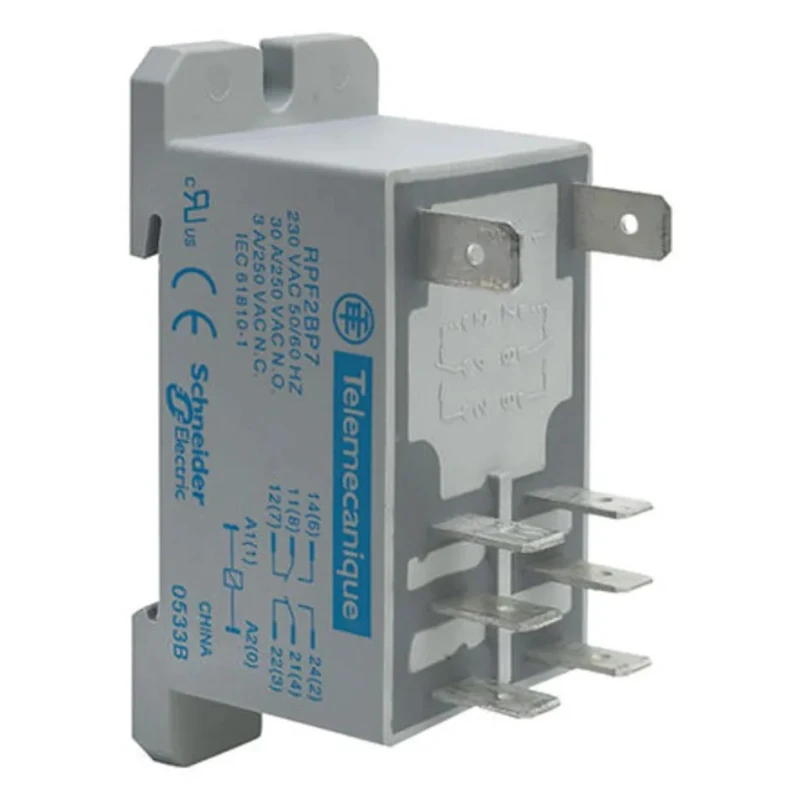

Schneider Electric DIN Rail Power Relay 132V AC Coil 30A Switching Current DPST RPF2AF7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 68.5mm |
| Length | 33.7mm |
| Model | RPF2AF7 |
| Width | 39.1mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RP |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 30A |
| Terminal type | Plug-In |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 4.3kΩ |
| Coil Voltage | 132V ac |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Designed for DIN rail mounting with plug-in terminal type for easy installation.
- DPST contact configuration with silver alloy contact material ensures durability.
- Rated switching AC and DC voltage of 250V supports a variety of electrical control tasks.
- Operating temperature range from -40°C to 55°C allows use in diverse industrial environments.
- Compact dimensions (68.5mm height, 39.1mm width, 33.7mm length) support space-saving panel designs.
- Coil resistance is 4.3kΩ, providing stable coil performance.
- Compliance with CSA and CE standards ensures safety and quality.
- Part of the Harmony Relay RP series known for reliability and industrial use.
Product Description
Schneider Electric RPF2AF7 is a DIN rail mounted power relay featuring a coil control voltage of 132V AC and a contact switching current rating of 30A. This DPST relay integrates silver alloy contacts to provide robust, reliable switching performance in industrial electrical automation systems.
The relay's plug-in terminal design facilitates quick assembly and maintenance, while its compact form factor - measuring 68.5mm in height, 39.1mm in width, and 33.7mm in length - enables efficient use of panel space in control enclosures.
Operating effectively across a wide temperature range of -40°C to 55°C, it is engineered for use in demanding environments. The coil resistance of 4.3kΩ assures consistent coil current and switching behaviour. With switching voltages up to 250V AC and 250V DC, and switching power of 7.5 kVA, this relay meets rigorous industrial requirements.
Certified to CSA and CE standards, it supports compliance needs in industrial installations. Designed specifically to complement programmable logic controllers (PLCs) and automated hard-wired logic systems, it enhances machine reliability and reduces enclosure sizes.
The RPF2AF7 relay belongs to the trusted Harmony Relay RP series, known for versatile industrial applications including Electrical, Automation, Machinery, and HVAC control systems.
Designed for DIN rail mounting with plug-in terminals. DPST contact configuration with silver alloy contacts. Rated for 30A switching current and 132V AC coil voltage. Operating temperature range from -40°C to 55°C. Compact dimensions enable space-efficient installation.
Conforms to CSA and CE standards. Suitable for industrial automation including PLC integration. Part of the reliable Harmony Relay RP series. Explore EnvMart's wide selection of industrial Power Relays and automation components for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RPF2AF7 relay has a switching current rating of 30A.
This model operates with a coil voltage of 132V AC.
It can operate effectively within a temperature range of -40°C to 55°C.
The relay measures 68.5mm in height, 39.1mm in width, and 33.7mm in length.
The RPF2AF7 features a DPST (Double Pole Single Throw) contact configuration.
It uses plug-in terminals for easy installation and maintenance.
The contacts are made of silver alloy, which ensures reliable performance.
The relay supports a maximum switching voltage of 250V for both AC and DC.
It complies with CSA and CE standards, ensuring safety and quality.
This relay is part of the Harmony Relay RP series, known for its reliability in industrial applications.
The coil resistance is 4.3kΩ, providing stable coil performance.
It is suitable for various industrial automation applications, including PLC integration and HVAC control systems.
