JST EH Series Female Crimp Terminal, 3A, 30 AWG Min, 22 AWG Max, Tin Plated Phosphor Bronze SEH-001T-P0.6

Free Delivery in India | Lowest Global Shipping Charges

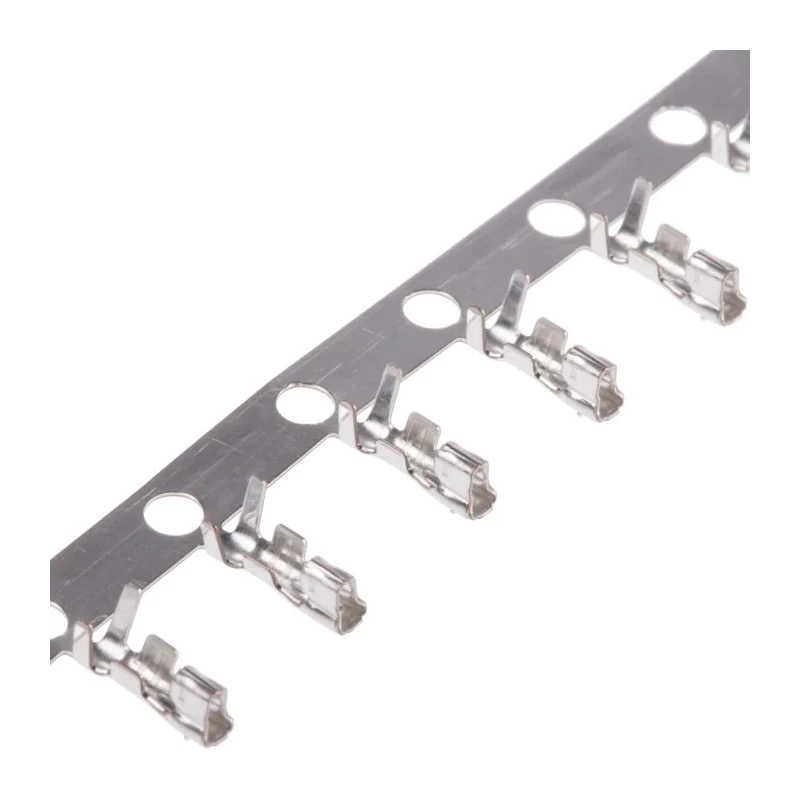

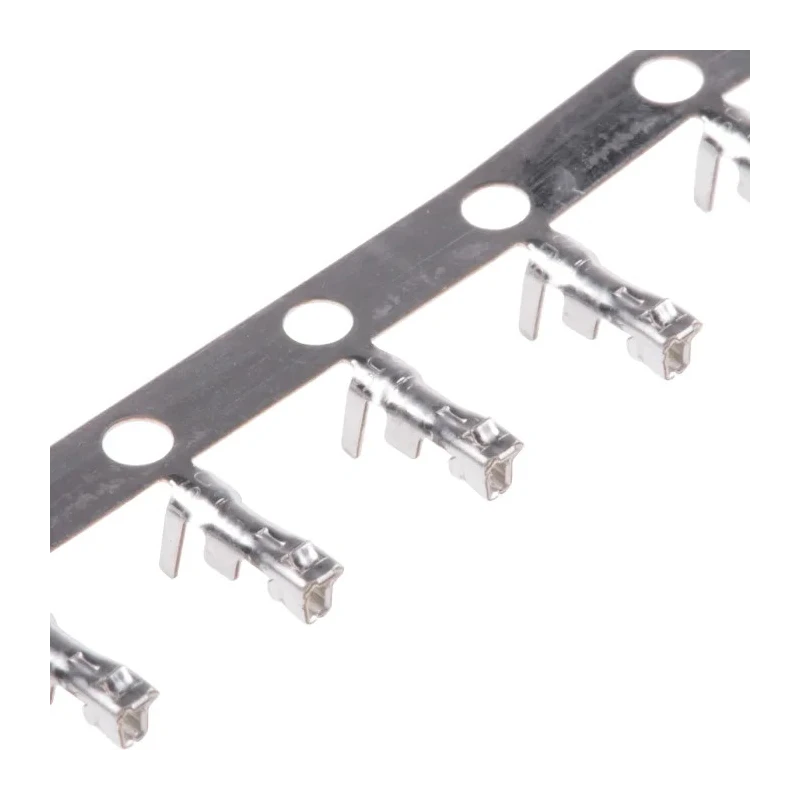

JST EH Series Female Crimp Terminal, 3A, 30 AWG Min, 22 AWG Max, Tin Plated Phosphor Bronze SEH-001T-P0.6



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	Indonesia
Brand	JST
Current	3A
Model	SEH-001T-P0.6
Gender	Female
Contact Material	Phosphor Bronze
Series	EH
Termination Type	Crimp
Maximum Operating Temperature	85°C
Insulation resistance	1,000M Ω min
Minimum Operating Temperature	-25°C
For Use With	EH Connector Housing
Contact Resistance	10m Ω max. (initial)
Contact Plating	Tin
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ
PCB Thickness	0.8-1.6 mm
JST EH Series Female Crimp Terminal, 30 AWG Min Crimp, 22 AWG MaxBrand	JST

Key Features

Compact 2.5mm pitch crimp-style connector for reliable connections.
Constructed from tin-plated phosphor bronze for durability and corrosion resistance.
Designed for wires ranging from 0.05 mm² (30 AWG) to 0.3 mm² (22 AWG).
Maximum operating temperature of 85°C and minimum of -25°C enables wide usage conditions.
Compact size of 8.1mm height and 3.8mm width optimizes PCB space.
Low contact resistance with initial value at 10mΩ max and max rating 20mΩ.
High insulation resistance of 1,000 MΩ minimum for electrical reliability.
Suitable for use with EH connector housing series connectors.

Product Description

JST SEH-001T-P0.6 female crimp terminal is a precision crimp contact designed for use with EH series connector housings. Supporting a current rating of 3A, it accommodates wire sizes from 30 AWG (minimum) to 22 AWG (maximum), making it suitable for various electronic and electrical applications.

Constructed from phosphor bronze with tin plating, these crimp terminals offer excellent conductivity along with corrosion resistance. The contacts have a 2.5mm pitch and feature a compact design measuring 8.1mm in height and 3.8mm in width, enabling efficient PCB mounting with PCB thickness compatibility from 0.8mm to 1.6mm.

Designed to operate reliably in temperature ranges from -25°C up to 85°C, these crimp terminals feature a low initial contact resistance of 10mΩ max and maintain a maximum contact resistance of 20mΩ. The high insulation resistance minimum of 1,000 MΩ ensures robust electrical isolation and performance.

The crimp termination style enables secure and vibration-resistant connections, suitable for industrial electronics, power connectors, and precision equipment in fields such as industrial automation, manufacturing, and electronics assembly.

Compact 2.5mm pitch crimp connector designed for EH series housings. Phosphor bronze material with tin plating for durability and conductivity. Supports wire sizes from 30 AWG (0.05 mm²) to 22 AWG (0.3 mm²). Operating temperature range: -25°C to 85°C.

Low contact resistance ensures efficient electrical performance. High insulation resistance for electrical safety and reliability. Compatible PCB thickness from 0.8mm to 1.6mm. Ideal for vibration-prone environments and reliable crimp connections.

These JST EH series female crimp terminals are manufactured in Indonesia. They are ideal for electronic component assemblies requiring precise and reliable wire-to-board connections. Browse more from JST and related crimp connector components on EnvMart.

Explore more products in our Crimp Contacts category.
