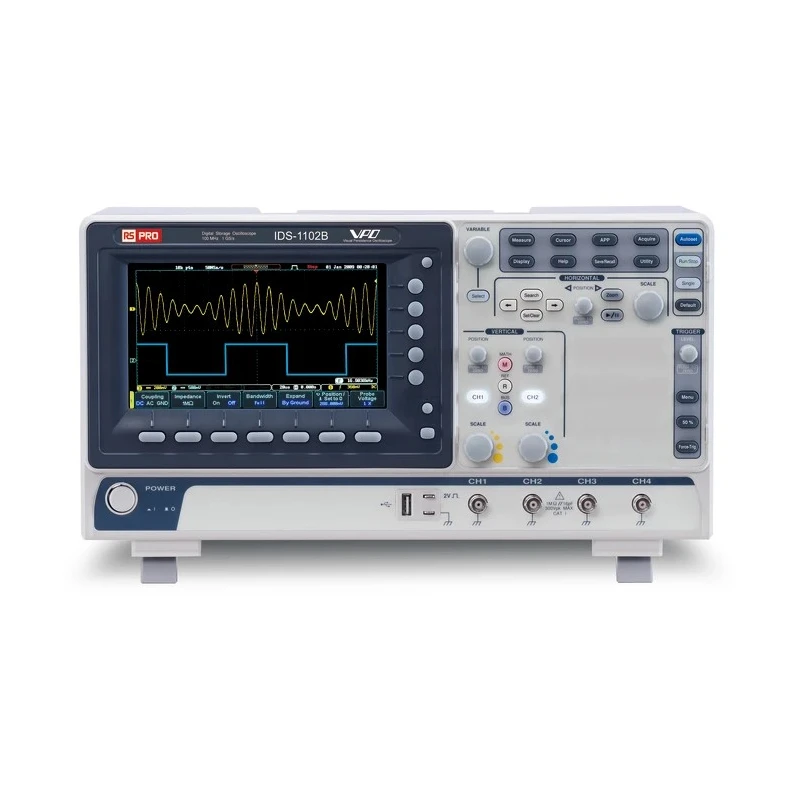

RS PRO 100 MHz Bench Digital Storage Oscilloscope 4 Channels USB Interface 10Mpts Memory Depth RS PRO 123-3543
Specifications
| Country of Origin | India |
|---|---|
| Display Type | TFT LCD |
| Display | 7 inch 800 x 480 WVGA LCD display |
| Brand | RS PRO |
| Height | 208mm |
| Model | 123-3543 |
| Depth | 208mm |
| Width | 127.3mm |
| Bandwidth | 100MHz |
| Series | RS PRO |
| Screen Size | 7 in |
| Plug Type | EU, UK |
| Number Of Channels | 4 |
| Vertical Resolution | 8 bit |
| Memory Depth | 10Mpts |
| Rise Time | 3.5ns |
| Waveform Refresh Rate | 5000per sec |
| Interface Type | USB |
| Oscilloscope Type | Bench |
| Minimum Vertical Sensitivity | 1mV/div |
| Standards/Approvals | CE, cUL, UL |
| Safety Category Level | CAT I, CAT II |
| Safety Category Voltage | 300V |
| Oscilloscope Form | Digital Storage |
| Minimum Time Base | 5ns/div |
| Maximum Vertical Sensitivity | 10V/div |
| Maximum Time Base | 100s/div |
| RS PRO, 50 MHz Bench OscilloscopeBrand | RS PRO |
| RS PRO IDS1074B Digital Bench Oscilloscope, 4 Analogue Channels, 70MHzBrand | RS PRO |
| RS PRO RSDS1104CFL, 100MHz Bench Oscilloscope, 4 Analogue ChannelsBrand | RS PRO |
| Teledyne LeCroy T3DSO1000 Series, 100 MHz Bench Oscilloscope 4-ChannelBrand | Teledyne LeCroy |
Key Features
- Features a 7 inch 800 x 480 WVGA TFT LCD display for clear waveform viewing.
- Maximum sampling rate of 1 GSa/s with 10 Mpts memory depth per channel.
- Supports diverse trigger types including Edge, Pulse, Video, Logic, and serial protocols like RS232, I2C, SPI.
- Includes 256 color gradient display for enhanced waveform detail presentation.
- Compact design measuring 380 x 208 x 127.3 mm for portability and ease of use.
- Waveform refresh rate of 5000 waveforms per second to capture fast transient signals.
- Equipped with FFT mode for frequency domain analysis comparable to spectrum analyzers.
- Integrated digital voltage meter, data logging, and Go/NoGo functionality for efficient testing.
Product Description
RS PRO 123-3543 is a 100 MHz Bench Digital Storage Oscilloscope featuring 4 independent channels and a high-resolution 7 inch 800 x 480 WVGA TFT LCD display designed for precise waveform visualization and analysis. This oscilloscope is equipped with Visual Persistence Oscilloscope (VPO) technology, utilizing a high-density IC for hardware acceleration that enhances the display of rapid analog signals with a 256 colour gradient to reveal detailed waveform nuances.
The device supports a maximum sampling rate of 1 GSa/s and a deep memory of 10 million points per channel, allowing clear differentiation of signal details and extended observation. Its FFT mode provides frequency domain signal display comparable with spectrum analyzers, enabling sophisticated spectral analysis within a compact footprint of 380 x 208 x 127.3 mm tailored for portability and comfort in laboratory or field use.
Trigger capabilities are comprehensive, including Edge, Pulse, Width, Video, ALT, Runt, Rise & Fall, Event-Delay, Time-Delay, Timeout, Logic, RS232, I2C, and SPI, offering versatile control for capturing complex signal events. The zero key function instantly restores previous waveform settings, streamlining workflow during test and measurement sessions.
7 inch 800 x 480 TFT LCD display for enhanced waveform clarity. 1 GSa/s maximum sampling rate with 10Mpts memory depth to capture detailed signal information. Supports advanced trigger types for versatile signal acquisition.
256 color gradient display enhances subtle signal variations presentation. Compact dimensions and ergonomic design for comfortable transport and use. FFT frequency domain analysis for spectral measurement. Digital voltage meter and data logging functionalities included.
USB interface for external connectivity and data management. Safety certification for CAT I and CAT II environments up to 300V. Waveform refresh rate of 5000 waveforms per second captures transient events.
This oscilloscope is ideal for industrial, laboratory, educational, product testing, quality assurance, maintenance, and diagnostic applications. It allows professionals to analyze analog and digital signals with confidence and precision for development, debugging, and service operations.
RS PRO products are known for reliable performance and high quality, widely used across various engineering and scientific sectors. Browse more Oscilloscopes and test equipment to complement your instrumentation suite on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum bandwidth of this model is 100 MHz, allowing it to accurately capture and analyze high-frequency signals.
This oscilloscope features 4 independent channels, enabling simultaneous observation of multiple signals.
It has a maximum sampling rate of 1 GSa/s, which helps in capturing fast transient signals effectively.
The memory depth is 10 million points (10 Mpts) per channel, allowing for detailed signal observation and analysis.
It supports diverse trigger types including Edge, Pulse, Video, Logic, and serial protocols like RS232, I2C, and SPI, enhancing its versatility for signal acquisition.
It features a 7 inch 800 x 480 WVGA TFT LCD display, providing clear and detailed waveform visualization.
The dimensions are 380 mm in width, 208 mm in depth, and 127.3 mm in height, making it compact and portable.
The waveform refresh rate is 5000 waveforms per second, which allows for capturing fast transient events effectively.
Yes, it includes FFT mode for frequency domain analysis, as well as a digital voltage meter and data logging functionalities.
It is certified for safety categories CAT I and CAT II, with a maximum safety voltage of 300V.
The minimum vertical sensitivity is 1 mV/div, and the maximum is 10 V/div, allowing for a wide range of signal amplitudes to be measured.
The minimum time base is 5 ns/div and the maximum is 100 s/div, providing flexibility for various signal time scales.
