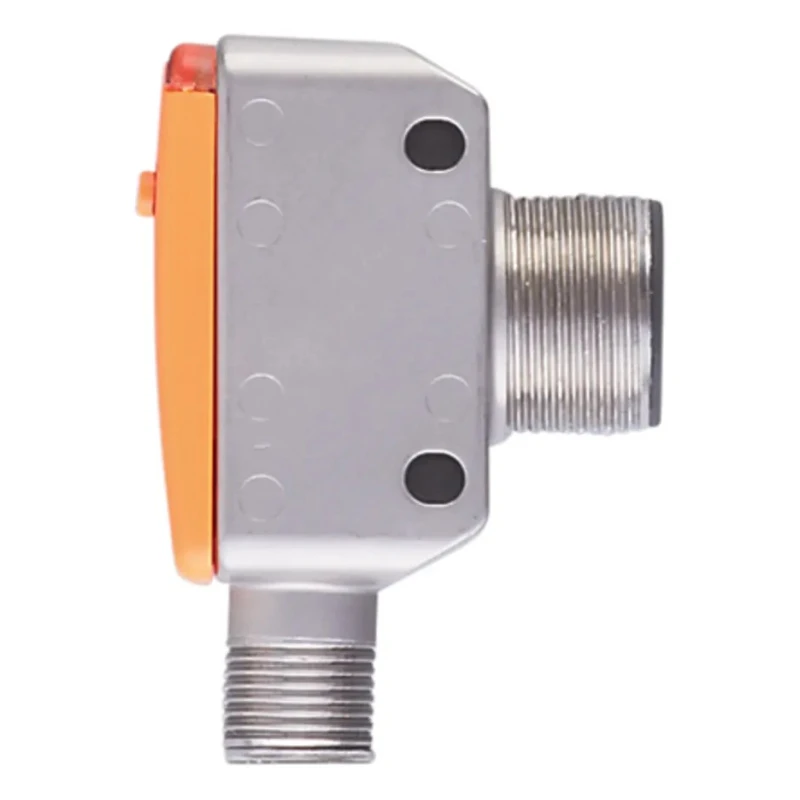

ifm electronic Ultrasonic Proximity Sensor Block Body M18 x 1, 1.2 m Detection, 35mA, PNP Output, 3V to 30V DC UGT584

ifm electronic UGT584 Ultrasonic Proximity Sensor is a block style sensor designed for industrial automation and control applications. Featuring M18 x 1 threading and a robust housing made from stainless steel, polyamide, polybutylene terephthalate, and epoxy glass ceramic, this sensor withstands demanding environments.

This sensor detects objects up to 1.2 meters using ultrasonic diffuse sensing technology and offers a fast response time of 0.1 seconds. The output is PNP type with a switching current of 35mA and maximum switching frequency of 5 Hz. It operates reliably within a wide voltage range of 3V to 30V DC and a temperature range of -20°C to 70°C, ensuring consistent performance under industrial conditions.

The device's IP67 rating provides dust tight and water-resistant protection, making it ideal for applications involving heavy soiling or exposure to moisture, where photoelectric sensors may fall short. It is suitable for detecting colorless, transparent, or highly reflective objects, providing versatility in object detection tasks.

Installation is facilitated via screw terminals and the compact form factor with 53mm length, 20mm width, and 37.7mm depth allows integration into tight spaces. The ultrasonic sensor technology relies on time of flight measurement of sound waves for accurate proximity sensing.

Certified to multiple standards including CE, cULus, and EN 55011 among others, the UGT584 sensor provides a trustworthy solution for factory automation, manufacturing processes, material handling, and quality control in industrial setups.

The sensor's robust housing enhances durability in rugged industrial environments. The ultrasonic technology supports reliable detection on challenging surfaces. The IP67 rating guarantees resistance against dust and water ingress.

Fast switching frequency and short response time support high-speed applications. The compact block style enables flexible installation in automation systems. Wide operating temperature range extends usability across various climates.

Output configuration and electrical ratings align with common industrial controls. Compliance with multiple international standards assures quality and safety. Explore the extensive range of sensors and automation components available to optimize your industrial control systems on EnvMart.
