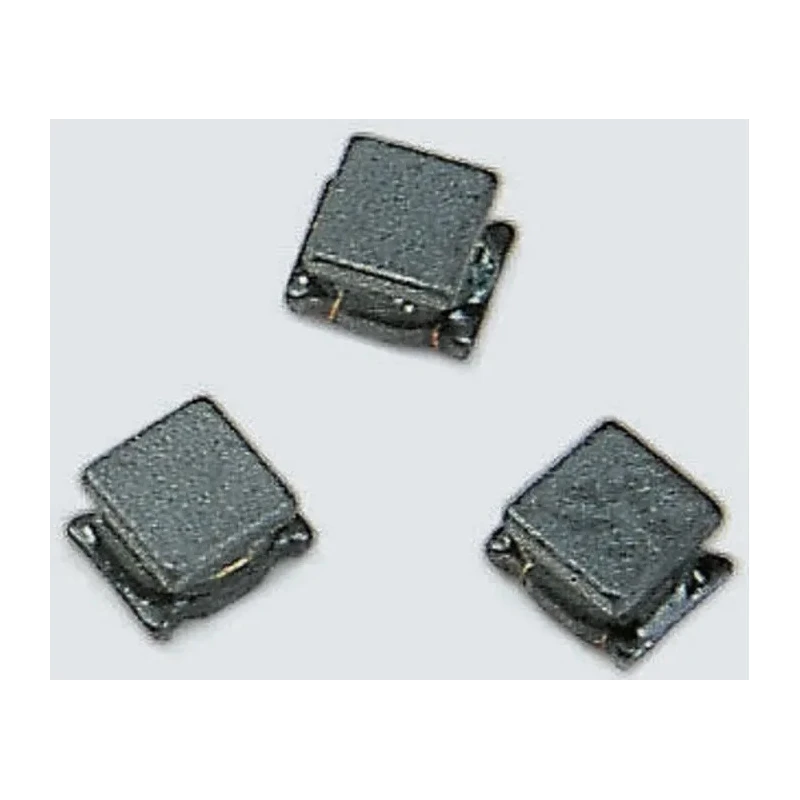

Murata Wirewound Surface Mount Inductor 2.7μH ±10% 320mA, Ferrite Core, 1210 Package LQH32MN2R7K23L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32MN2R7K23L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 320mA |
| Pin Count | 2 |
| Maximum DC Resistance | 900mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 43MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
Key Features
- Subminiature 1210 package size with embossed tape packaging for surface mounting.
- Maximum DC current rating of 320mA ensures reliable operation in low current applications.
- Low maximum DC resistance of 900 milliohms reduces power loss and heat generation.
- Operating temperature range from -40°C to 85°C for use in diverse environments.
- Constructed with a ferrite core and wirewound design to offer high quality inductance and stability.
- Maximum self-resonant frequency of 43MHz enables use in high frequency circuits.
- Moulded construction provides mechanical durability and protection.
- Termination style is solder, compatible with standard SMT assembly processes.
Product Description
Murata LQH32MN2R7K23L wirewound surface mount inductor is engineered with a ferrite core and manufactured in a compact 1210 package. It has an inductance of 2.7μH with a tolerance of ±10%, providing consistent performance in electronic circuits.
This subminiature inductor supports a maximum DC current of 320mA, making it suitable for signal line and low current applications. The low maximum DC resistance of 900 milliohms ensures minimal power loss and thermal buildup.
Designed to operate within a temperature range of -40°C to 85°C, this component is suitable for demanding environments and complies with RoHS standards. The inductor's maximum self-resonant frequency of 43MHz allows it to be used effectively in high frequency circuits including communication and audio equipment.
The wirewound construction with a ferrite core offers excellent inductance stability and quality factor not less than 20. Its moulded encapsulation safeguards the device from mechanical damage and environmental factors.
It is housed in a standard 1210 package and presented in embossed tape for automated surface mount technology (SMT) assembly. The termination style is solder, compatible with standard PCB manufacturing processes.
Subminiature 1210 package with embossed tape packaging for automated SMT placement. Ferrite core wirewound construction ensures stable inductance. Rated for continuous use up to 320mA DC current. Low DC resistance reduces energy loss in circuits.
Operating temperature range from -40°C to 85°C supports harsh environments. High self-resonant frequency at 43MHz suitable for RF applications. Moulded design provides mechanical protection and durability. Two-pin solder termination for easy PCB integration.
Compliant with RoHS environmental standards.
This wirewound surface mount inductor is ideal for industrial, commercial, and consumer electronics applications including communications, audio equipment, and video electronics. It contributes to circuit efficiency and signal integrity in a compact form factor.
Explore more high-quality inductors and related electronic components in the Surface Mount Inductor category on EnvMart for your design and production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.7μH with a tolerance of ±10%.
It supports a maximum DC current of 320mA, suitable for low current applications.
The maximum self-resonant frequency is 43MHz, allowing use in high frequency circuits.
It operates within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
The maximum DC resistance is 900 milliohms, which helps reduce power loss and heat generation.
This inductor is housed in a subminiature 1210 package, measuring 3.2mm in length, 2.5mm in depth, and 2mm in height.
It is constructed with a ferrite core, which contributes to its inductance stability.
It is packaged in embossed tape, which is designed for automated surface mount technology (SMT) assembly.
The termination style is solder, compatible with standard PCB manufacturing processes.
The minimum quality factor is not less than 20, indicating good performance in circuits.
Yes, it complies with RoHS environmental standards.
It is suitable for industrial, commercial, and consumer electronics applications, including communications and audio equipment.
