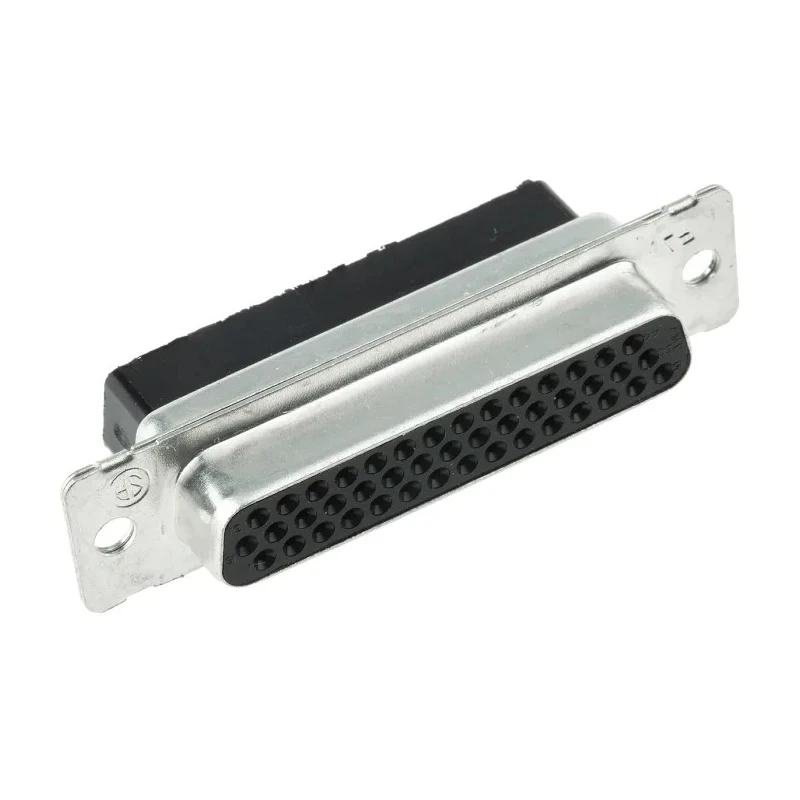

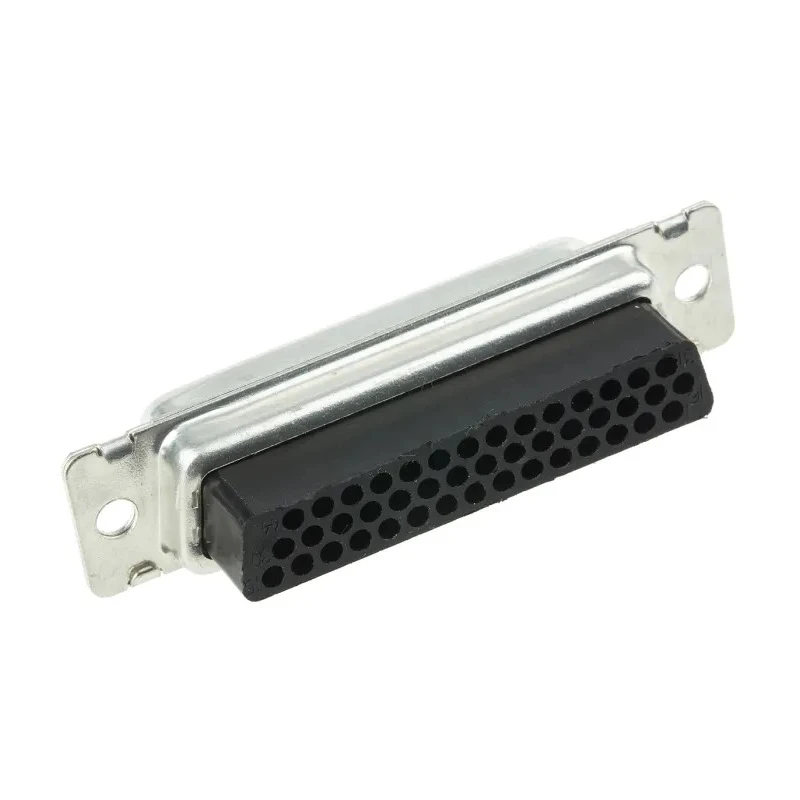

TE Connectivity AMPLIMITE HDP-22 44 Way Straight Cable D-Sub Connector with 4-40 Screw Female 1658683-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HDP-22 44 Way Straight Cable D-Sub Connector with 4-40 Screw Female 1658683-1

Name: TE Connectivity AMPLIMITE HDP-22 44 Way Straight Cable D-Sub Connector with 4-40 Screw Female 1658683-1
Brand: TE Connectivity
SKU: 140854
Price: 8.49 USD
Availability: InStock



Category D-Sub Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	1.9A
Mount Type	Cable
Housing Material	Steel
Contact Material	Phosphor Bronze
Series	AMPLIMITE HDP-22
Mounting Hardware	4-40 Screw
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Contact Plating	Gold Flash over Nickel
Number of Contacts	44
Contact Gender	Female
Connector Gender	Female
Contact Size	20
Connector Type D	D-Sub
ASSMANN WSW A-HDF 44 Way Straight Panel Mount D-Sub ConnectorBrand	ASSMANN WSW

Key Features

High density design offers approximately 65% more contacts than the standard HD-20 connectors.
Constructed with tin plated steel shells and a 94V0 black thermoplastic insert for durability.
Supports a current rating of 1.9A and 250V voltage rating for reliable signal transmission.
Features crimp termination type with crimp snap-in contacts for secure and efficient connection.
Designed for cable mounting with female connector gender and 4-40 screw mounting hardware.
Operates reliably in temperatures ranging from -55°C to 105°C.
Complies with RoHS standards to meet environmental and safety requirements.
Contact material is phosphor bronze with gold flash plating over nickel to ensure optimal conductivity and corrosion resistance.

Product Description

TE Connectivity 1658683-1 AMPLIMITE HDP-22 44 Way Straight Cable D-Sub Connector is engineered for applications needing high-density connections within compact spaces. This connector series offers approximately 65% higher density than traditional HD-20 connectors, enabling more contacts in the same physical size, ideal for military, industrial, commercial, and computer interfacing uses.

The product features a robust tin plated steel shell combined with a flame-retardant 94V0 rated black thermoplastic insert providing excellent mechanical durability and electrical insulation. Its crimp termination method ensures durable, secure connections suitable for harsh environments.

Rated for 1.9A current and up to 250V, the connector is capable of reliable operation across a temperature range of -55°C to 105°C. The female connector type uses 4-40 screw mounting hardware for firm mounting on cables.

The contacts are made from phosphor bronze plated with gold flash over nickel, enhancing conductivity and corrosion resistance. The connector is compliant with RoHS directives, supporting environmentally responsible manufacturing.

This AMPLIMITE HDP-22 connector series is fully compatible with any size 22 D-Sub Connector dimensionally compliant with MIL-C-C24303 standards and is suitable for applications requiring space-saving, high-contact-density cable connectors.

High contact density enabling space savings in compact electronic designs. Durable steel housing with flame-retardant plastic insert. Crimp snap-in contact termination for reliable connectivity. Operating temperature range from -55°C to 105°C supports harsh environments.

Compliant with RoHS for environmental safety. Gold flash over nickel plating provides corrosion resistance and excellent conductivity. Designed for cable mounting with secure 4-40 screw hardware. Suitable for military, industrial, commercial, and computer electronic applications.

The package contains a single 44 contact, straight orientation, female D-Sub cable connector from TE Connectivity's AMPLIMITE HDP-22 series, model 1658683-1. This product is new and made to high standards for demanding electronic connector needs.

Explore EnvMart's extensive selection of connectors to find compatible and complementary industrial and commercial electronic components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 1.9A and a voltage rating of 250V, ensuring reliable signal transmission.

It operates reliably in temperatures ranging from -55°C to 105°C, making it suitable for harsh environments.

This connector features a crimp termination type with crimp snap-in contacts for secure and efficient connections.

The housing is made of tin plated steel, while the contacts are made from phosphor bronze with gold flash plating over nickel for optimal conductivity and corrosion resistance.

This model has 44 contacts, offering high-density connections in compact spaces.

It requires 4-40 screw mounting hardware for firm mounting on cables.

Yes, it complies with RoHS standards to meet environmental and safety requirements.

The connector has a straight orientation, designed for cable mounting applications.

It is suitable for military, industrial, commercial, and computer interfacing applications, particularly where high contact density is required.

The contact size for this connector is 20, which is compliant with standard D-Sub connector dimensions.

The country of origin for this connector is India.

This connector is part of the AMPLIMITE HDP-22 series, known for its high-density design.
