| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQG15HS4N3S02D |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQG |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Inductance | 4.3nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 300mA |
| Pin Count | 2 |
| Maximum DC Resistance | 180mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Tin plating |
| Maximum Self Resonant Frequency | 6GHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Wirewound |
| Murata, LQG, 0402 Wirewound Surface Mount Inductor 4.3 nH ±5 % 300 mA Idc Q | 8 |

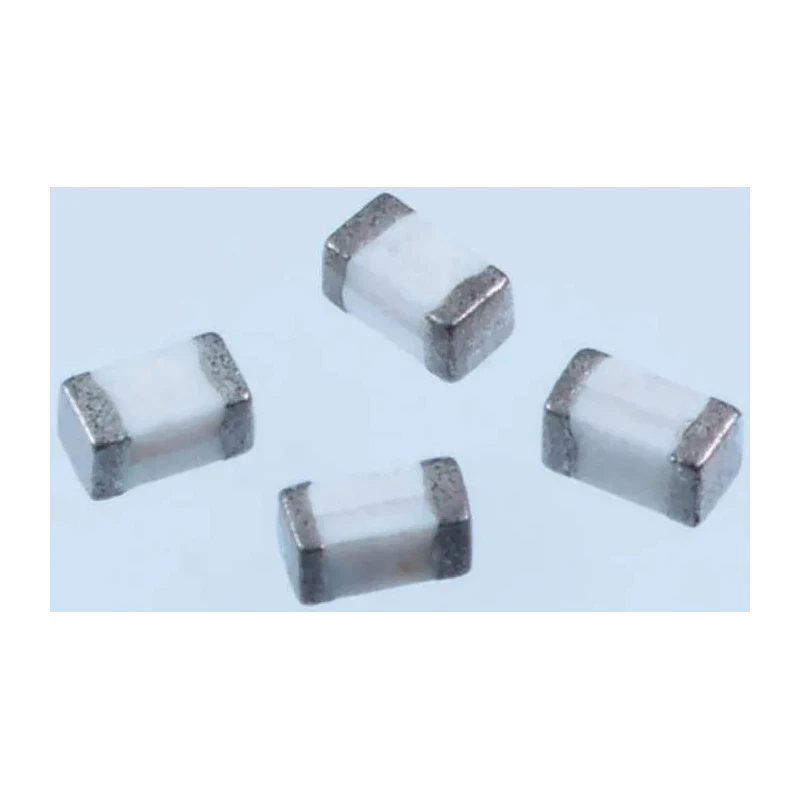

Murata LQG15HS4N3S02D is a 0402 wirewound surface mount inductor designed to deliver high-frequency performance with stable inductance and current handling capabilities. The component features an inductance value of 4.3 nH with a tolerance of ±5%, accommodating precise tuning requirements in RF and wireless communication circuits.
This inductor supports a maximum DC current of 300 mA and exhibits low DC resistance of 180 milliohms, reducing power dissipation and enhancing circuit efficiency. Its small form factor (1 mm length, 0.5 mm height and depth) allows compact PCB layouts, while the tin plating termination style ensures secure solder joints suitable for automated assembly.
Rated to operate reliably from -55°C to +125°C, it is well suited for automotive and industrial temperature ranges. The maximum self-resonant frequency of 6 GHz enables effective use in high-frequency applications such as WLAN networks, RF circuit matching, and mobile communications. The wirewound construction offers a minimum quality factor of 8, balancing performance and size well.
Compact 0402 package size with 1 mm × 0.5 mm dimensions. Inductance value of 4.3 nH with ±5% tolerance. Maximum DC current rating at 300 mA with low 180 mΩ resistance. Operating temperature range from -55°C to 125°C. Maximum self-resonant frequency rated at 6 GHz.
Wirewound construction providing a minimum quality factor of 8. Tin plating termination style for reliable soldering. RoHS compliant to meet environmental and safety standards. Applicable in choke circuits, RF matching, WLAN, and mobile communications.
This Murata LQG series inductor is a reliable component choice for engineers designing compact, high frequency, low resistance inductors suitable for advanced electronic devices and wireless communication systems. It ensures efficient energy handling and signal integrity in demanding industrial and consumer electronics applications.
