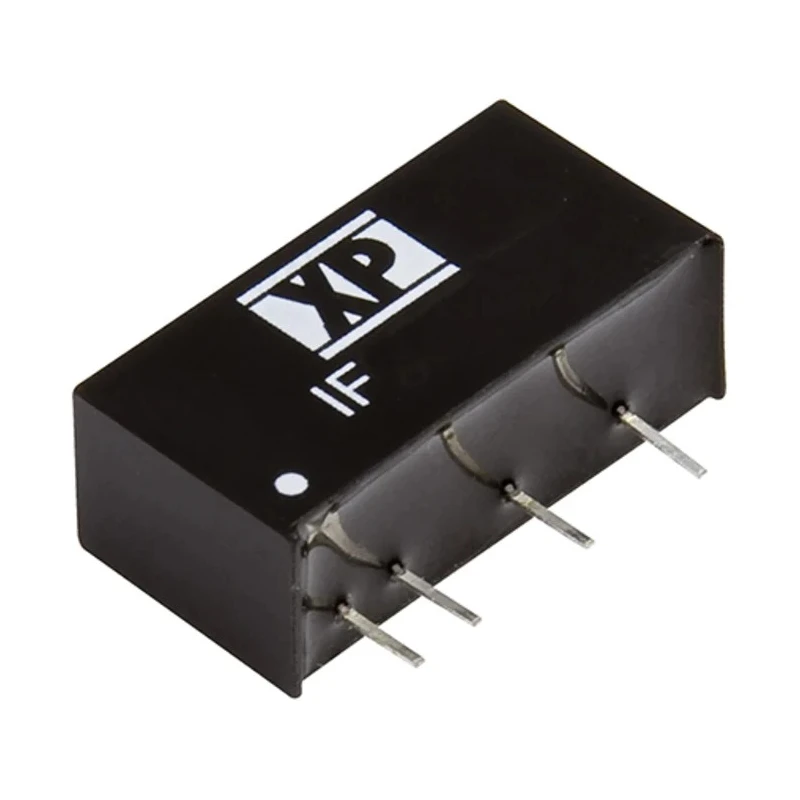

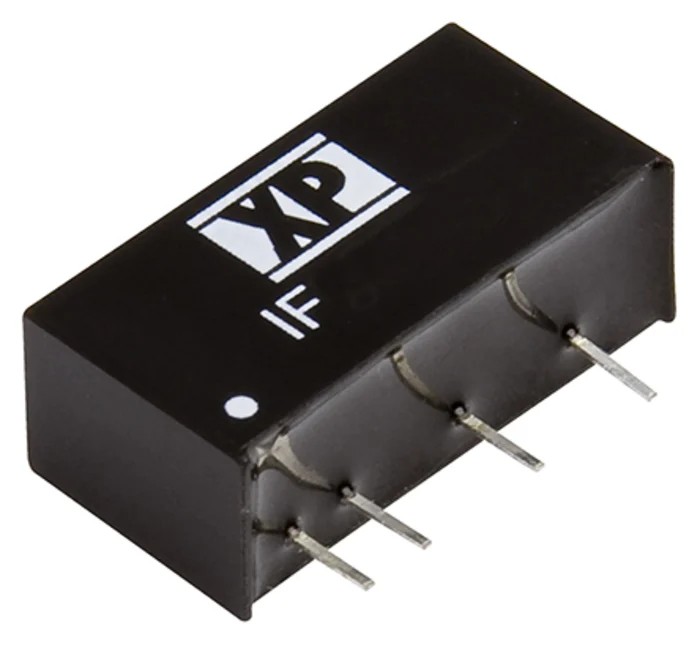

XP Power Regulated Single Output 5V DC 200mA Isolated DC-DC Converter Through Hole Package IF2405S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IF DC/DC Converter, 5V dc/ 200 mA, 26 |
| Brand | XP Power |
| Efficiency | 65% |
| Length | 19.5mm |
| Model | IF2405S |
| Depth | 10mm |
| Width | 7.2mm |
| Mount Type | Through Hole |
| Series | IF |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 4200000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 26.4V dc |
| Minimum Input Voltage | 21.6V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Operates from an input voltage range of 21.6 V to 26.4 V DC.
- Features 1000 VDC electrical isolation for enhanced safety and noise reduction.
- Compact through-hole SIP form factor measuring 19.5mm length, 7.2mm width, and 10mm depth.
- Operating temperature range from -40°C to +85°C suitable for harsh environments.
- Offers an efficiency rating of 65% and a mean time between failure (MTBF) of 4.2 million hours.
- Single regulated output with 24 pins supporting stable power conversion.
- Industry standard package ensuring compatibility with existing PCB designs.
- Designed for industrial and commercial applications requiring reliable low-power DC conversion.
Product Description
XP Power IF2405S is a highly reliable isolated DC-DC converter providing a regulated 5 V DC output at 200 mA current with maximum power of 1 W. It operates with an input voltage range of 21.6 V to 26.4 V DC and offers 1000 VDC isolation voltage ensuring electrical safety and minimal interference in sensitive circuits.
Manufactured in Taiwan (Province Of China), this converter comes in a standard SIP through-hole package with dimensions of 19.5mm length, 7.2mm width, and 10mm depth, making it suitable for integration into compact electronic assemblies.
The IF2405S supports a broad operating temperature range from -40°C up to +85°C, allowing dependable performance in harsh industrial, laboratory, and commercial environments. Its 65% efficiency rating offers a balance between power consumption and thermal management.
This product features a single output with 24 pins for easy interfacing. The converter’s isolation rating of 1000 VDC safeguards connected components from voltage spikes and noise.
With a mean time between failure (MTBF) of 4,200,000 hours, the IF series from XP Power is engineered for long-term reliability and continuous operation in critical power supply applications.
Operates on 21.6 - 26.4 V DC input voltage. 5 V DC, 200 mA regulated isolated output. Isolation voltage of 1000 V DC for safety. Through hole SIP package, 19.5mm × 7.2mm × 10mm dimension. Wide operating temperature range: -40 °C to 85 °C.
65% efficient power conversion. Single output with 24 pins. MTBF of 4.2 million hours.
This DC-DC converter is ideal for industrial, instrumentation, measurement, and embedded electronics requiring regulated and isolated low power DC supply. It ensures improved power integrity and noise rejection within complex electrical systems and devices.
Explore the wide range of DC-DC Converters at EnvMart to find the right solution for your power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 21.6 V to 26.4 V DC.
It provides a regulated output of 5 V DC with a maximum current of 200 mA.
The converter features an isolation voltage of 1000 VDC, enhancing safety and reducing noise interference.
This unit has a compact size with dimensions of 19.5 mm in length, 7.2 mm in width, and 10 mm in depth.
The efficiency rating of the IF2405S is 65%.
It has a mean time between failure (MTBF) of 4.2 million hours, indicating its reliability for long-term use.
The operating temperature range is from -40°C to +85°C, suitable for harsh environments.
This converter features a single regulated output.
It is designed for through-hole mounting, making it compatible with standard PCB designs.
It is suitable for industrial, instrumentation, measurement, and embedded electronics requiring regulated and isolated low power DC supply.
The converter comes in a standard SIP (Single In-line Package) package type.
This model is part of the IF series from XP Power.
