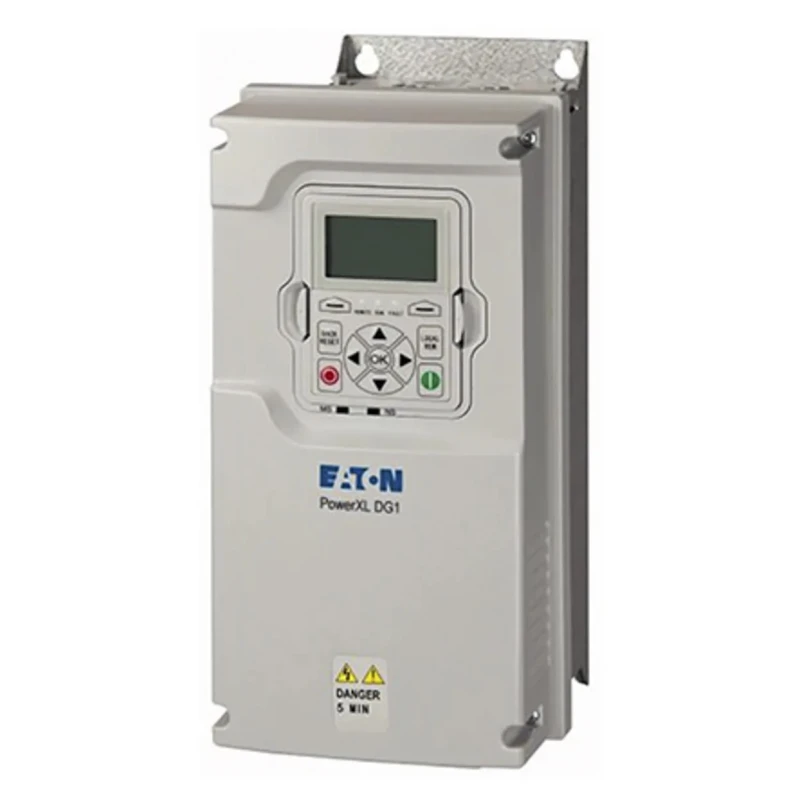

Eaton 5.5 kW 3 Phase Inverter Drive DG1 Series 400V AC 16A 9702-2101-00P DG1-34012FB-C54C

Eaton 9702-2101-00P DG1-34012FB-C54C is a 5.5 kW inverter drive designed for three-phase asynchronous motors, operating at 400V AC and providing a maximum output current of 16A. This variable frequency drive (VFD) from the DG1 series is specially engineered for demanding commercial and industrial applications such as pumps, fans, and conveyor belts.

The drive features a wall mount design with overall compact dimensions of 167.8 mm length, 419.1 mm width, and 244.7 mm depth. It is rated with an IP54 ingress protection level, making it suitable for various installation environments. With an operating temperature range from -10°C up to +60°C, it ensures reliable performance under diverse conditions.

Equipped with an LCD display and keypad, the Eaton DG1 drive allows intuitive control and monitoring without requiring specialist training. Standard EMI/RFI filtering minimizes electrical noise ensuring compliance with electromagnetic standards. Control modes include V/Hz and sensorless vector speed control, providing precise motor speed regulation.

The DG1 incorporates active energy control algorithms, 5% DC choke from frame 1 upwards, input surge protection, and a brake chopper circuit, enhancing efficiency and safety. High overload capacity and conformal coated circuit boards ensure durability. The drive also supports multiple communication protocols and offers versatile I/O options for integration into industrial automation systems.

Certified by UL, EAC, ISO 9001, RoHS, RCM, and cUL, this Eaton DG1 inverter drive is a reliable, energy-saving solution for industrial motor control needs. It is made in China and aligns with sustainability goals by delivering improved energy efficiency.

Designed for industrial and commercial motor speed control applications. Wall mountable with compact dimensions and an IP54 rating. Variable frequency drive supporting asynchronous motors. Easy-to-use LCD display and keypad interface.

EMI/RFI filters included to reduce interference. Supports V/Hz and sensorless vector speed control. Wide operating temperature range from -10°C to +60°C. Extensive onboard communication protocols and flexible I/O. Certified to UL, EAC, ISO 9001, RoHS and other standards.

Energy-saving active control algorithm and DC choke included.

This Eaton inverter drive is ideal for industrial automation, HVAC, manufacturing, water treatment, and agricultural applications requiring reliable and efficient motor control. To explore more products in Inverter Drives and related industrial automation systems, continue browsing the extensive EnvMart catalog.
