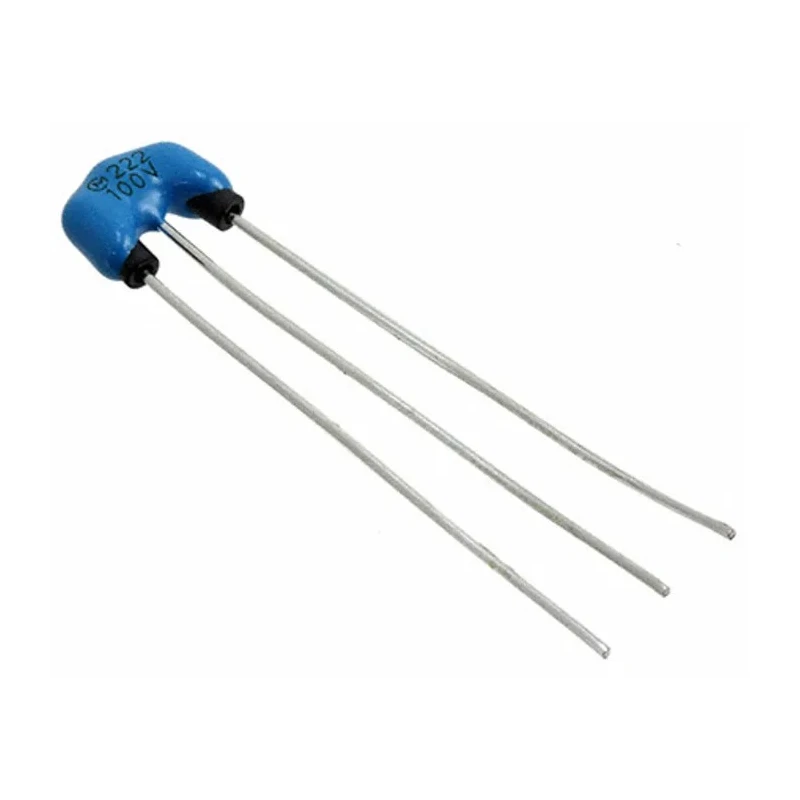

Murata EMI Filter Through Hole Radial Q55B Package 100V DC 6 A 1 MHz DSS1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 7.5mm |
| Length | 8.5mm |
| Model | DSS1 |
| Depth | 3.5mm |
| Packaging | Ammo Pack |
| Mount Type | Through Hole |
| Operating Frequency | 1MHz |
| Series | DSS1 |
| Maximum Operating Temperature | 85°C |
| Capacitance | 1nF |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 6A |
| Maximum Voltage | 100V dc |
| Standards/Approvals | RoHS |
| Package/Case | Q55B |
| Termination Style | Radial |
Key Features
- The filter is designed for signal filtering applications requiring compact three-terminal capacitors.
- It supports a wide capacitance variation of 1nF for flexible frequency selection.
- The radial termination and through hole mount enable reliable PCB insertion and soldering.
- Operating temperature range is from -40°C to 85°C ensuring durability in various environments.
- Package dimensions are compact with a length of 8.5 mm, height of 7.5 mm, and depth of 3.5 mm.
- It complies with RoHS standards for environmentally safe electronic components.
- Manufactured in Japan ensuring high quality and reliability.
Product Description
Murata DSS1 EMI Filter model DSS1NB32A102Q91A is a compact, high-performance signal filter featuring a three-terminal capacitor design. It is engineered for use in electronic components requiring EMI suppression in industrial, electronic, and communication equipment.
This EMI filter supports a maximum voltage of 100V DC and a maximum current rating of 6 A, operating efficiently at a frequency of 1 MHz. The radial termination style along with the through hole mount type facilitates secure and stable PCB mounting, suitable for automated assembly.
The component’s package type is Q55B, providing a compact form factor with dimensions of 8.5 mm length, 7.5 mm height, and 3.5 mm depth, ideal for space-constrained layouts.
Designed to operate between temperatures of -40°C and 85°C, it is robust under diverse environmental conditions. The capacitance value of 1nF allows for effective high-frequency noise filtering, making it suitable for industrial, electronic manufacturing, communication, and power supply systems.
The product meets RoHS compliance standards, ensuring it is free from hazardous substances. Manufactured in Japan, this component guarantees superior build quality and dependability.
The filter is a three-terminal capacitor enabling high-frequency EMI noise suppression. It’s suitable for industrial electronics, communication devices, and power supply modules. The radial lead and through hole mounting permit easy integration into PCBs.
Its compact Q55B package helps save PCB space without compromising performance. Wide operating temperature range supports diverse working environments. Compliance with RoHS supports environmentally friendly manufacturing.
Made in Japan for trusted quality assurance. Explore the Signal Filters category on EnvMart to find compatible EMI Filters and related signal conditioning components from leading manufacturers including Murata.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this EMI filter is 100V DC.
This model can handle a maximum current of 6 A.
The operating frequency of this EMI filter is 1 MHz.
The Q55B package dimensions are 8.5 mm in length, 7.5 mm in height, and 3.5 mm in depth.
The capacitance value of this filter is 1nF.
The operating temperature range for this EMI filter is from -40°C to 85°C.
This model uses a through hole mounting type.
Yes, this EMI filter complies with RoHS standards, ensuring it is free from hazardous substances.
This EMI filter is manufactured in Japan.
The termination style of this filter is radial.
This EMI filter is suitable for industrial electronics, communication devices, and power supply modules.
This EMI filter comes in an ammo pack packaging.
