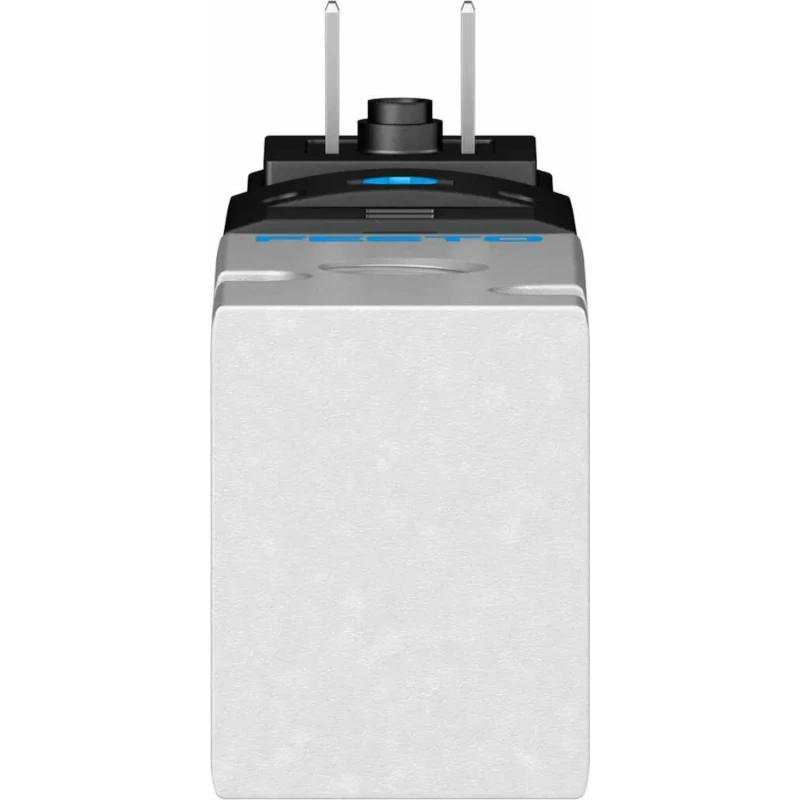

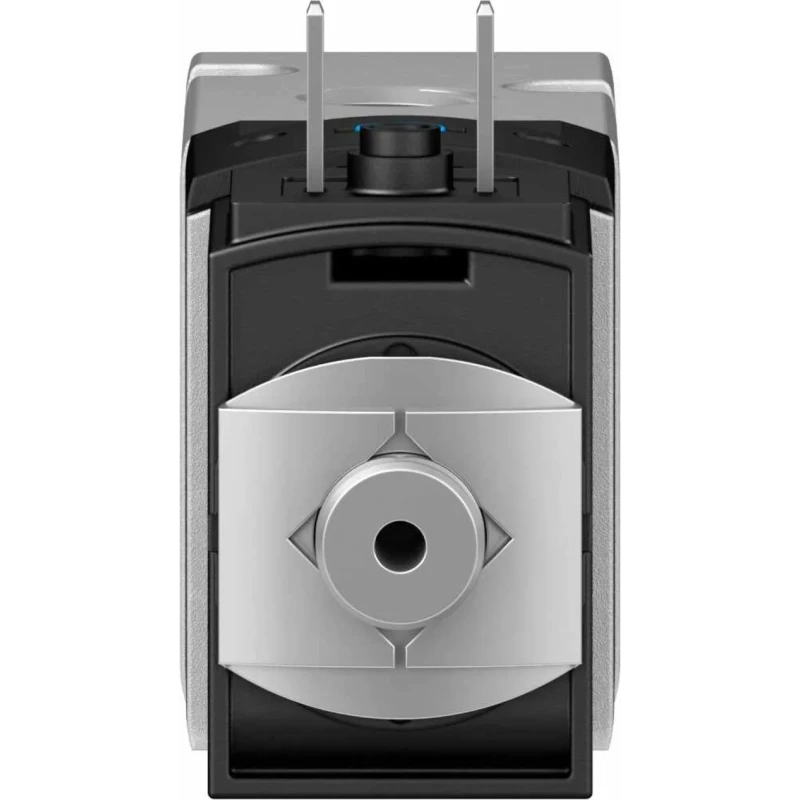

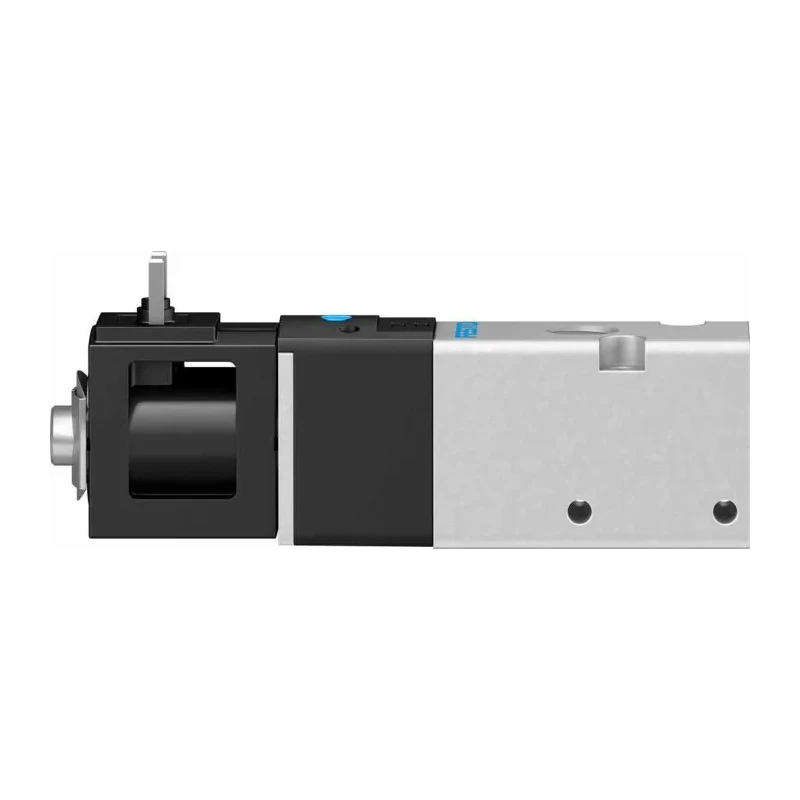

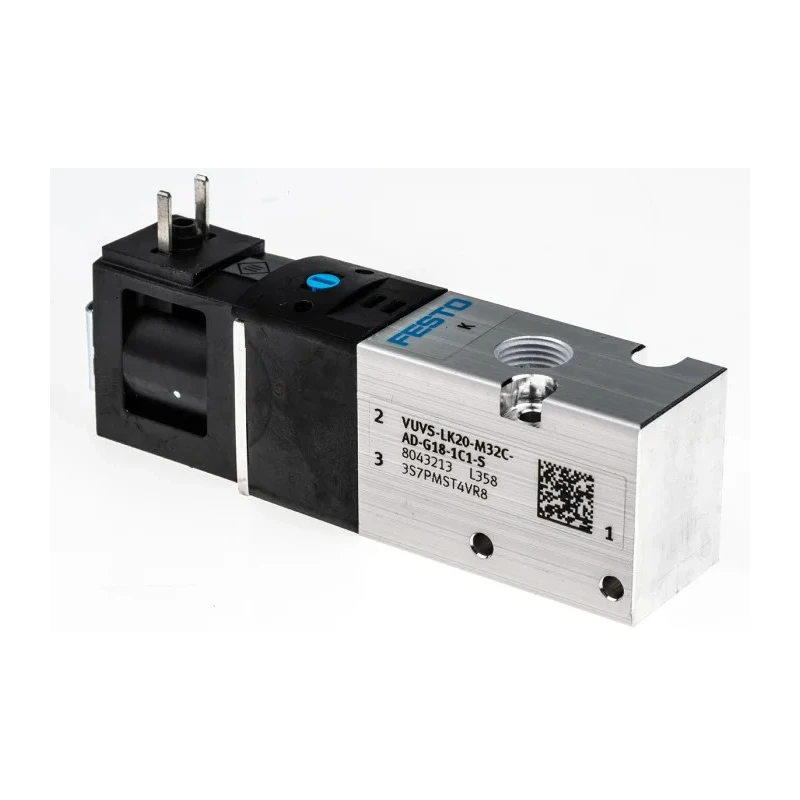

Festo 3/2 Solenoid Valve G 1/8 Port Size Aluminium Alloy Body 24V dc VUVS-LK20-M32C-AD-G18-1C1-S
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 8 bar |
| Model | VUVS-LK20-M32C-AD-G18-1C1-S |
| Width | 21mm |
| Mount Type | In-Line |
| Series | VUVS |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 550L/min |
| Standards/Approvals | RoHS, ISO, IEC, EN |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 1.5bar |
| Valve Function | 3/2 |
| Electrical Connection Type | Type C |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 2.4W |
| Festo Pneumatic Solenoid Valve - 3/2 NC Solenoid G 1/8 VUVG Series 24V dcBrand | Festo |
Key Features
- Durable aluminium alloy body ensures long-lasting performance.
- Monostable normally closed valve design for individual or manifold use.
- Maximum operating pressure of 8 bar suits diverse industrial applications.
- IP65 rated for dust tightness and protection against low-pressure jets.
- High flow capacity of up to 550 litres per minute for efficient operation.
- Operates across temperature range from -5°C to 50°C.
- Equipped with nitrile rubber (NBR) seals for airtight operation.
- Electrical activation via Type C connection for easy integration.
Product Description
Festo VUVS-LK20-M32C-AD-G18-1C1-S is a 3/2 solenoid valve designed for effective pneumatic system air flow control. Featuring a G 1/8 female port size and aluminium alloy body, it provides robust, corrosion-resistant durability for demanding industrial environments.
This 24V dc normally closed solenoid valve is monostable; it opens upon electrical actuation and reliably closes when power is removed. The valve’s design enables it to be used individually or incorporated into manifolds, providing versatile installation options including inline mounting.
With a maximum operating pressure of 8 bar and a flow rate capacity of 550 litres per minute, this valve supports a wide range of pneumatic applications including ventilation systems, automotive assembly plants, agricultural equipment, and general manufacturing processes. The valve maintains performance across temperatures from -5°C to 50°C.
The sealing is achieved with nitrile rubber (NBR), ensuring airtight operation and longevity. The electrical connection uses a Type C interface, facilitating simple and reliable installation. Its IP65 ingress protection rating certifies dust tightness and resilience against low-pressure water jets, making it suitable for industrial settings requiring robustness and reliability.
The valve body consists of corrosion-resistant aluminium alloy. Three ports and two positions ensure efficient flow control. Compatible with pneumatic cylinders, turbines, tubes, and diaphragms for broad utility. Its compact width of 21 mm aids in flexible mounting and space-saving assembly.
Rated power consumption of 2.4W ensures efficient operation.
This solenoid valve is manufactured in China and complies with RoHS, ISO, IEC, and EN standards, ensuring quality and safety adherence. Ideal for industrial, agricultural, HVAC, and manufacturing pneumatic applications requiring reliable flow control components.
For further exploration of pneumatic valve solutions, browse the extensive EnvMart portfolio of Pneumatic Solenoid Valves and related industrial fittings, engineered for precision and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 8 bar.
This model has a maximum flow rate capacity of 550 litres per minute.
It features a G 1/8 female port size.
The operating temperature range is from -5°C to 50°C.
It uses a Type C electrical connection for activation.
The valve body is made from aluminium alloy, providing corrosion resistance.
This solenoid valve has 3 ports and 2 positions.
It is equipped with nitrile rubber (NBR) seals for airtight operation.
The rated power consumption of the solenoid is 2.4W.
It complies with RoHS, ISO, IEC, and EN standards.
Yes, it can be used individually or incorporated into manifolds for versatile installation options.
