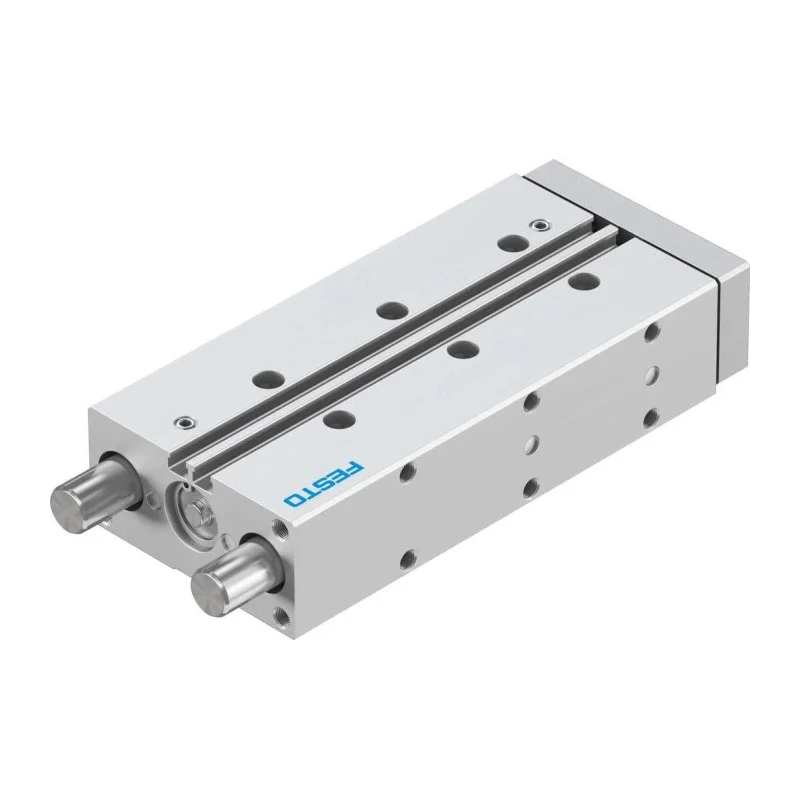

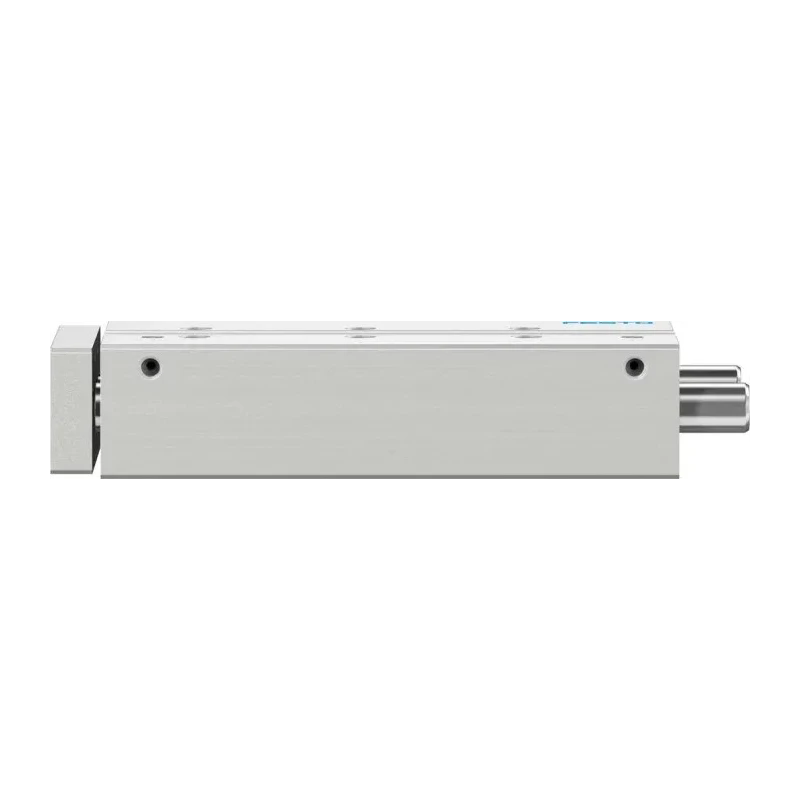

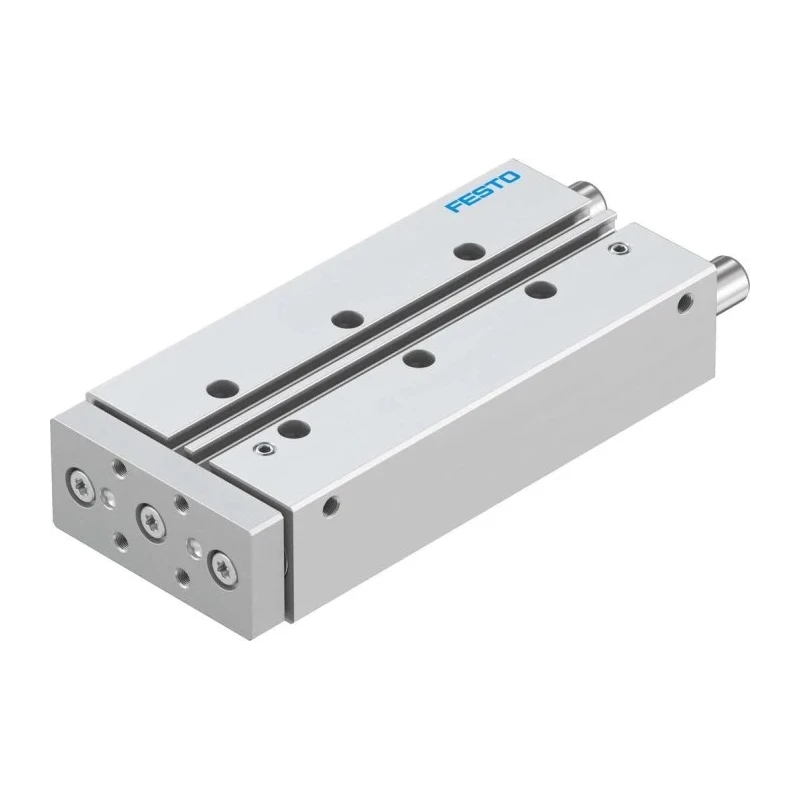

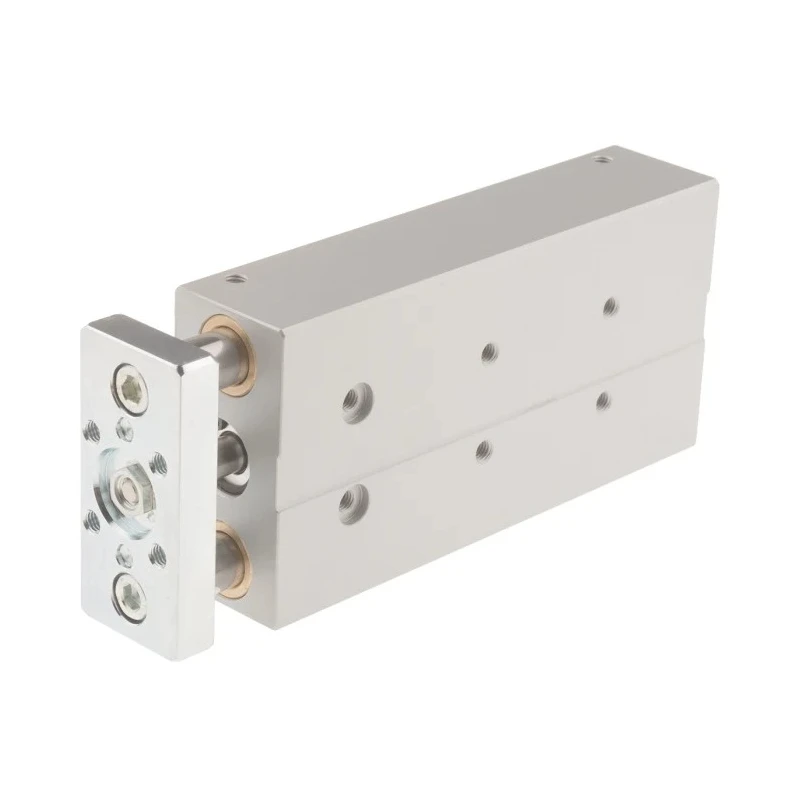

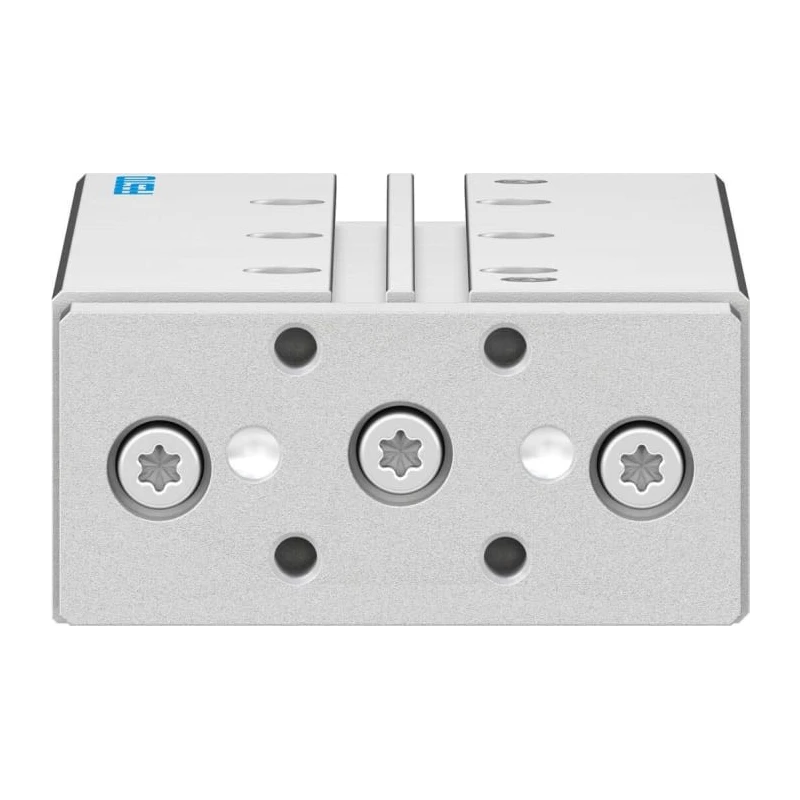

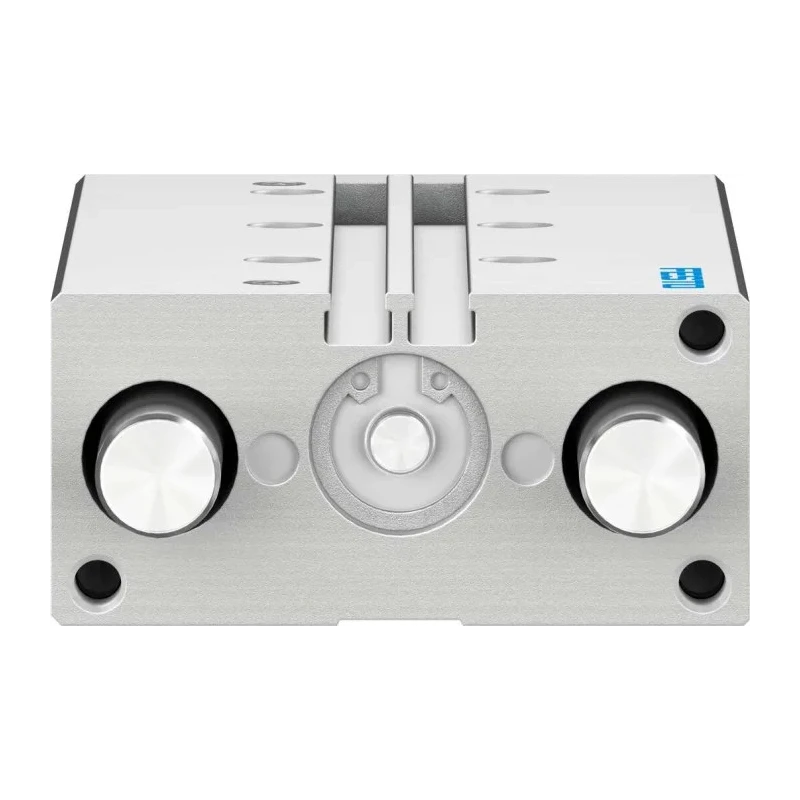

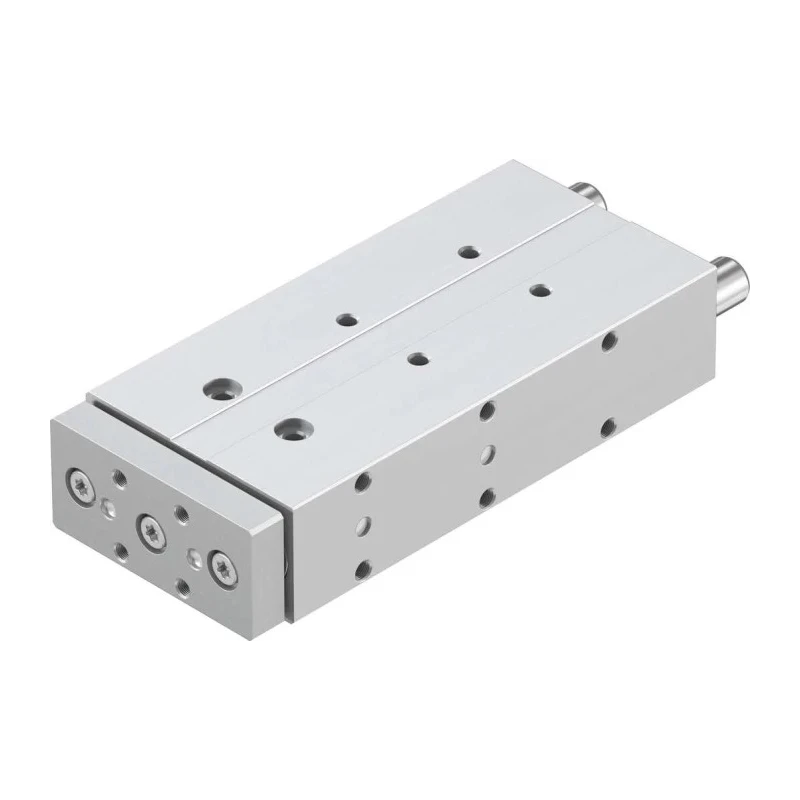

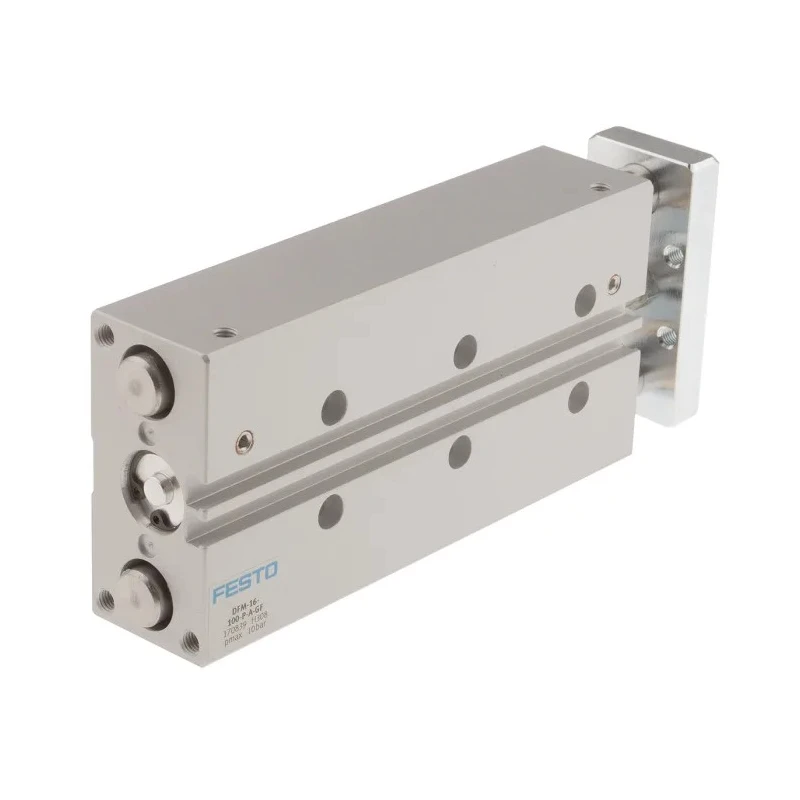

Festo Pneumatic Guided Cylinder 16mm Bore, DFM Series, 100 mm Stroke, Double Acting, Through Hole Mount DFM-16-100-P-A-GF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 32mm |
| Length | 167mm |
| Model | DFM-16-100-P-A-GF |
| Gross Weight | 1.1kg |
| Width | 67mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 100mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L, Cleanroom Class 6 |
| Cushioning Type | Elastic |
| Guide Type | Slide Bearing |
| Maximum Piston Speed | 0.8m/s |
| Piston Rod Thread Size | M5 |
| Standards/Approvals ISO 8573-1 | 2010 (7:4:4), RoHS, VDMA24364-B1/B2-L, Cleanroom Class 6 |
Key Features
- Constructed with a wrought aluminium alloy body for durability and lightweight performance.
- Operates at maximum pressure of 10 bar with elastic cushioning for smooth piston movement.
- Equipped with a slide bearing guide and single rod type for lateral force resistance.
- Suitable for industrial automation, food industry, manufacturing, and packaging systems.
- Wide operating temperature range from -20°C to 80°C ensures reliable performance in various environments.
- Standard M5 piston rod thread size simplifies integration in pneumatic systems.
- Compact size with dimensions 67mm width, 32mm height, and 167mm length for versatile installation.
- Lightweight design weighing approximately 1.1 kg for efficient automation processes.
Product Description
Festo DFM-16-100-P-A-GF Pneumatic Guided Cylinder is engineered for precise positioning and handling tasks in industrial automation. Featuring a 16mm bore diameter and 100 mm stroke length, this double acting cylinder offers reliable performance at pressures up to 10 bar. Its wrought aluminium alloy body guarantees strength while maintaining a lightweight profile, making it ideal for various manufacturing, food, and packaging applications.
The pneumatic guided cylinder is designed with an elastic cushioning system that prevents piston damage by absorbing impact during operation. The slide bearing guide and single rod design provide excellent resistance to lateral forces, making it suitable for side-mounted configurations. Operating within a temperature range of -20°C to 80°C, it ensures consistent functioning in diverse working environments.
Additional features include a standard M5 piston rod thread size for easy installation and compliance with ISO 8573-1:2010, RoHS, and other quality standards ensuring durability and environmental safety. Its compact dimensions of 67mm width, 32mm height, and 167mm length allow for flexible use in constrained spaces.
Constructed with a wrought aluminium alloy body for durability and lightweight performance. Operates at maximum pressure of 10 bar with elastic cushioning to reduce piston shocks. Slide bearing guide and single rod provide resistance against lateral forces.
Standard M5 piston rod thread for easy system integration. Wide operating temperature range ensures reliable use in various conditions. Compliant with ISO 8573-1:2010, RoHS, VDMA, and Cleanroom Class 6 standards. Compact dimensions and low weight facilitate versatile mounting.
This Pneumatic Guided Cylinder is indispensable for applications requiring precise control such as automated assembly lines, packaging, and food processing industries. Its robust design and smooth operation make it a reliable choice for high-performance industrial environments.
Explore the comprehensive range of Industrial Tools & Equipment on EnvMart for related pneumatic solutions to enhance your automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
This unit has a stroke length of 100 mm.
The bore diameter of this pneumatic guided cylinder is 16 mm.
The dimensions of this model are 67 mm in width, 32 mm in height, and 167 mm in length.
It is equipped with elastic cushioning to reduce piston shocks during operation.
The gross weight of this model is approximately 1.1 kg.
This pneumatic cylinder operates within a temperature range of -20°C to 80°C.
It features a single rod type for effective lateral force resistance.
It complies with ISO 8573-1:2010, RoHS, VDMA24364-B1/B2-L, and Cleanroom Class 6 standards.
This pneumatic guided cylinder is designed for through hole mounting.
The maximum piston speed for this model is 0.8 m/s.
It is suitable for applications in industrial automation, food industry, manufacturing, and packaging systems.
