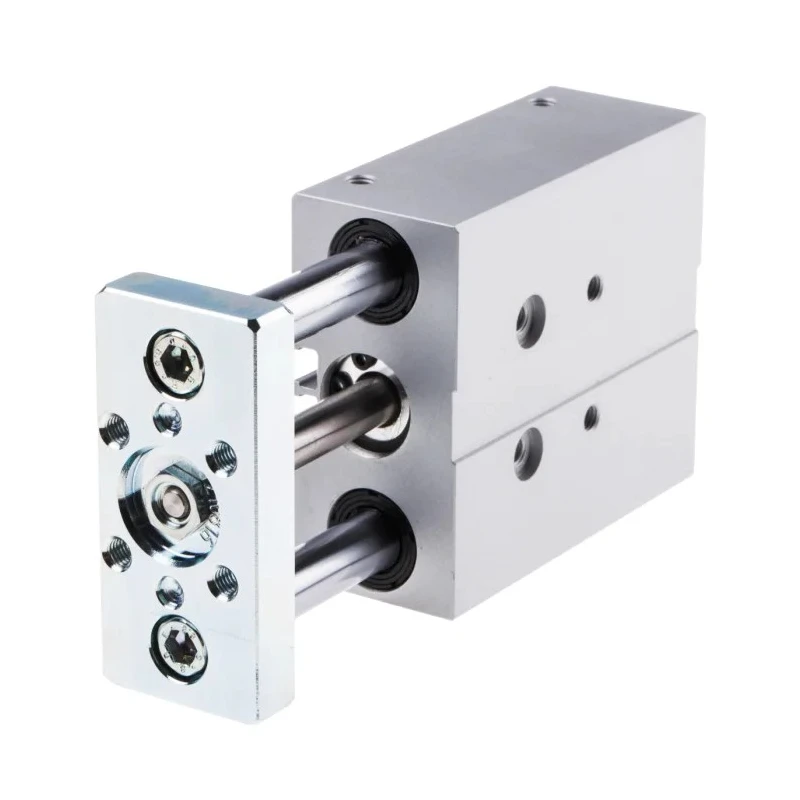

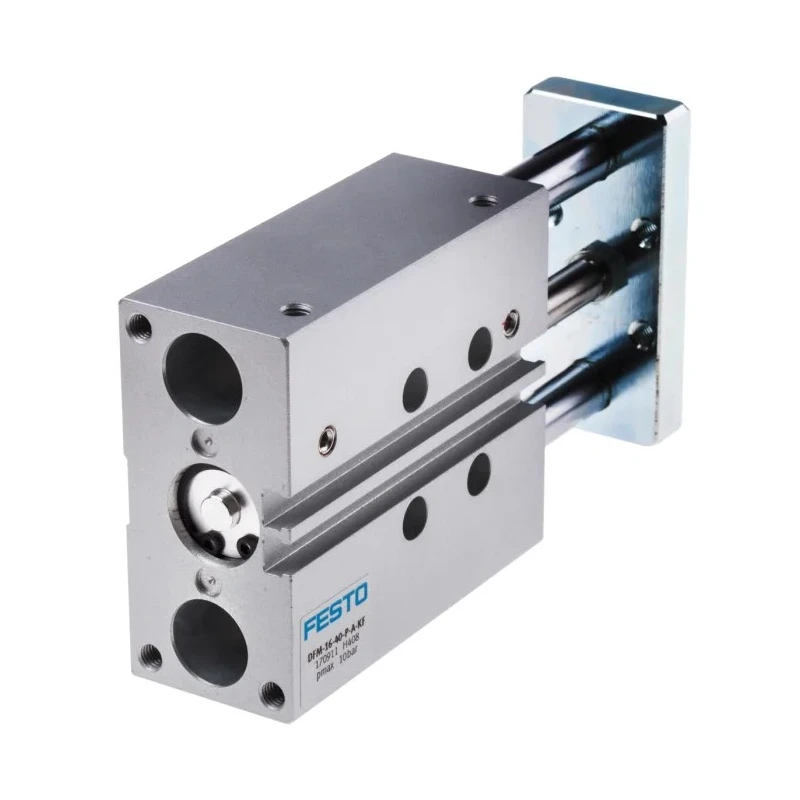

Festo Pneumatic Guided Cylinder 16mm Bore, DFM Series, 40 mm Stroke, Double Acting, Through Hole Mount DFM-16-40-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 32mm |
| Length | 107mm |
| Model | DFM-16-40-P-A-KF |
| Gross Weight | 647g |
| Width | 67mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 40mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing |
| Maximum Piston Speed | 0.8m/s |
| Piston Rod Thread Size | M5 |
| Standards/ApprovalsCleanroom Class 6, ISO 8573-1 | 2010 (7:4:4), RoHS, VDMA24364-B1/B2-L |
Key Features
- The cylinder features a double acting action type for reliable push and pull operations.
- Constructed with a robust wrought aluminium alloy body ensuring durability and lightweight.
- Equipped with ball bearing guides and recirculating ball bearings to withstand torque loads effectively.
- Includes flexible elastomer cushioning to reduce noise and increase service life.
- Maximum operating pressure is rated at 10 bar with operating temperature ranging from -5°C to 60°C.
- Mount type is through hole for secure and flexible installation.
- Stroke length of 40 mm and piston rod thread size of M5 enhance precise linear movement.
- Compact dimensions of 107 mm length, 67 mm width, and 32 mm height facilitate application in constrained spaces.
Product Description
Festo DFM-16-40-P-A-KF Pneumatic Guided Cylinder comprises a combined drive and guide actuator with a 16mm bore and 40 mm stroke length. This double acting pneumatic cylinder incorporates recirculating ball bearings for guiding, making it highly resistant to torque and lateral forces. Its wrought aluminium alloy body delivers a compact, lightweight yet sturdy construction suitable for demanding industrial applications.
The cylinder features through hole mounting and flexible supply ports located on the top and side for versatile installation options. Cushioning plates made from elastomer materials reduce operational noise and extend component life. Operating reliably from -5°C to 60°C, it supports a maximum operating pressure of 10 bar and a piston speed of up to 0.8 m/s.
Its precision ball bearing guides and single rod design support tasks involving high loads, such as clamping, stopping, lifting, and material handling. The compact size with dimensions length 107 mm, width 67 mm, and height 32 mm enables integration in constrained industrial setups. The piston rod thread size is M5, providing a sturdy connection interface.
The cylinder meets stringent standards including Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), RoHS compliance, and VDMA24364-B1/B2-L approvals, ensuring suitability for clean and regulated manufacturing environments.
The cylinder integrates drive and guide functions into a single housing for efficient operation. Recirculating ball bearings ensure smooth guidance under torque loading conditions. Flexible port options allow top or side air supply for customized mounting.
Aluminium body construction offers high strength with low weight. Elastomer cushioning plates minimize noise and enhance durability. Through hole mount provides secure and adjustable positioning. Suitable for industrial automation, manufacturing, and material handling applications.
Compliance with international standards guarantee quality and environmental safety.
Festo Pneumatic Guided Cylinders like the DFM-16-40-P-A-KF are tailored for high reliability and precision in demanding environments. Discover more pneumatic cylinders and actuators at EnvMart for your industrial automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 16 mm.
It has a maximum operating pressure of 10 bar.
The stroke length is 40 mm.
The operating temperature range is from -5°C to 60°C.
It features a through hole mount for secure installation.
The body is constructed from a wrought aluminium alloy, ensuring a lightweight yet sturdy design.
It is equipped with elastomer cushioning to reduce noise and enhance service life.
The maximum piston speed is 0.8 m/s.
It complies with Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), RoHS, and VDMA24364-B1/B2-L standards.
The gross weight of this model is 647 g.
It utilizes a ball bearing guide system for effective torque load resistance.
It is suitable for applications involving clamping, stopping, lifting, and material handling in industrial automation.
