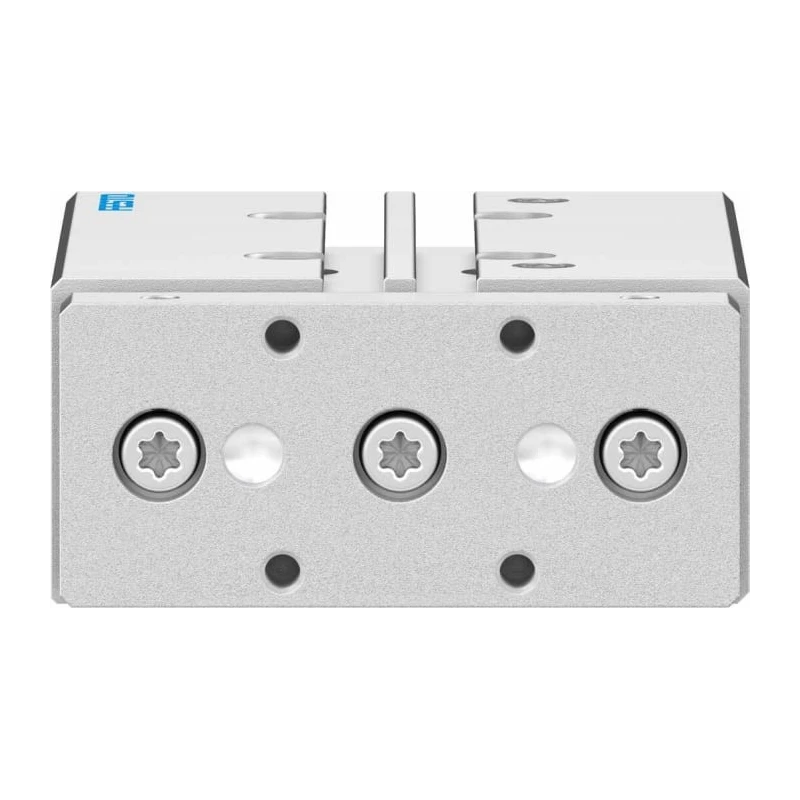

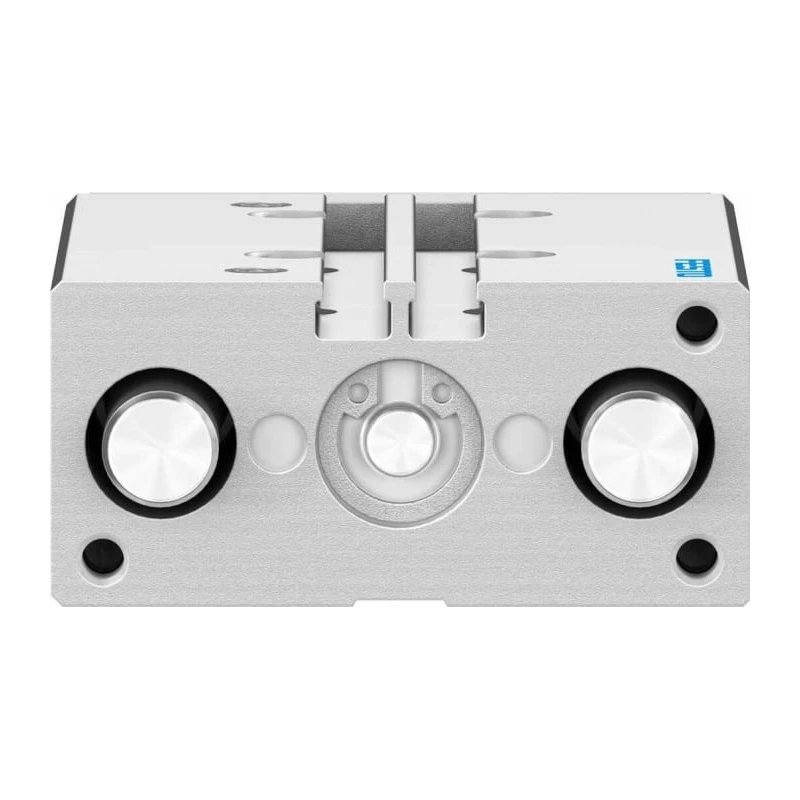

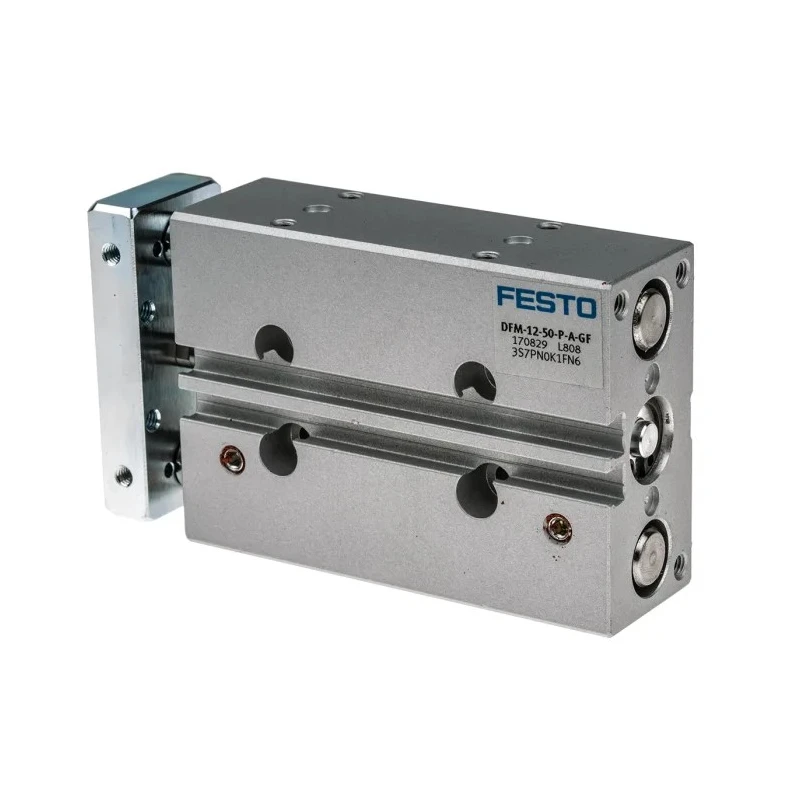

Festo Pneumatic Guided Cylinder 12mm Bore 50mm Stroke Double Acting Aluminium Body DFM-12-50-P-A-GF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 28mm |
| Length | 105mm |
| Model | DFM-12-50-P-A-GF |
| Gross Weight | 544g |
| Width | 60mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 50mm |
| Bore Diameter | 12mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L |
| Cushioning Type | Elastic |
| Guide Type | Slide Bearing |
| Maximum Piston Speed | 0.8m/s |
| Piston Rod Thread Size | M5 |
| Standards/Approvals Cleanroom Class 6, ISO 8573-1 | 2010 (7:4:4), RoHS, VDMA24364-B1/B2-L |
Key Features
- Constructed with wrought aluminium alloy for corrosion resistance and durability.
- Operates at a maximum pressure of 10 bar with a piston speed up to 0.8m/s.
- Equipped with elastic cushioning for noise reduction and extended service life.
- Designed with slide bearing guide type and single rod for precise linear motion.
- Suitable for industrial automation, assembly lines, and packaging applications.
- Compact dimensions of length 105mm, width 60mm, and height 28mm optimize space usage.
- Functions reliably in temperature ranges from -20°C to 80°C.
- Mounting through hole type with supply ports on top and sides for flexible installation.
Product Description
Festo DFM-12-50-P-A-GF Pneumatic Guided Cylinder is a compact, robust double acting cylinder with a 12mm bore and 50mm stroke linearly actuating via pressurised air. It integrates the drive and guiding functions into one unit, providing smooth, accurate motion for heavy load industrial applications.
The body is made from high-quality wrought aluminium alloy, ensuring resistance against corrosion and mechanical stresses. The elastic cushioning system reduces noise during piston operation while enhancing the cylinder's longevity. Its slide bearing guide mechanism guarantees precise linear movements supported by a single rod with an M5 piston rod thread.
This component supports a maximum operating pressure of 10 bar and piston speeds up to 0.8 meters per second. It is engineered for durability and performance within a temperature range from -20°C to 80°C, making it apt for demanding manufacturing, assembly line, and packaging process automation tasks.
Installation flexibility is achieved by through hole mounting, with supply ports located both on the top and sides, allowing overhead or bar clamping configurations. The compact dimensions of 105mm length, 60mm width, and 28mm height facilitate space-saving integration in equipment setups.
Constructed with wrought aluminium alloy providing corrosion resistance. Double acting operation for reliable linear motion. Elastic cushioning to minimize noise and extend life. Slide bearing guide and single rod design for precision.
Compact dimensions suitable for limited space installation. Suitable for industrial automation and packaging. Operating temperature range from -20°C to 80°C. Mount type through hole with versatile port placement.
This pneumatic guided cylinder is ideal for industrial applications including clamping, stopping, and lifting operations requiring high-load capacity and accurate positioning. It complies with Cleanroom Class 6 and ISO 8573-1:2010 (7:4:4) standards and is RoHS certified. Manufactured in Germany, ensuring premium quality and precision engineering.
Explore similar Pneumatic Guided Cylinders and components in the Festo range on EnvMart for enhanced industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
This unit has a stroke length of 50mm.
The dimensions are 105mm in length, 60mm in width, and 28mm in height.
It is equipped with elastic cushioning to reduce noise and extend service life.
The bore diameter is 12mm.
The maximum piston speed is 0.8 meters per second.
The body is constructed from wrought aluminium alloy, providing corrosion resistance.
It operates reliably within a temperature range of -20°C to 80°C.
It features a through hole mounting type with supply ports located on the top and sides.
It complies with Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), and is RoHS certified.
This model operates as a double acting cylinder.
The gross weight of this pneumatic cylinder is 544g.
