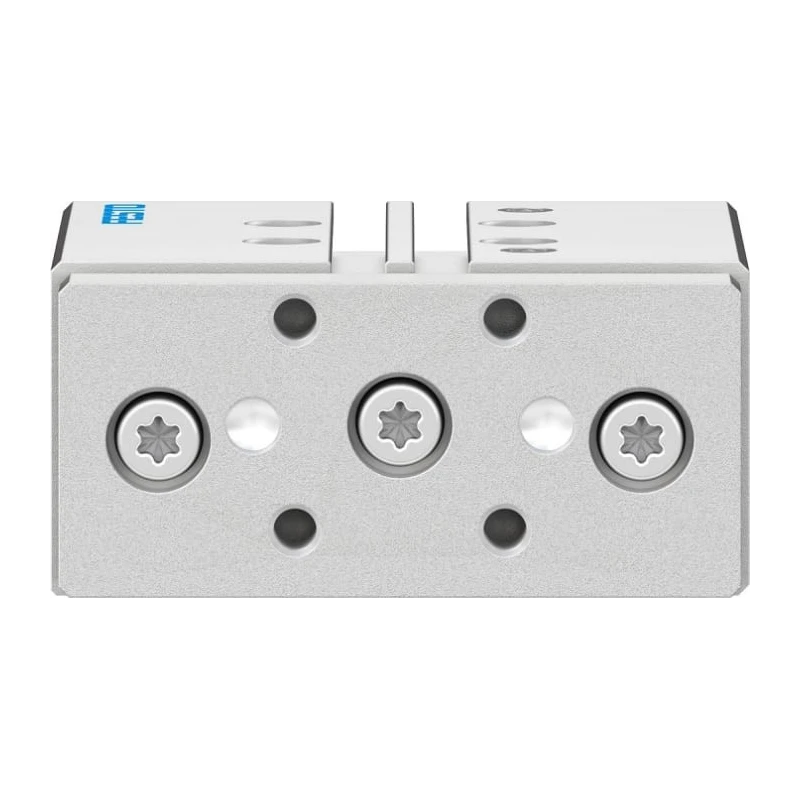

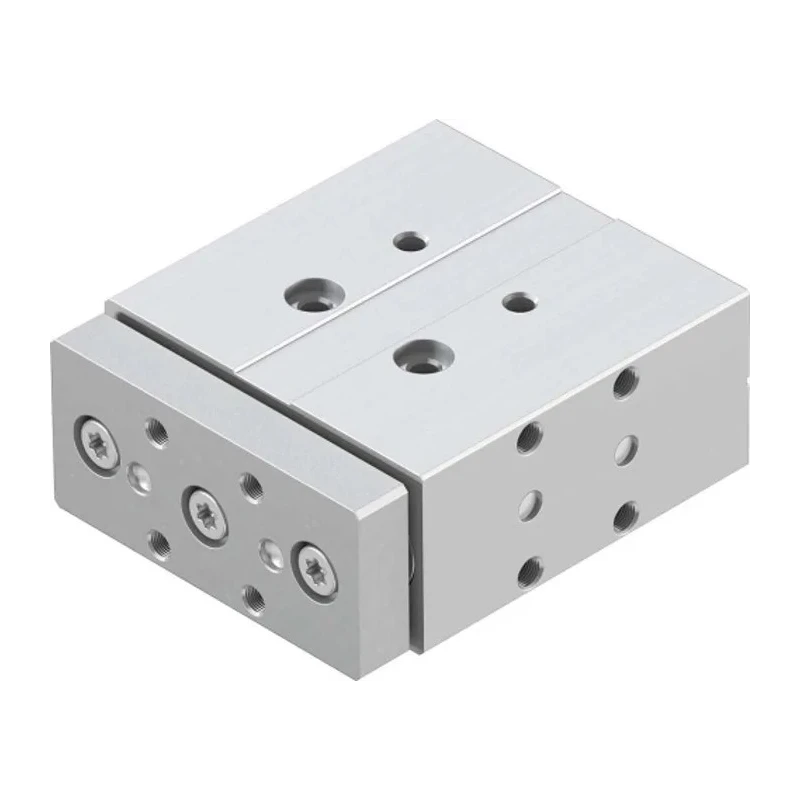

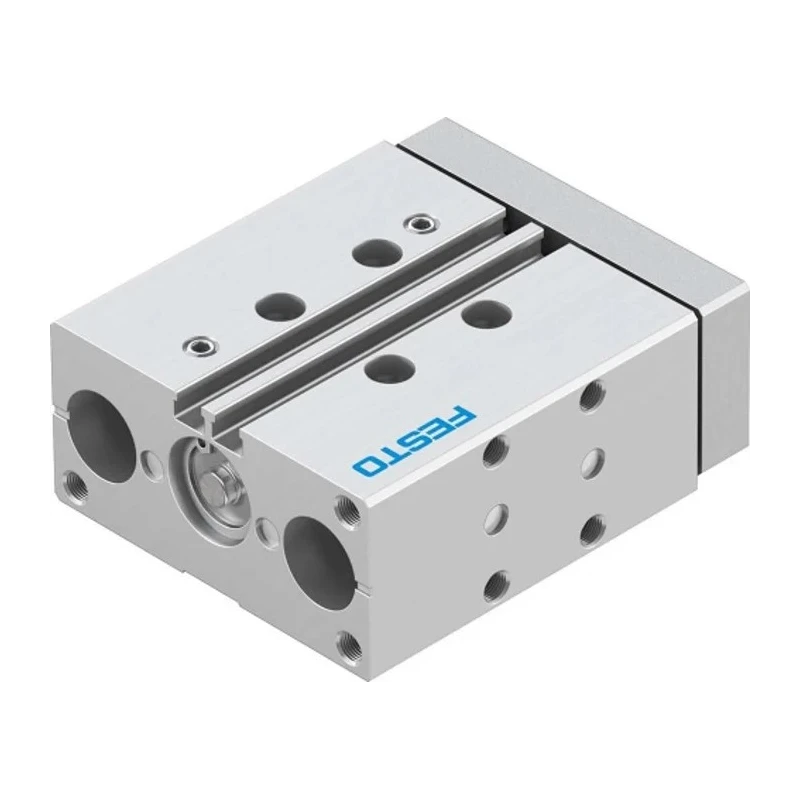

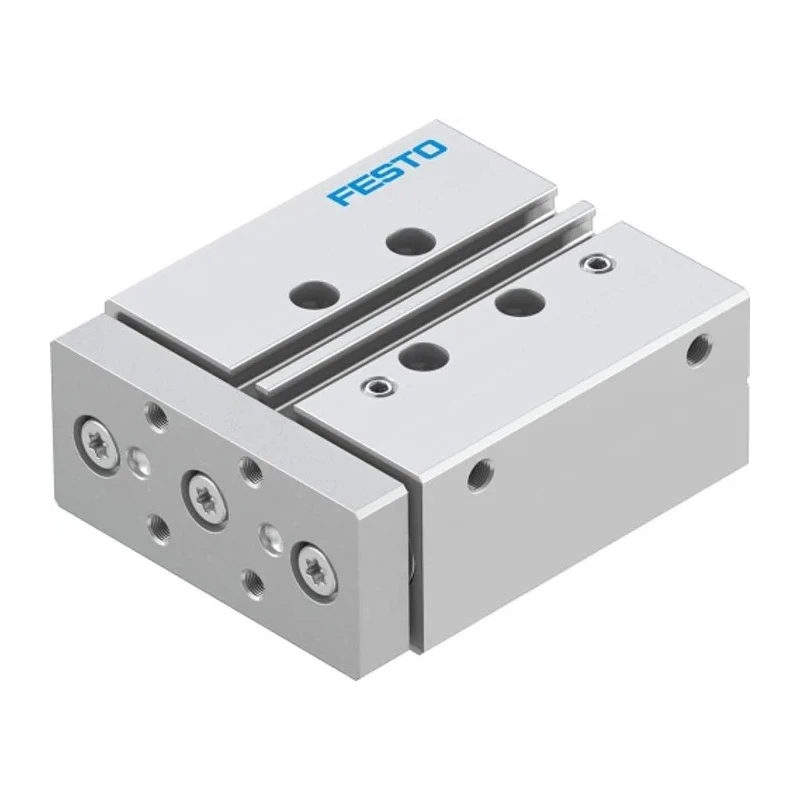

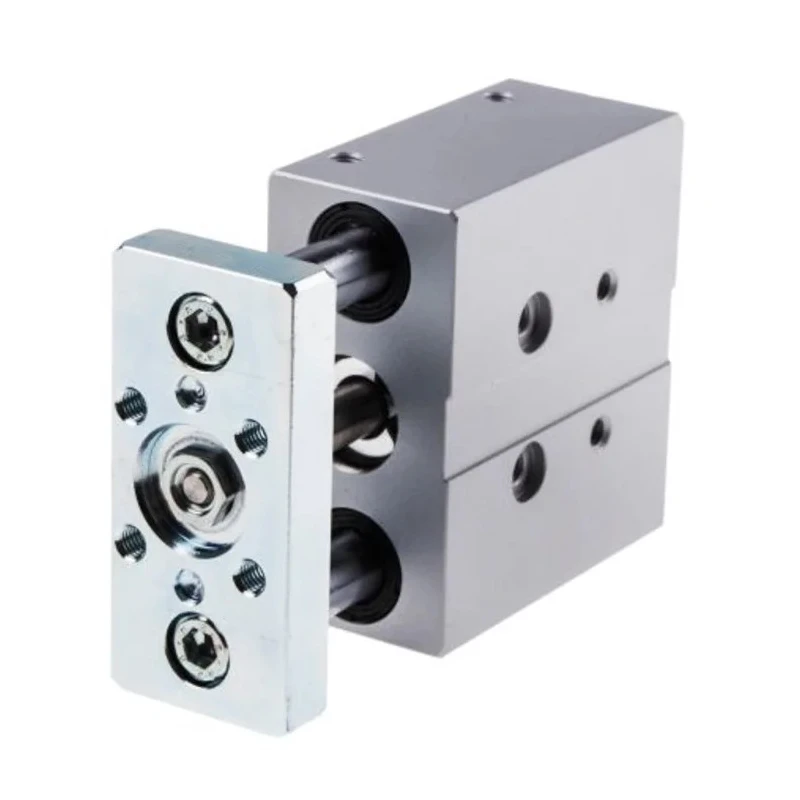

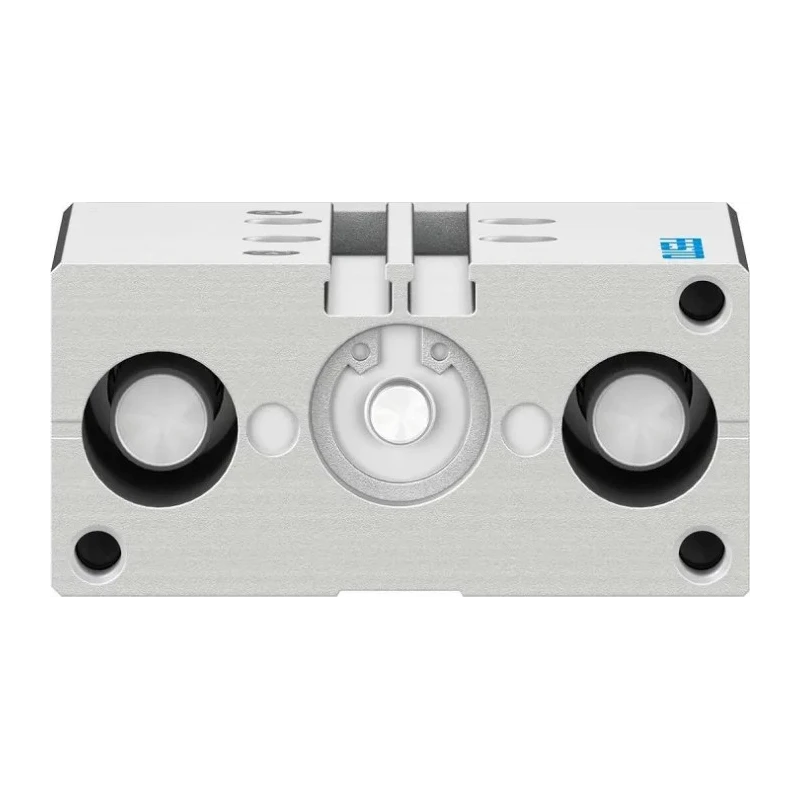

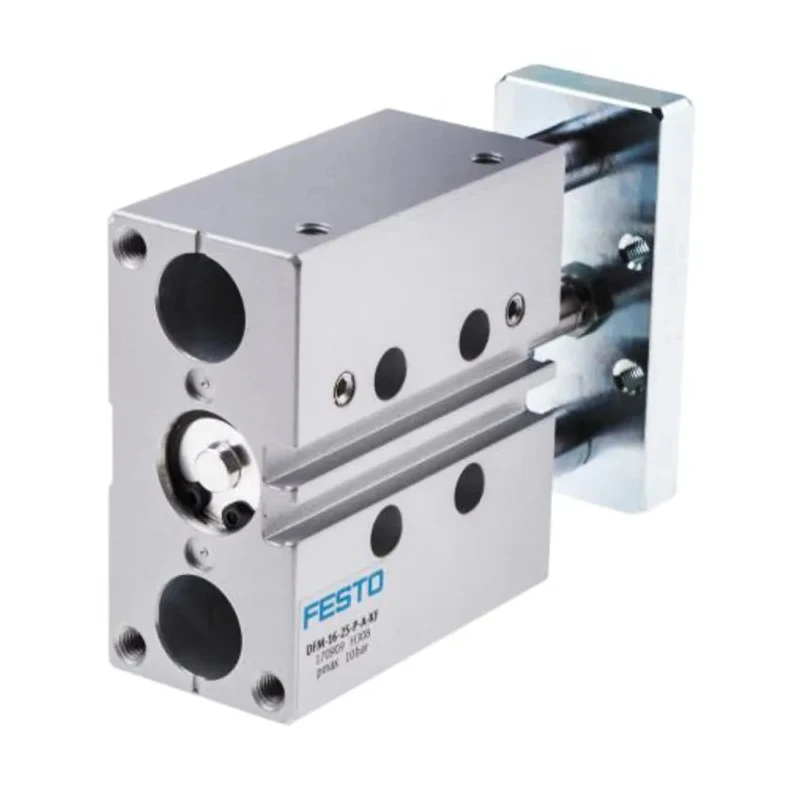

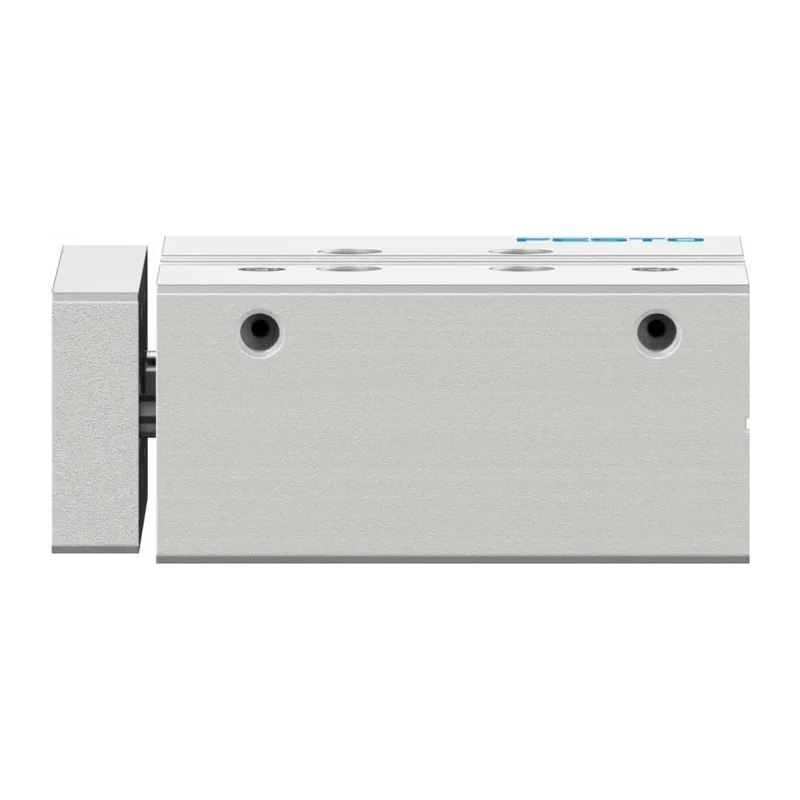

Festo Pneumatic Guided Cylinder 16mm Bore Double Acting 30mm Stroke Aluminum Body DFM-16-30-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 32mm |
| Length | 80mm |
| Model | DFM-16-30-P-A-KF |
| Gross Weight | 535g |
| Width | 67mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 30mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing |
| Maximum Piston Speed | 0.8m/s |
| Piston Rod Thread Size | 1/8 in G |
| Standards/Approvals Cleanroom Class 6, ISO 8573-1 | 2010 (7:4:4), RoHS, VDMA24364-B1/B2-L |
| RS PRO Pneumatic Guided Cylinder - 30 mmRS Stock No. | 291-854Brand: RS PRO |
Key Features
- Compact dimensions of 80 mm length, 67 mm width, and 32 mm height make it ideal for limited spaces.
- Maximum operating pressure of 10 bar suits a variety of pneumatic applications.
- Maximum piston speed of 0.8 m/s enables fast actuation cycles.
- Double acting design provides air-powered forward and return strokes for high accuracy.
- Made with wrought aluminium alloy body and steel-alloy piston rod for durability.
- Features elastomer cushioning to reduce impact force to 0.15 Nm, increasing component lifespan.
- Suitable for operating temperatures from -5°C to 60°C, ensuring reliable function in harsh environments.
- Single rod type guided by ball bearings increases lateral stability and prevents buckling.
Product Description
Festo DFM-16-30-P-A-KF Pneumatic Guided Cylinder with 16 mm bore diameter and 30 mm stroke length is engineered for precise and reliable operation in industrial pneumatic systems. The compact 80 mm (L) x 67 mm (W) x 32 mm (H) dimensions and lightweight 535 g aluminium alloy body make it highly space-efficient and easy to integrate into automated assemblies.
This double acting cylinder uses air pressure for both extension and retraction, delivering consistent force and accurate positioning for applications such as lifting, clamping, and stopping. It withstands a maximum operating pressure of 10 bar and offers a maximum piston speed of 0.8 m/s, enabling rapid cycle times.
The cylinder features an elastomer-based cushioning system, which limits endpoint impact force to only 0.15 Nm, reducing wear and extending service life. Its piston rod, constructed from steel alloy, is guided by ball bearings to enhance lateral stability and prevent rod buckling under load.
Designed to operate effectively across a temperature range from -5°C to +60°C, it is well suited for demanding industrial environments including pulp and paper mills, automotive manufacturing, and agricultural equipment use. The threaded piston rod (1/8 in G) facilitates easy installation with standard pneumatic couplings.
Compact size for space efficient installations. Double acting operation for precise control of actuation. Durable aluminium alloy construction with steel piston rod. Elastomer cushioning for low impact force at endpoints.
High piston speed for fast actuation cycles. Ball bearing guide to enhance rod stability. Wide operating temperature range for harsh environments. Single rod type suitable for various mounting configurations. Thread compatibility for standard fittings.
Lightweight design reduces mechanical load.
Festo’s DFM series pneumatic guided cylinder is a robust solution for industrial automation requiring precision, durability, and efficiency. It is widely utilized across electrical manufacturing, material handling, and processing applications where reliable pneumatic actuation is critical.
Explore more Pneumatic Guided Cylinders at EnvMart for comprehensive options supporting industrial, laboratory, manufacturing, and commercial usage.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic guided cylinder is 10 bar.
This model has a stroke length of 30 mm.
The bore diameter of this pneumatic cylinder is 16 mm.
The dimensions of this unit are 80 mm in length, 67 mm in width, and 32 mm in height.
It features elastomer cushioning, which limits the endpoint impact force to 0.15 Nm.
The maximum piston speed is 0.8 m/s, allowing for fast actuation cycles.
The body is made from wrought aluminium alloy, and the piston rod is constructed from steel alloy.
It operates effectively within a temperature range of -5°C to +60°C.
The piston rod is guided by ball bearings, which enhances lateral stability and prevents buckling.
This model uses a through hole mount type for installation.
It complies with Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), RoHS, and VDMA24364-B1/B2-L standards.
