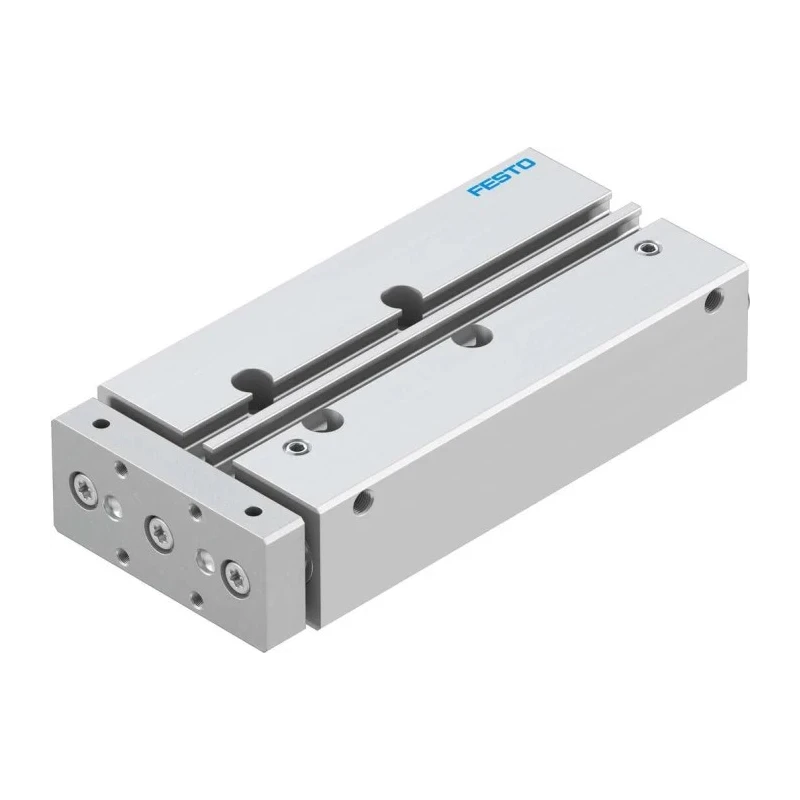

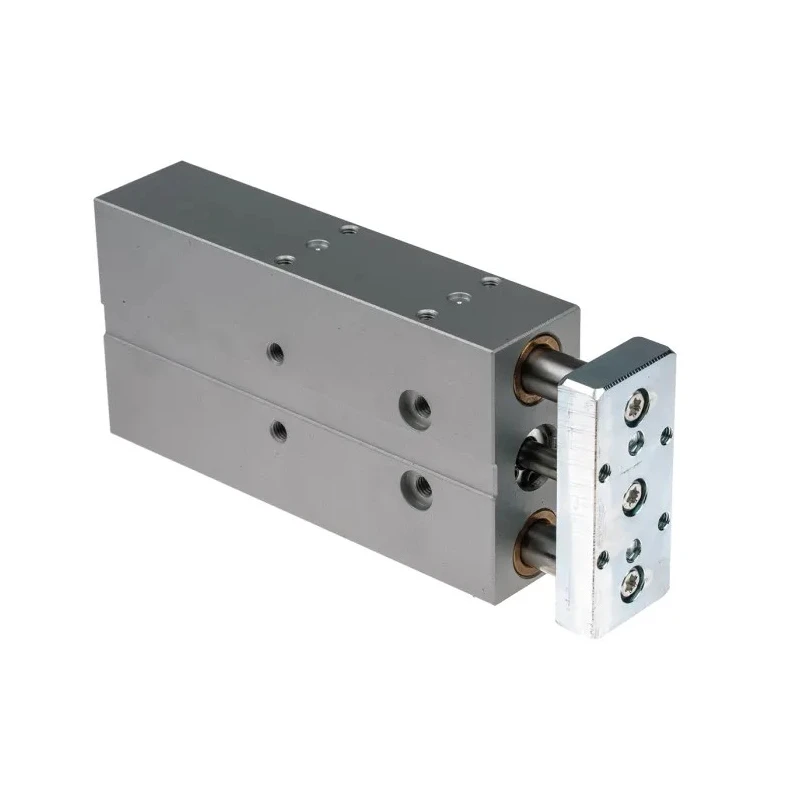

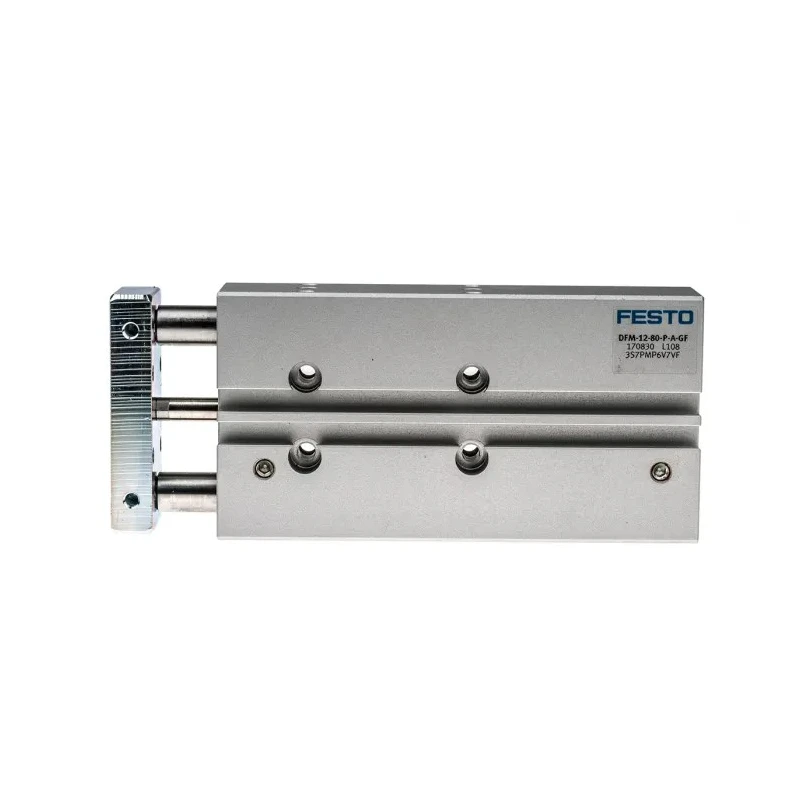

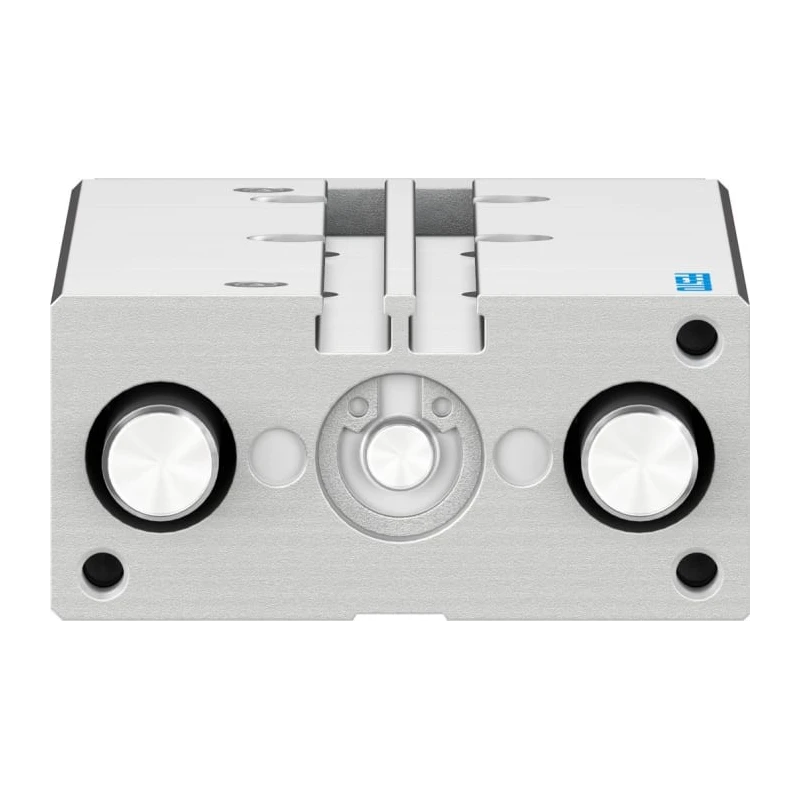

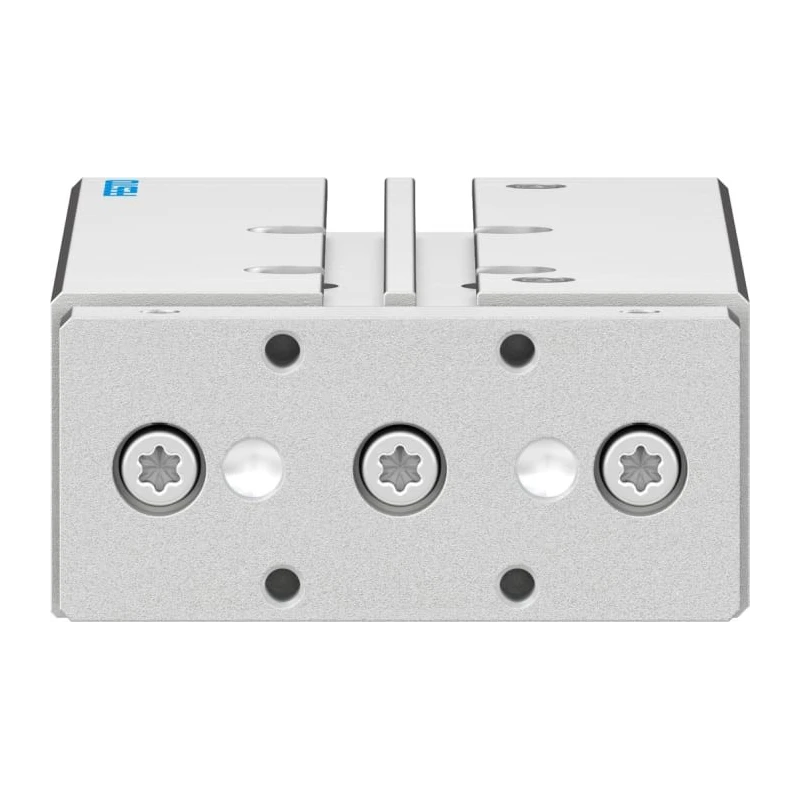

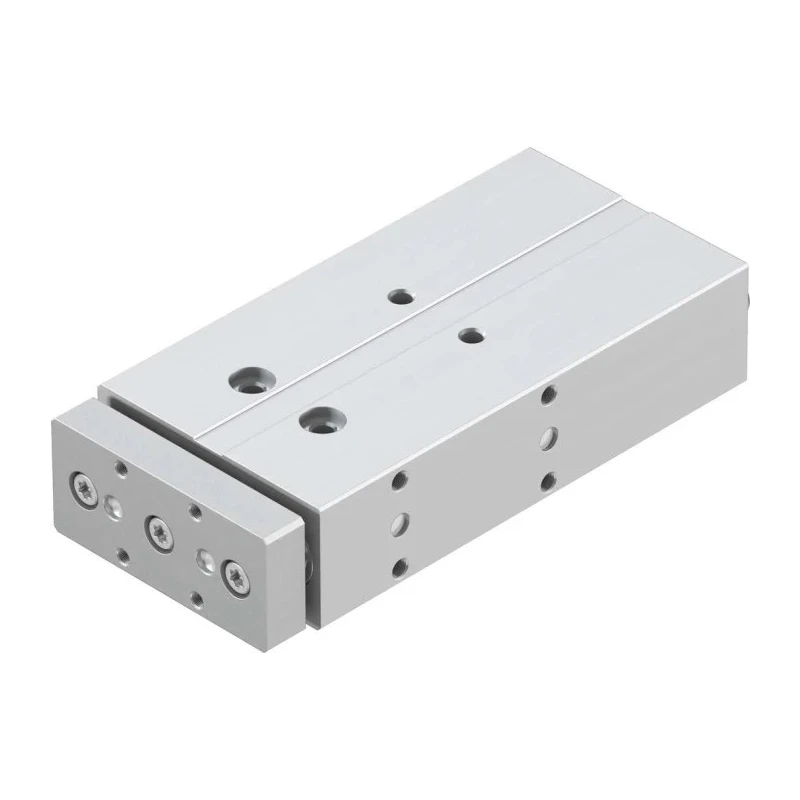

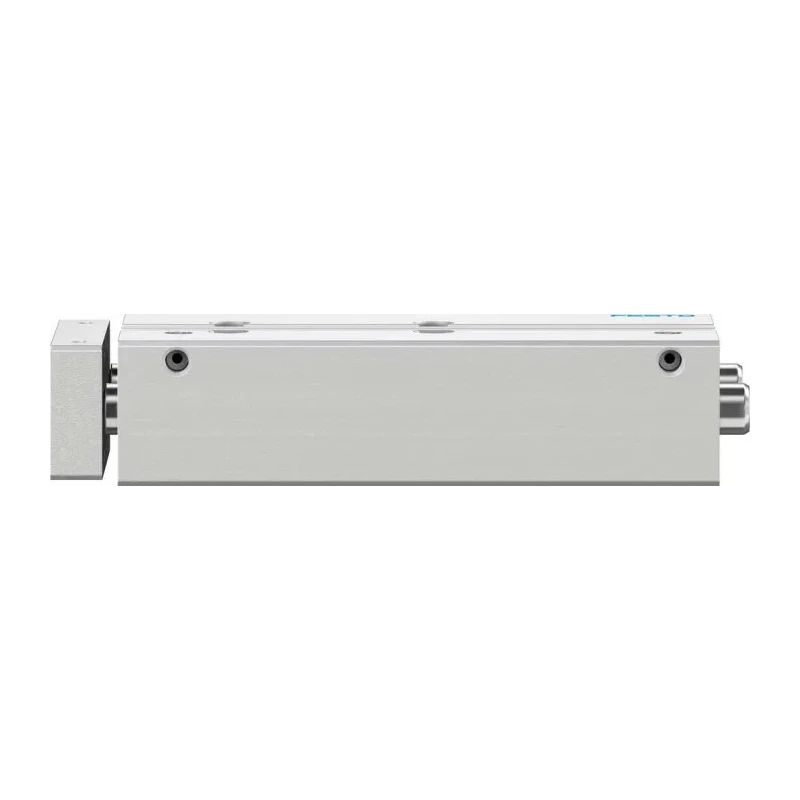

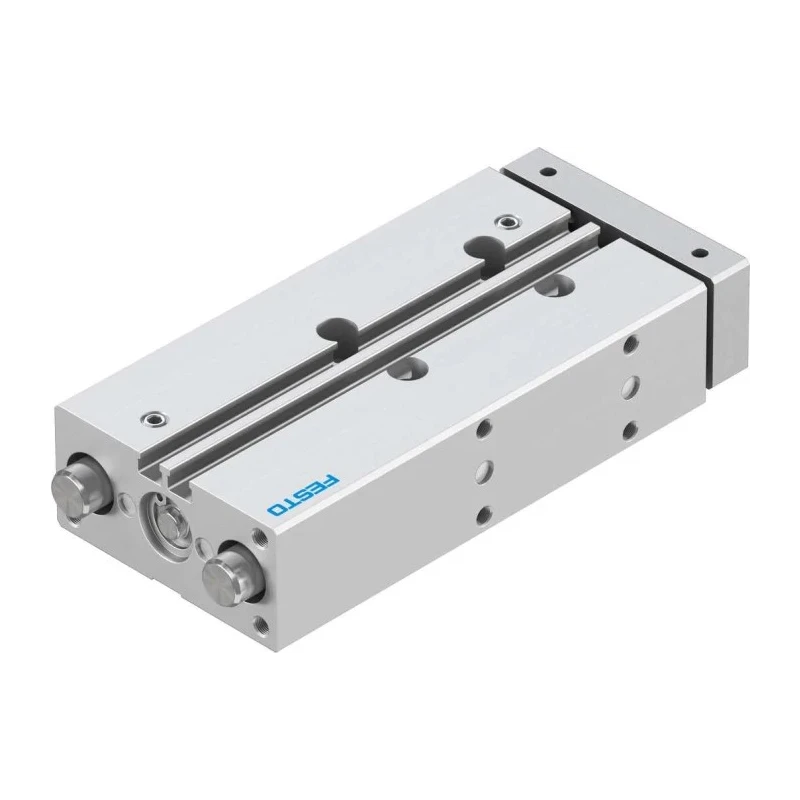

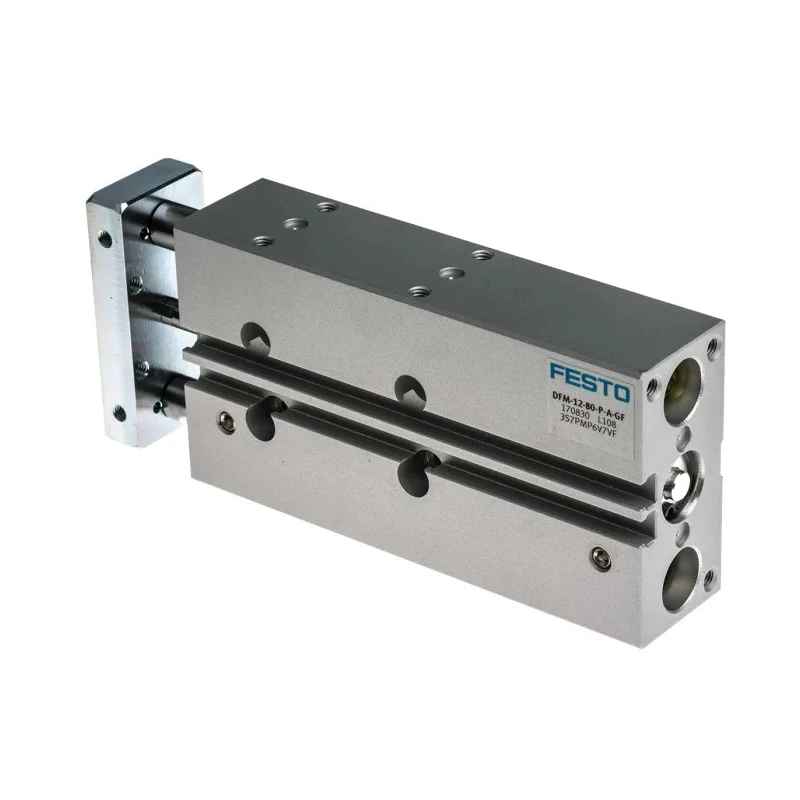

Festo Pneumatic Guided Cylinder 12mm Bore, 80mm Stroke, Double Acting, Through Hole Mount, DFM Series DFM-12-80-P-A-GF

Festo DFM-12-80-P-A-GF pneumatic guided cylinder features a 12mm bore diameter and an 80mm stroke length, designed for double acting operation with through hole mounting. It operates safely within a temperature range of -20°C to 80°C and supports a maximum operating pressure of 10 bar, making it ideal for demanding industrial applications.

The cylinder body is made of wrought aluminium alloy, offering corrosion resistance to withstand humid environments and maintain durability. Elastic cushioning plates at each end absorb impact forces to minimize damage and reduce operational noise, enhancing reliability in automated systems.

This guided cylinder incorporates a slide bearing guide type with four plain side bearings on the guide rods, ensuring robust support for heavy loads and precise linear motion. The single rod design includes a standard M5 piston rod thread size, facilitating quick and easy integration into existing systems.

Typical industrial applications include food and beverage production, manufacturing lines, automated laboratory setups, and agricultural machinery. The compact dimensions - 135mm length, 60mm width, 28mm height with an 80mm stroke - allow for versatile installation in constrained spaces.

Standards compliance includes RoHS, VDMA24364-B1/B2-L, Cleanroom Class 6, and ISO 8573-1:2010 (7:4:4), certifying the cylinder’s suitability for clean and controlled environments. The product is manufactured in China, weighing approximately 690 grams.

Operates reliably between -20°C and 80°C temperature range. Maximum operating pressure of 10 bar ensures robust performance. Wrought aluminium alloy body provides corrosion resistance and durability. Equipped with elastic cushioning plates for impact absorption and noise reduction.

Slide bearing guide type with four plain side bearings supports heavy loads effectively. Suitable for food and drinks industries, manufacturing lines, automated lab systems, and agricultural machinery. Compact dimensions: length 135mm, width 60mm, height 28mm with stroke length of 80mm.

Single rod type with M5 piston rod thread size for easy installation. Complies with RoHS, VDMA24364-B1/B2-L, Cleanroom Class 6, and ISO 8573-1:2010 (7:4:4) standards. Manufactured in China with a gross weight of approximately 690 grams.
