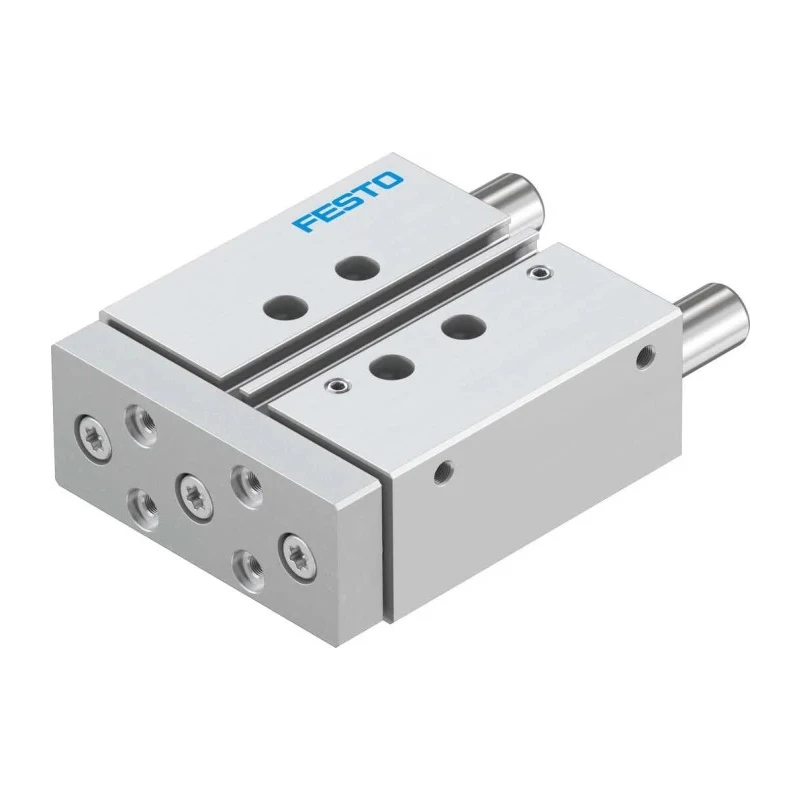

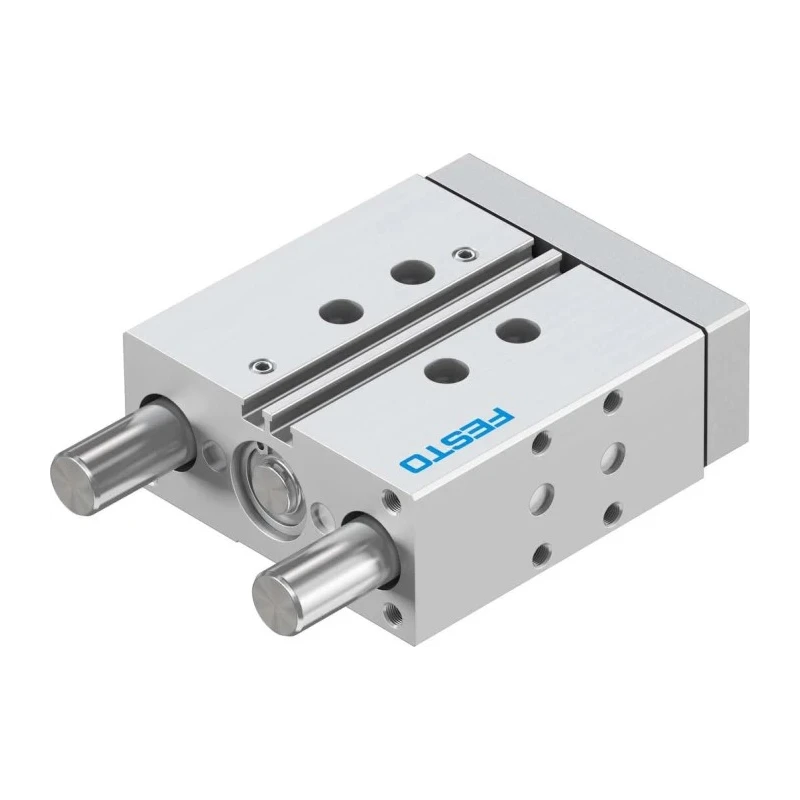

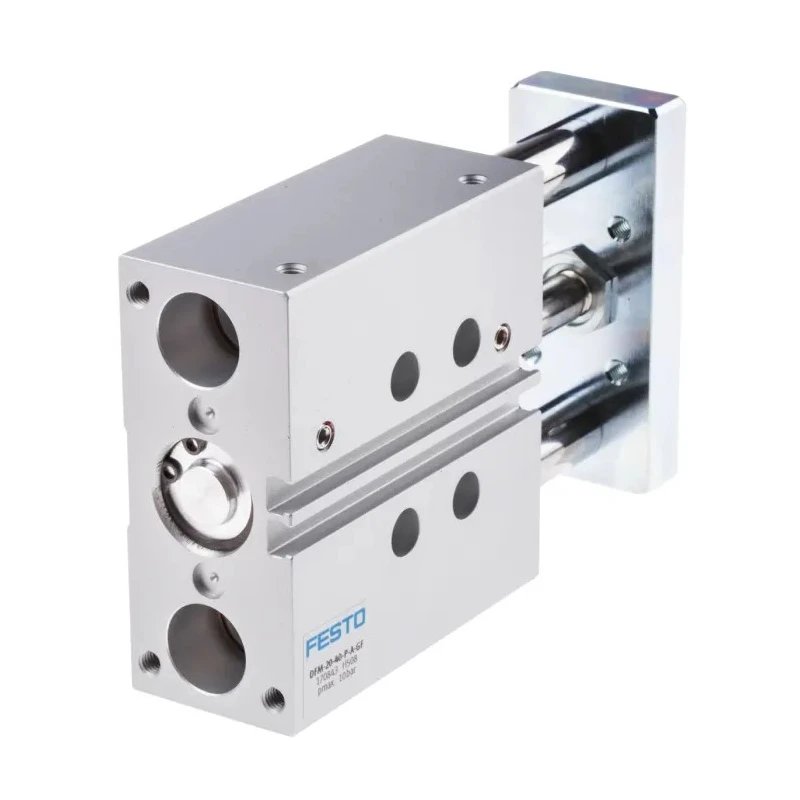

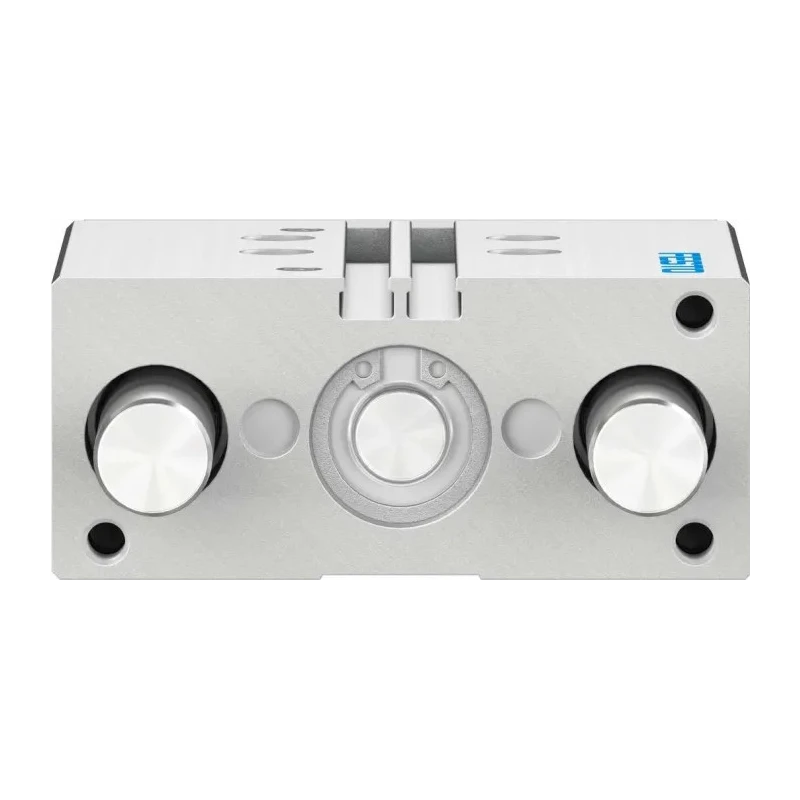

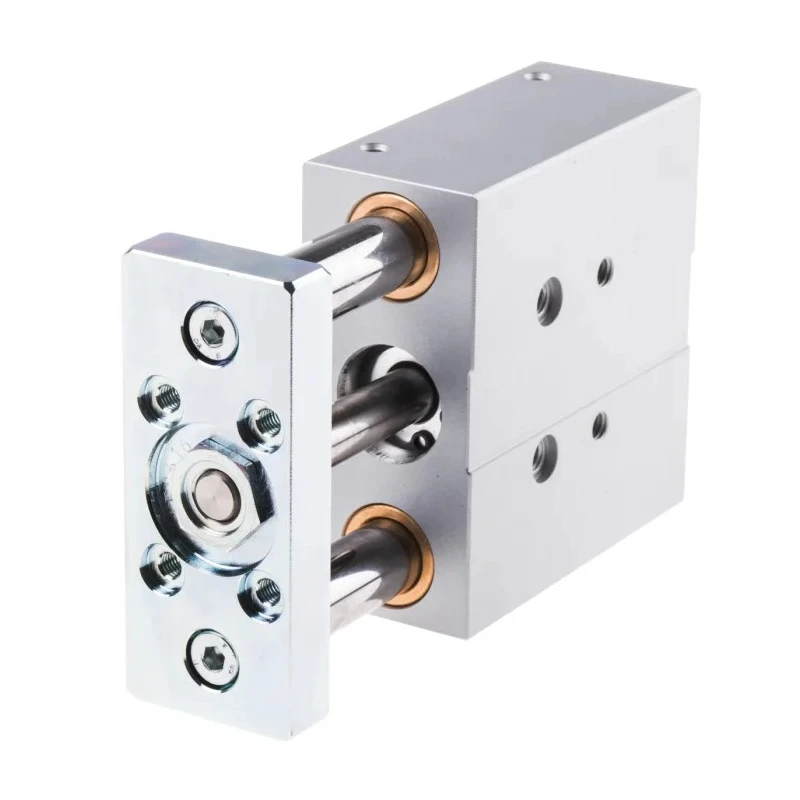

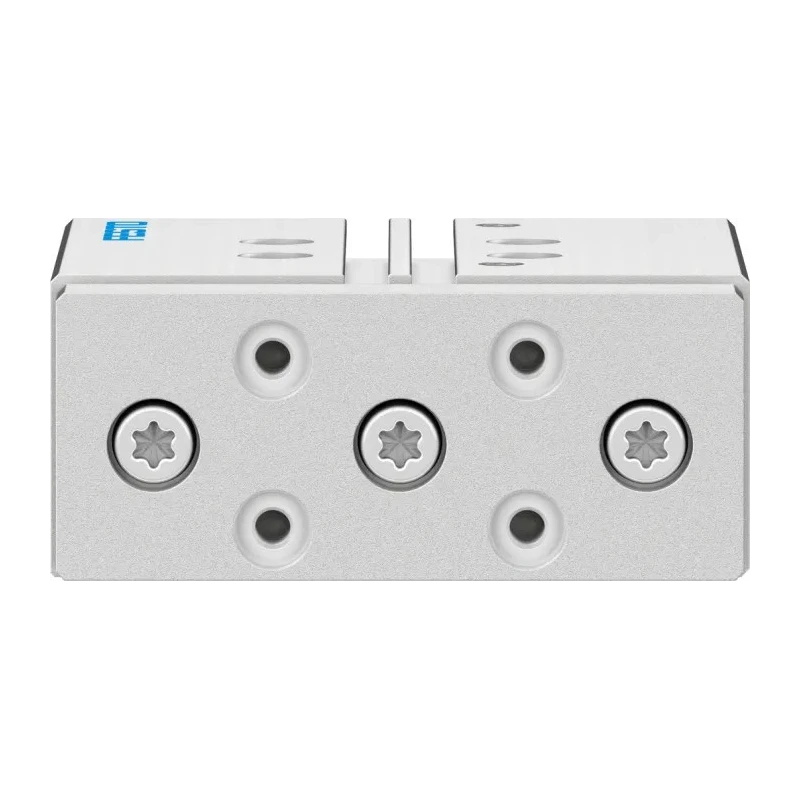

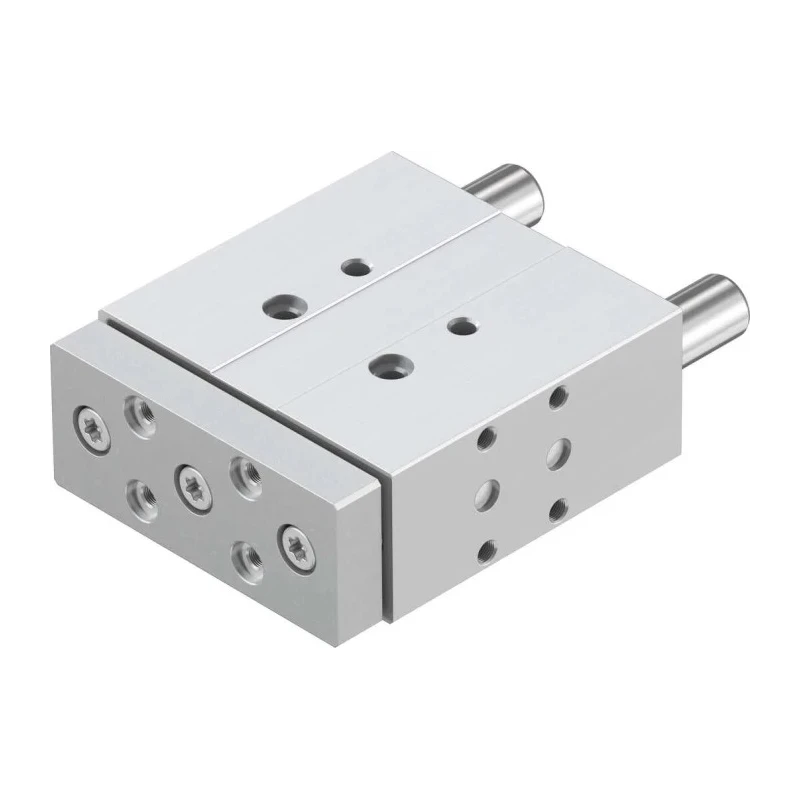

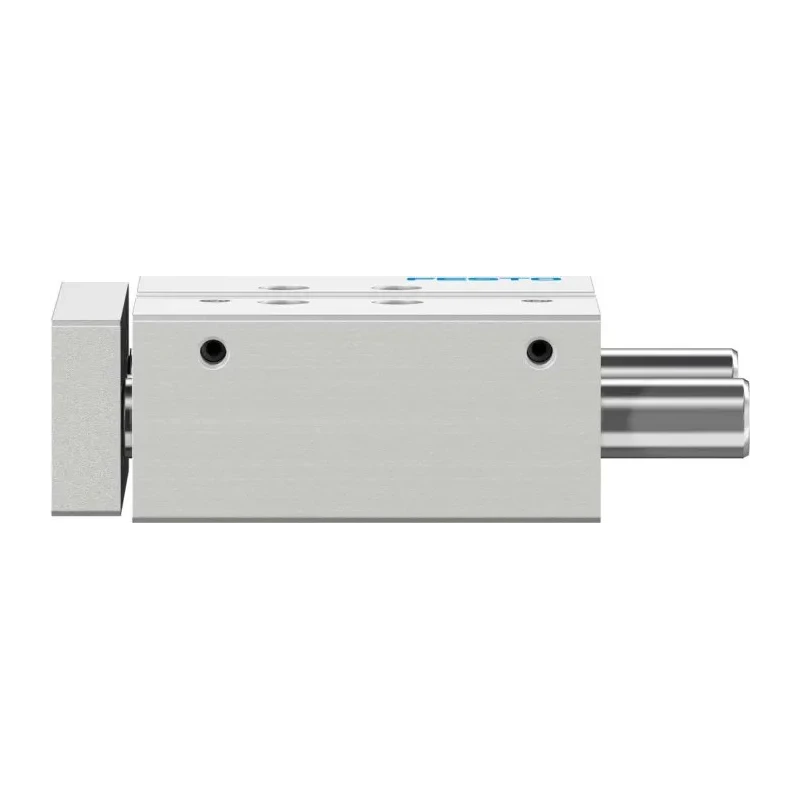

Festo Pneumatic Guided Cylinder 20mm Bore 40mm Stroke Double Acting DFM Series with Elastomer Cushioning DFM-20-40-P-A-GF

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Guided Cylinder 20mm Bore 40mm Stroke Double Acting DFM Series with Elastomer Cushioning DFM-20-40-P-A-GF

Name: Festo Pneumatic Guided Cylinder 20mm Bore 40mm Stroke Double Acting DFM Series with Elastomer Cushioning DFM-20-40-P-A-GF
Brand: FESTO
SKU: 139663
Price: 350.03 USD
Availability: InStock



Category Pneumatic Guided Cylinder Brand FESTO Condition New

Specifications

Country of Origin	Germany
Brand	Festo
Body Material	High Alloy Stainless Steel, Nitrile Rubber (NBR), Polyurethane, Tempered Steel, Wrought Aluminium Alloy
Maximum Operating Pressure	10 bar
Height	36mm
Length	121mm
Model	DFM-20-40-P-A-GF
Gross Weight	1.1kg
Width	83mm
Mount Type	Through Hole, Flat, Side
Series	DFM
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Stroke Length	40mm
Bore Diameter	20mm
Rod Type	Single
Action Type	Double Acting
Cushioning Type	Elastomer
Guide Type	Ball Bearing
Piston Rod Thread Standard	ISO 228-1, ISO 1179-1
Piston Rod Thread Size	M5
Standards/ApprovalsISO 1179-1, ISO 228-1, ISO 8573-1	2010, RoHS

Key Features

Equipped with plain bearing guides distributing lateral forces evenly for stability.
Constructed with high alloy stainless steel, nitrile rubber, polyurethane, tempered steel and wrought aluminium alloy for durability.
Double-acting cylinder with two air ports enabling extension and retraction without spring return.
Features elastomer cushioning on both ends to reduce noise and wear on piston rod.
Capable of operation from -20°C to +80°C ambient temperatures.
Maximum operating pressure rated at 10 bar for robust industrial applications.
Ball bearing guide type ensures smooth motion and increased accuracy.
Pre-cut slots available for easy mounting of proximity sensors for automation.

Product Description

Festo DFM-20-40-P-A-GF Pneumatic Guided Cylinder is a precision engineered pneumatic actuator designed for industrial use. Featuring a 20mm bore and 40mm stroke length, this double acting cylinder offers controlled linear motion for various applications.

The cylinder body is crafted from durable wrought aluminium alloy combined with high alloy stainless steel, nitrile rubber (NBR), polyurethane, and tempered steel to withstand rigorous operating conditions and resist mechanical wear. Its elastomer cushioning reduces impact noise and rod wear, enhancing longevity.

With a maximum operating pressure of 10 bar and ambient temperature range from -20°C to +80°C, this guided cylinder is suitable for harsh industrial environments. It uses ball bearing guides for precise and stable operation, minimizing lateral forces on the piston rod.

The design includes through hole, flat, and side mount types for versatile installation. Pre-cut slots facilitate the mounting of proximity sensors enabling automated position tracking and integration into control systems.

Typical applications include agricultural machinery, automotive engineering, laboratories, and factory automation, where reliable linear actuation is essential.

The compact size (121mm length × 83mm width × 36mm height) and relatively light weight (1.1 kg) make it adaptable to various industrial systems. Operating speeds can reach up to 0.8 m/s, optimizing positioning cycles.

Equipped with plain bearing guides to distribute lateral forces evenly. Body materials designed for durability in harsh environments. Dual air ports support double acting operation without spring return. Elastomer cushioning minimizes noise and wear.

Wide temperature and pressure operating range. Ball bearing guides for smooth piston motion. Sensor mounting slots for automation. Compact size and lightweight design. Suitable for agriculture, automotive, laboratories, and factory floors.

Explore the comprehensive range of Pneumatic Guided Cylinders available at EnvMart for industrial automation and control.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating pressure of this model is rated at 10 bar, making it suitable for robust industrial applications.

This pneumatic guided cylinder has a stroke length of 40mm, allowing for controlled linear motion.

The body of this unit is constructed from high alloy stainless steel, nitrile rubber (NBR), polyurethane, tempered steel, and wrought aluminium alloy for durability.

It can operate in ambient temperatures ranging from -20°C to +80°C, making it suitable for various industrial environments.

This model is equipped with elastomer cushioning on both ends, which helps reduce noise and wear on the piston rod.

The ball bearing guide type ensures smooth motion and increased accuracy, minimizing lateral forces on the piston rod.

The dimensions of this pneumatic guided cylinder are 121mm in length, 83mm in width, and 36mm in height.

It supports multiple mounting types including through hole, flat, and side mount, providing versatility in installation.

Yes, it includes pre-cut slots for easy mounting of proximity sensors, enabling integration into automation systems.

The gross weight of this unit is 1.1 kg, making it relatively lightweight for its size.

It complies with ISO 1179-1, ISO 228-1, and ISO 8573-1:2010 standards, as well as RoHS requirements.

This model operates as a double acting cylinder, featuring two air ports for extension and retraction without spring return.
