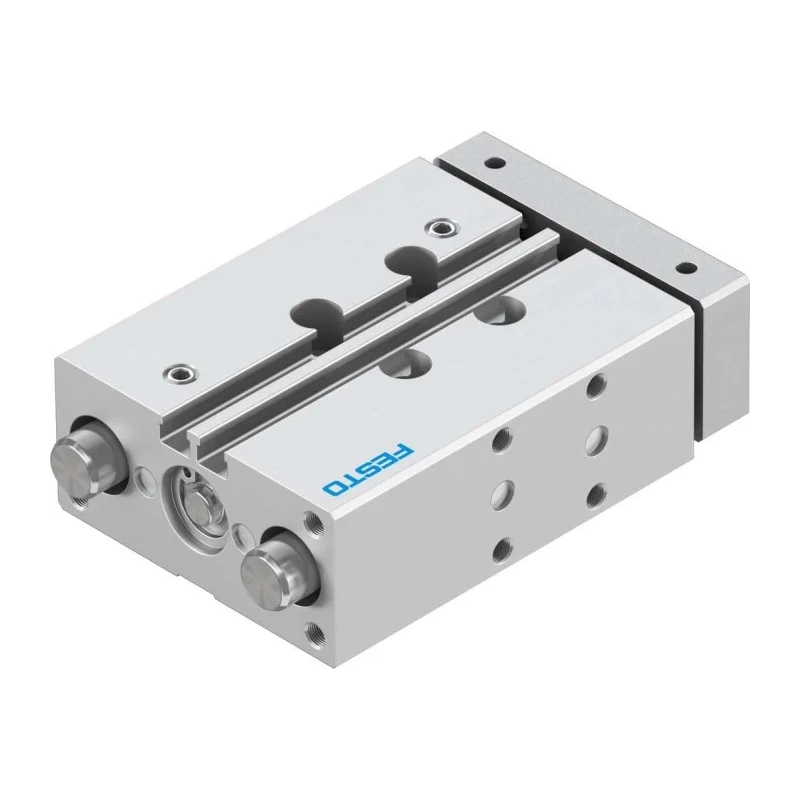

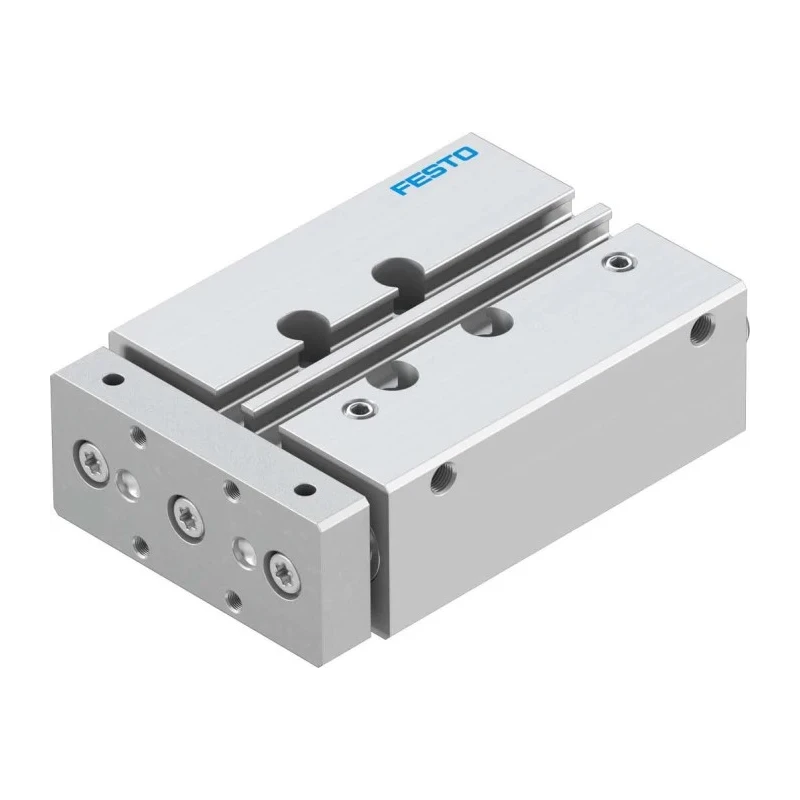

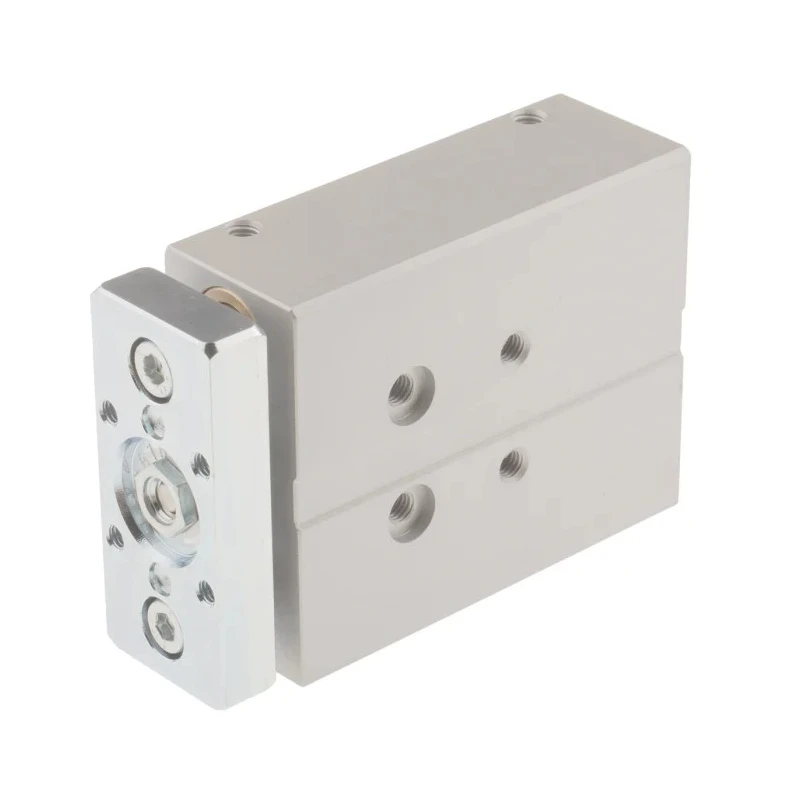

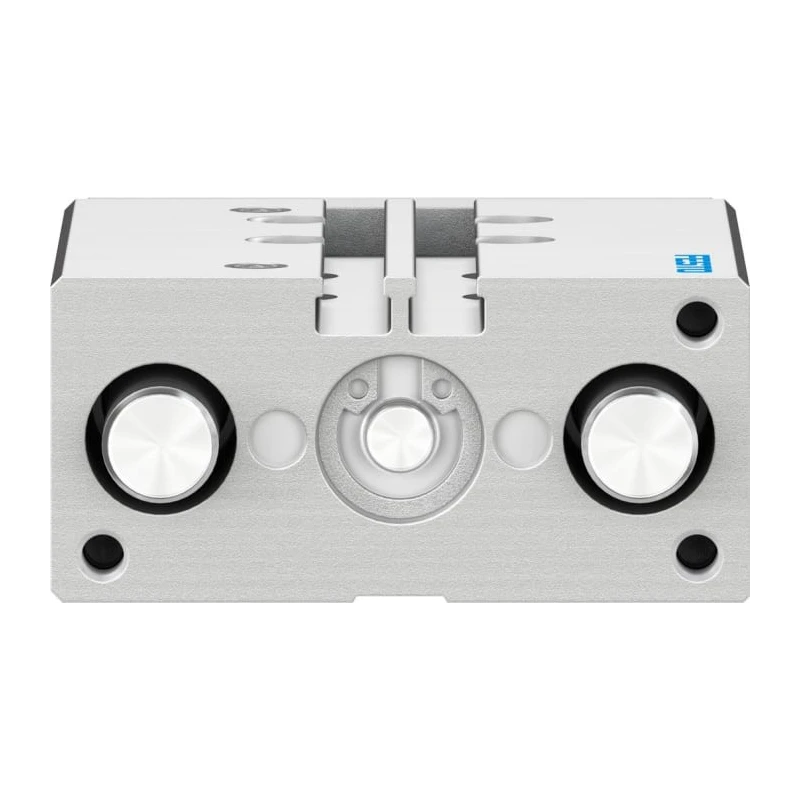

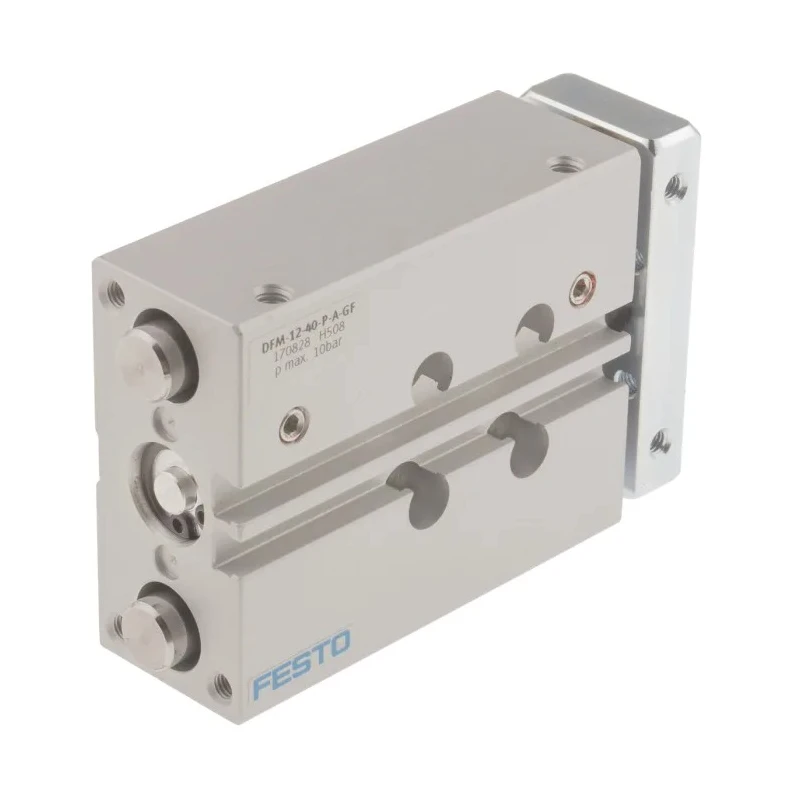

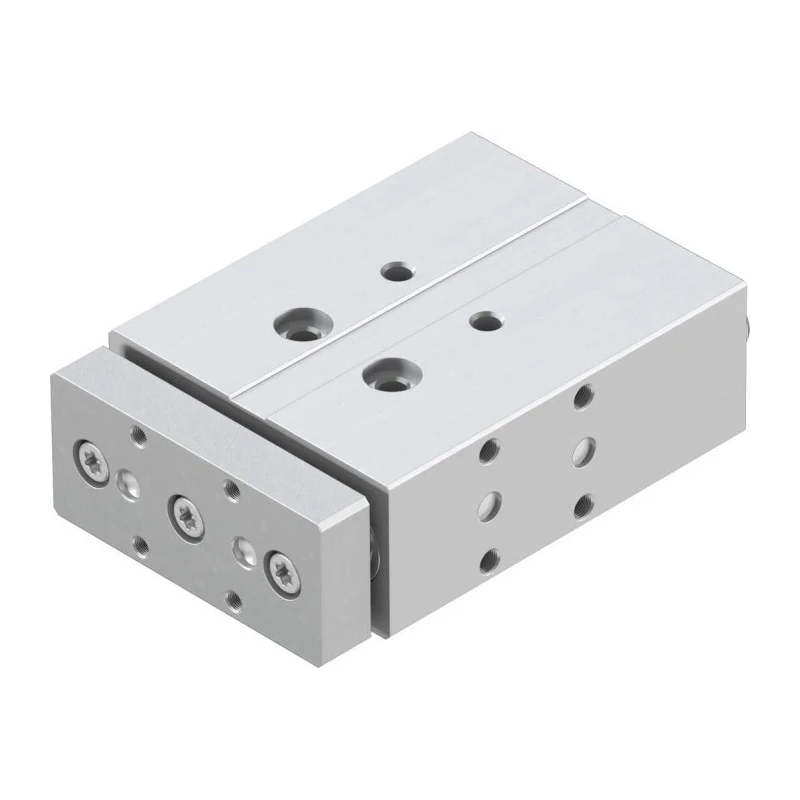

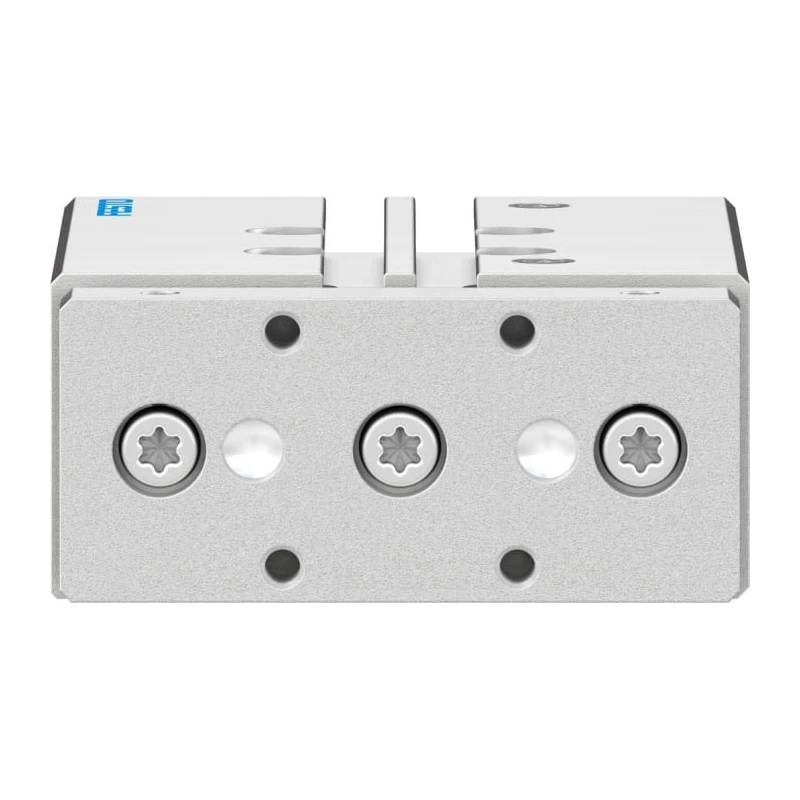

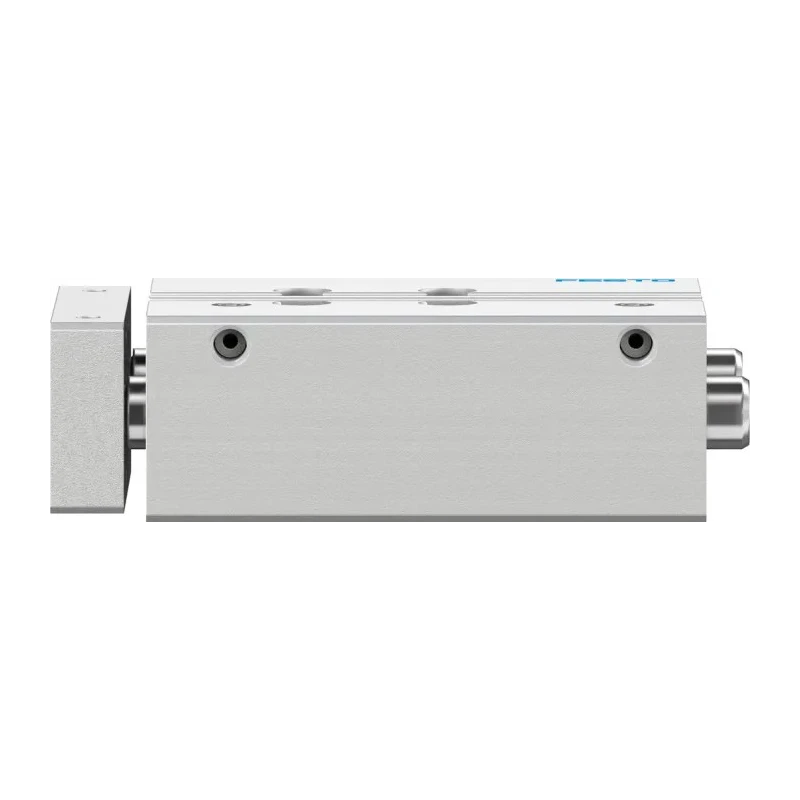

Festo Pneumatic Guided Cylinder 12mm Bore Double Acting Wrought Aluminium Alloy Body DFM-12-40-P-A-GF

Festo DFM-12-40-P-A-GF is a high-quality Pneumatic Guided Cylinder designed for precise linear actuation in industrial applications. Featuring a 12mm bore diameter and 40mm stroke length, this double-acting cylinder offers reversible motion by admitting air at both ends, eliminating the need for spring return mechanisms and enhancing accuracy in movement control.

The cylinder body is constructed from wrought aluminium alloy, offering robust resistance to mechanical wear and ensuring long-term durability under demanding operating conditions. Elastomer cushioning at both ends reduces noise, vibration, and wear, facilitating quieter and smoother operation.

Its piston rod is crafted from high-alloy steel to withstand corrosive environments, making it suitable for applications where resistance to harsh conditions is essential. The NBR seals resist oils and solvents, further contributing to the reliability and lifespan of the unit.

This model includes a slide bearing guide type and a single rod construction, which allows installation in any orientation while maintaining operational stability. The maximum operating pressure is rated at 10 bar, with piston speeds up to 0.8 meters per second, allowing efficient and fast actuation.

The operating temperature range from -20°C to 80°C supports a broad spectrum of industrial and automation tasks, including marine engineering, medical device manufacturing, textile production, material handling, and automated door systems. Pre-cut slots are designed to accommodate proximity sensors, enabling precise piston position tracking within automated systems.

Wrought aluminium alloy housing for excellent mechanical wear resistance. Double-acting operation improves motion accuracy without springs. Corrosion-resistant high-alloy steel piston rod for harsh environments. Elastomer cushioning minimizes wear and noise.

Slide bearing guide allows versatile installation positions. NBR seals ensure resistance against oils and solvents. Maximum operating pressure of 10 bar with a speed of 0.8m/s. Operating temperature range from -20°C to 80°C.

Pre-cut sensor slots for piston position sensing integration.

Ideal for various industrial and manufacturing settings requiring precise, durable pneumatic actuation. Browse the Industrial Tools & Equipment category at EnvMart for related pneumatic guidance and actuation components to complement your system.
