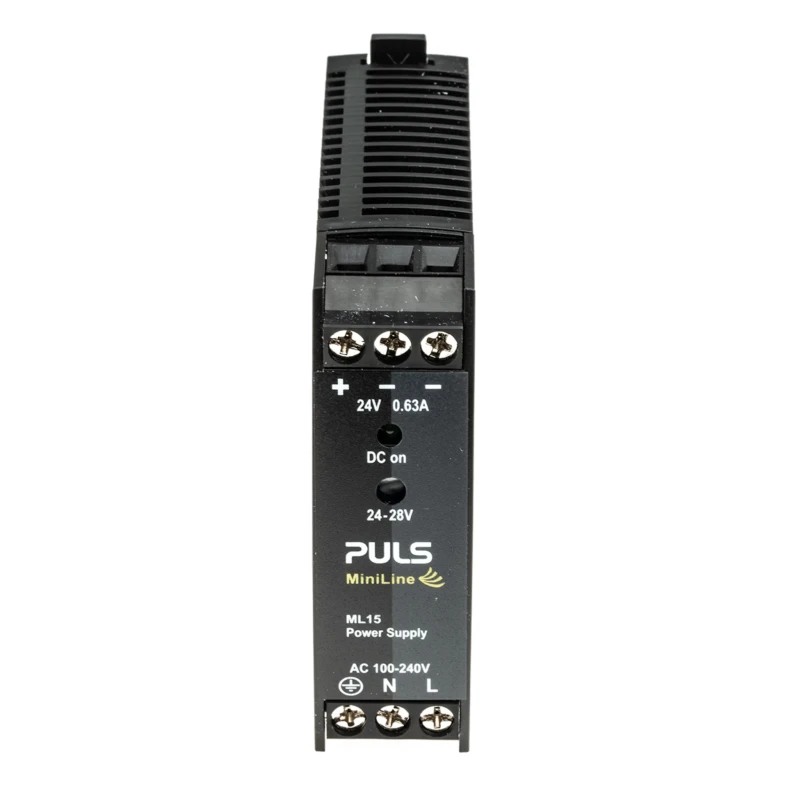

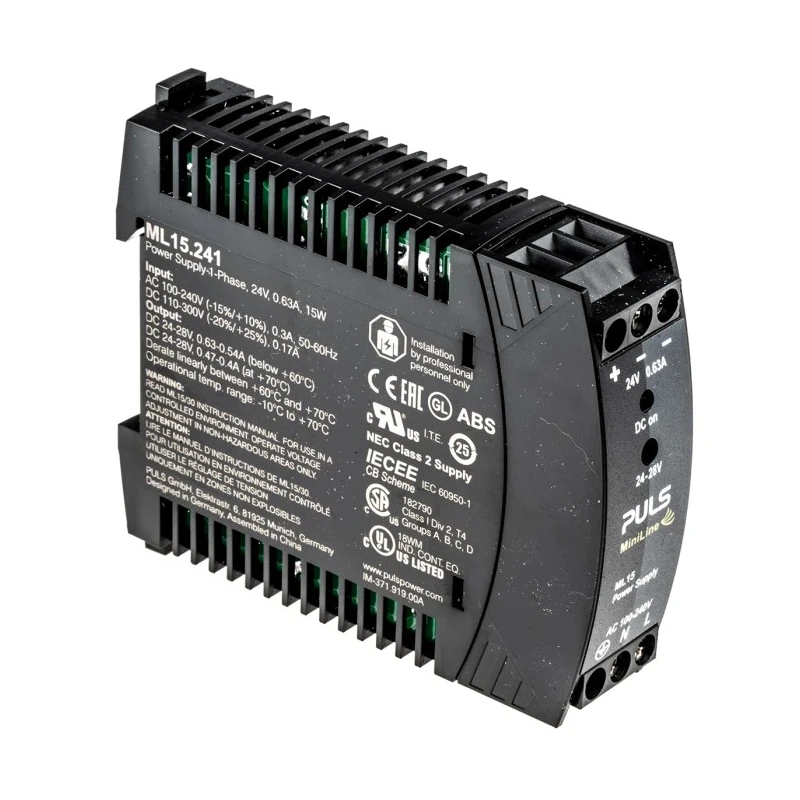

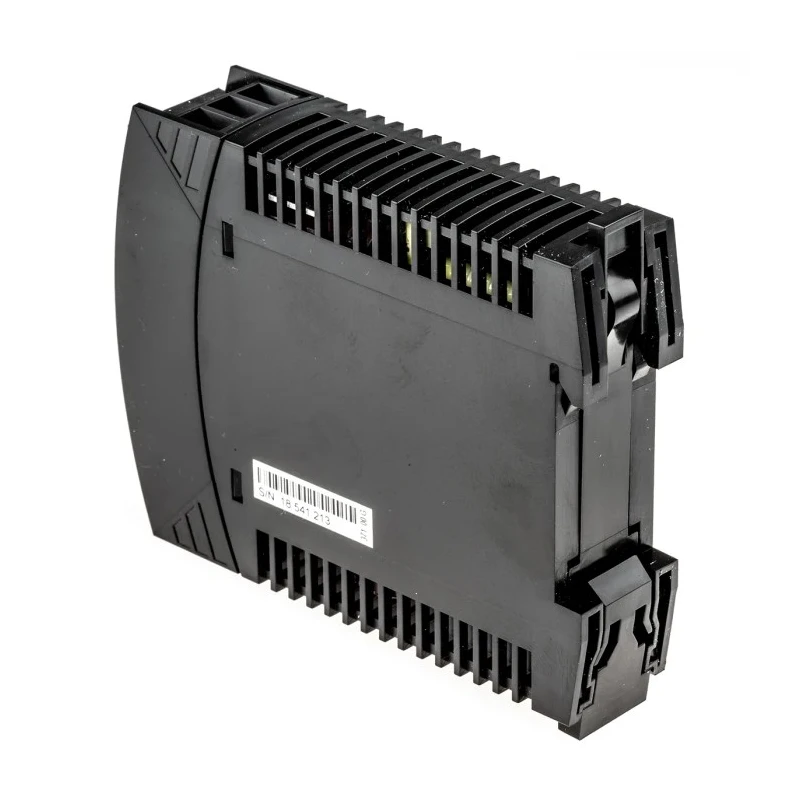

Mean Well MiniLine Switched Mode DIN Rail Power Supply 240V AC Input 28V DC, 630mA Output 15W ML15.241

PULS ML15.241 MiniLine Switched Mode DIN Rail Power Supply is a high-performance, cost-optimized power supply designed for industrial and automation applications. It features a single-phase input voltage range from 100VAC to 240VAC and delivers a stable 28V DC output at 630mA with a power rating of 15W. The output voltage is adjustable between 24VDC and 28VDC via a front panel potentiometer, allowing precise control for various setups.

This compact unit measures 75mm in height, 22.5mm in width, and 91mm in depth, making it suitable for tight space installations. Its robust plastic housing includes a fine ventilation grid that provides effective cooling and ensures reliable long-term use. The power supply is IP20 rated and offers high immunity to power surges with low electromagnetic emissions, making it compliant with industrial electromagnetic standards.

The device offers an efficiency of up to 86.1%, with minimal output ripple and noise measured at 50mVpp. It includes built-in protections against overload and short circuits and features an output LED indicator for operational status. Power derating is applied automatically between 60°C and 70°C to protect the unit in high-temperature environments. Installation is simplified with spring clamp terminals that require no neutral wire connection.

Ideal for industrial control systems, automation processes, communication devices, and instrumentation equipment, this DIN rail power supply supports reliable and continuous operation. The ML15.241 unit is certified to meet VDE, CSA, and UL safety standards, complies with SELV and NEC Class 2 requirements, and is manufactured in China.

Single-phase switched mode DIN rail power supply with adjustable output voltage. Wide AC input range of 100V to 240V with high input voltage immunity. Compact dimensions and lightweight design for easy DIN rail mounting.

High efficiency and low noise for stable and reliable DC output. Includes overload and short circuit protection with LED status indicator. Wide operating temperature range with automatic power derating at high temperatures.

Spring clamp terminals allow quick installation without neutral wire. Certified to international safety and electromagnetic standards. Designed for versatile applications in industrial and automation fields. Explore more DIN Rail Power Supplies and related components on EnvMart for your industrial and electronic needs.
