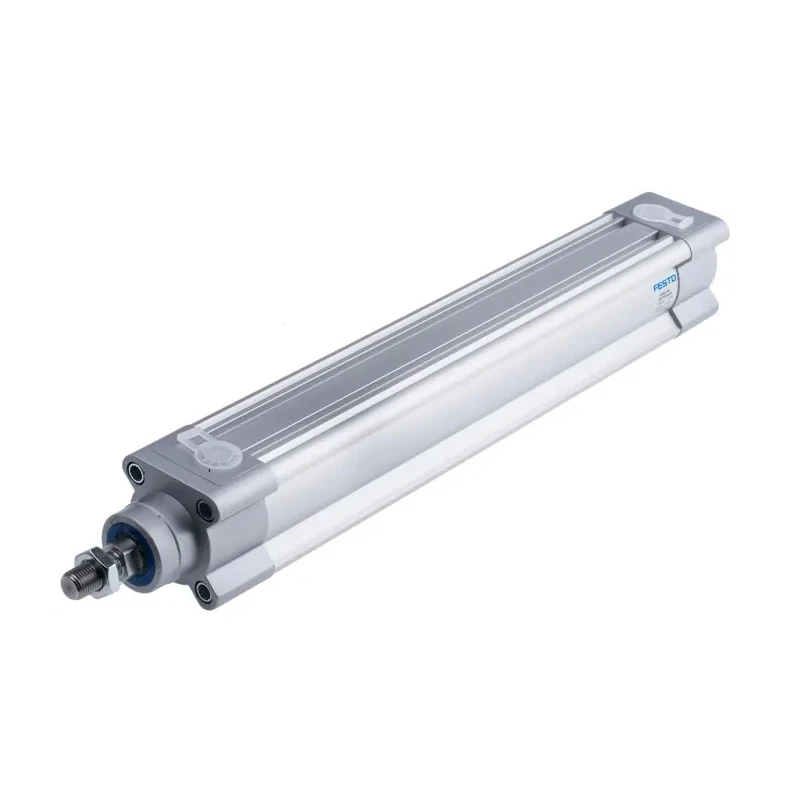

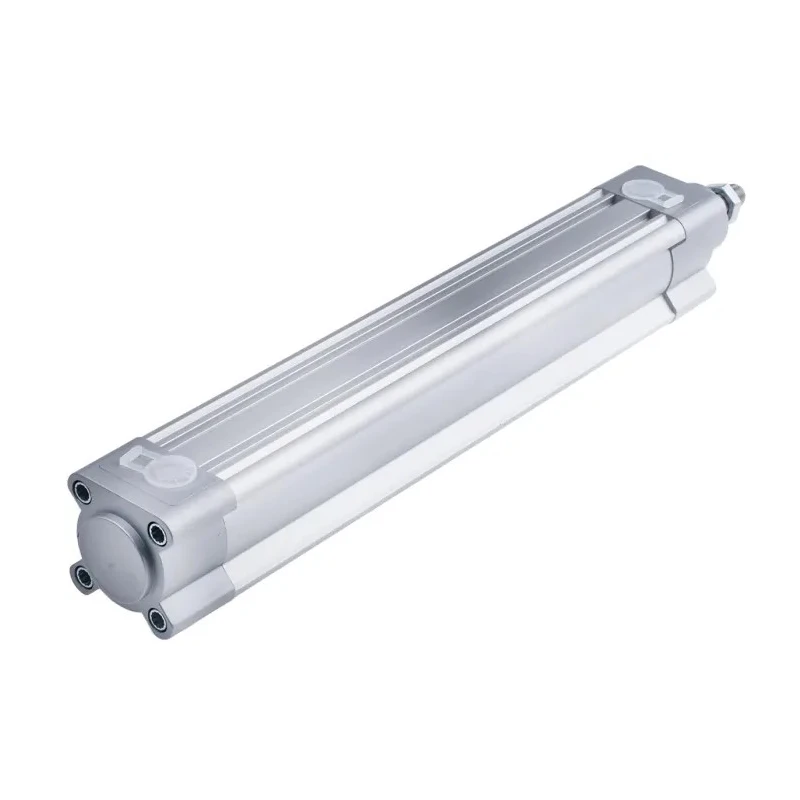

Festo Pneumatic Piston Rod Cylinder 40mm Bore, 250mm Stroke, Aluminium Body, Double Acting DSBC-40-250-PPSA-N3

Festo DSBC-40-250-PPSA-N3 pneumatic piston rod cylinder with 40mm bore diameter and 250mm stroke length is a precision-engineered actuator designed for industrial pneumatic applications. Featuring a lightweight aluminium body and complying with ISO 15552 standards, it ensures interchangeability and ease of installation in diverse industrial settings.

This double acting cylinder uses dual air ports to provide reliable linear motion by advancing and retracting the high-alloy steel piston rod, which is equipped with a male 1/4 inch G threaded connector for integration. The piston rod includes magnetic sensing capabilities for position feedback, supporting proximity sensor integration.

The DSBC series cylinders feature innovative self adjusting pneumatic cushioning at both ends, eliminating the need for manual adjustment while providing smooth deceleration and noise reduction. The air cushioning dynamically adjusts regardless of load or speed changes, enhancing operational efficiency.

Designed for robust industrial use, this cylinder operates within a maximum pressure rating of 12 bar and temperature range from -20°C to 80°C. Its compact dimensions include an overall length of 411.9mm, height and width of 54mm, and a gross weight of 740g, making it suitable for diverse mechanical, manufacturing, and automation applications.

Manufactured in Germany with RoHS compliance and ISO 15552 certification, it ensures quality and environmental standards adherence. Suitable for various mounting options, including through hole mounting, the DSBC pneumatic piston rod cylinder offers high performance for fluid power, mechanical machinery, and automation industries.

Constructed with aluminium body for durability and reduced weight. Complies with ISO 15552 for standardized mounting and interchangeability. Features self-adjusting air cushioning for smooth end of stroke operation. High-alloy steel piston rod offers excellent running performance and long service life.

Double acting design provides linear motion with dual air ports for advance and retract. Magnetic piston rod allows contactless position sensing via proximity sensors. Suitable for mounting in any orientation using through hole mounting.

Operates safely within temperature range of -20°C to 80°C and maximum pressure of 12 bar. Lightweight design weighing approximately 740 grams with compact dimensions. Manufactured in Germany with RoHS compliance and ISO 15552 certification.
