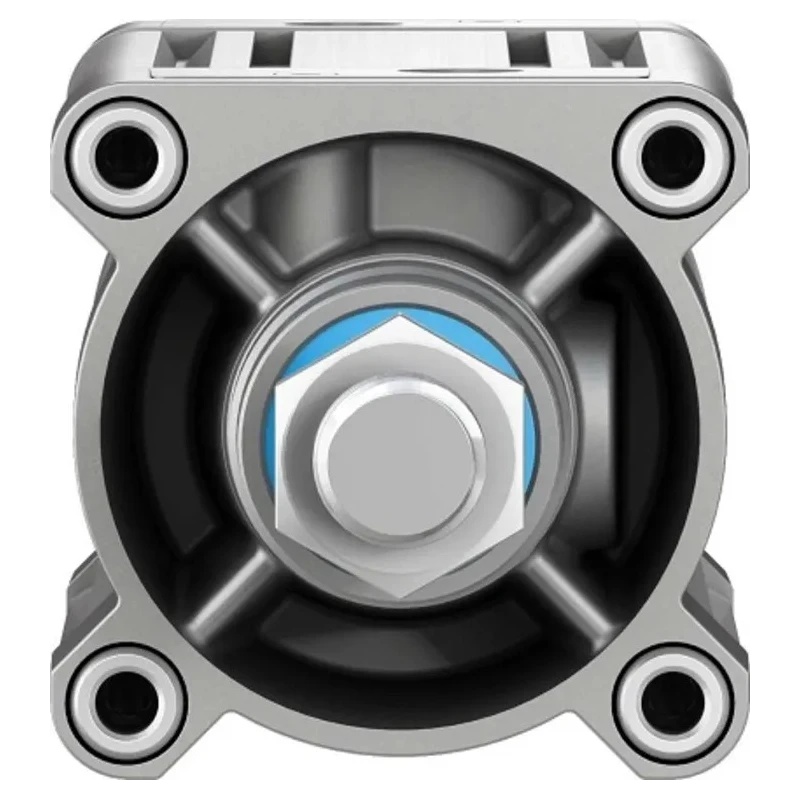

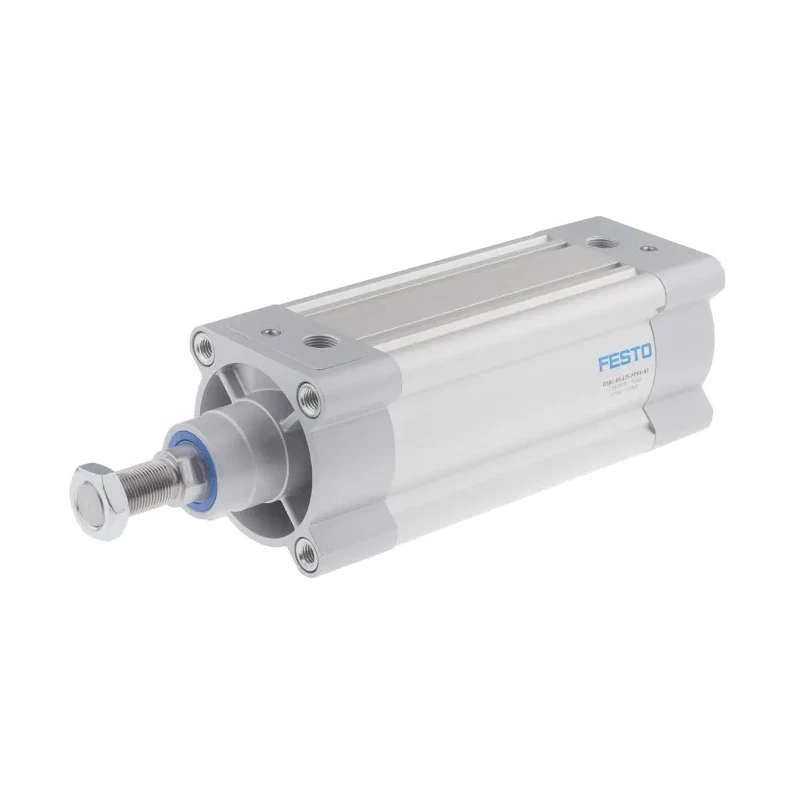

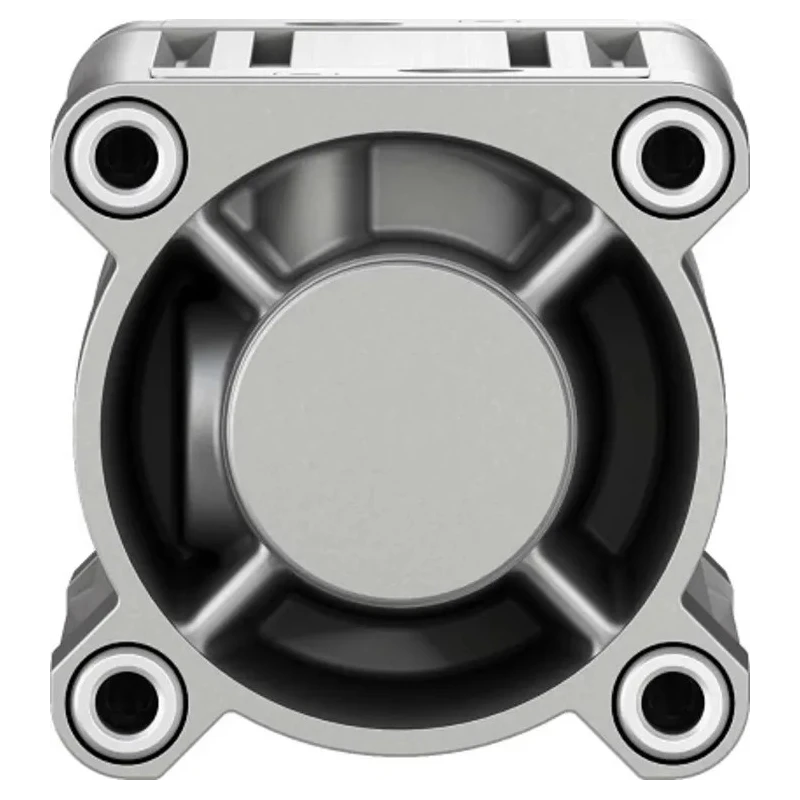

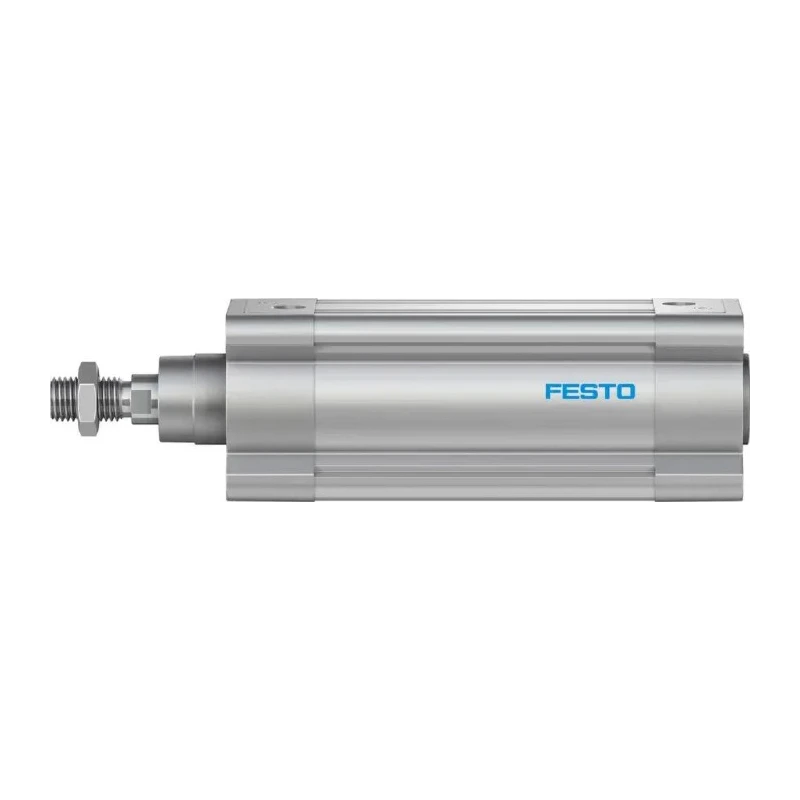

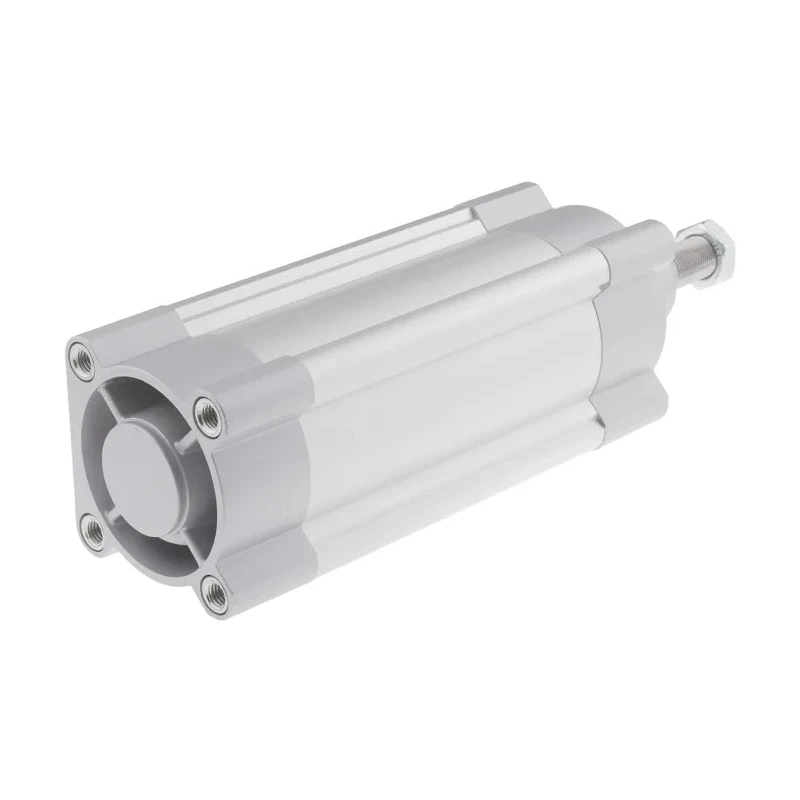

Festo Pneumatic Piston Rod Cylinder Double Acting 80mm Bore 125mm Stroke Aluminium Body DSBC-80-125-PPVA-N3

The Festo DSBC-80-125-PPVA-N3 pneumatic piston rod cylinder is a high-performance double acting actuator designed for precise and reliable linear motion in automated industrial systems. Featuring an 80mm bore diameter coupled with a 125mm stroke length, this cylinder delivers accurate positioning, clamping, and ejection capabilities.

Manufactured with a corrosion-resistant aluminium alloy body, it is lightweight at 2.7kg, reducing system load while providing durability in heavy-duty environments. The device measures a compact 342.6mm in length with dimensions 93mm in height and width, making it suitable for installations requiring space-efficient actuators.

Its double acting operation uses compressed air to power both the forward and return strokes, providing efficient motion control. The adjustable air cushioning with a fine-tune adjustment screw reduces noise and mechanical wear, thus extending the service life of the cylinder. It features a through hole mount type with a single rod of male gender that has a 3/8 inch G threaded piston rod.

Designed to operate reliably within temperatures ranging from -20°C to 80°C and pressures up to 12 bar, it meets ISO 15552 and RoHS standards. The standard G3/8 port connection enhances integration with various pneumatic systems, making it versatile for different industrial uses.

This model supports flush-mounted sensors in dedicated slots, allowing seamless integration into automated and sensor-controlled applications.

Typical applications for this Festo pneumatic piston rod cylinder include aerospace engineering, manufacturing and packaging lines, medical imaging systems, and automotive industry automation tasks where precision and reliability are critical.

Corrosion-resistant aluminium body ensures long-lasting durability. Compact design suitable for limited space installations. Double acting operation provides precise control of movement. Adjustable air cushioning reduces noise and extends lifespan.

Flush-mount sensor slots for enhanced automation compatibility. Wide operating pressure range of 0.4 to 12 bar. Operates efficiently in temperatures from -20°C to 80°C. Standard G3/8 port for easy system integration. Complies with ISO 15552 and RoHS quality standards.
