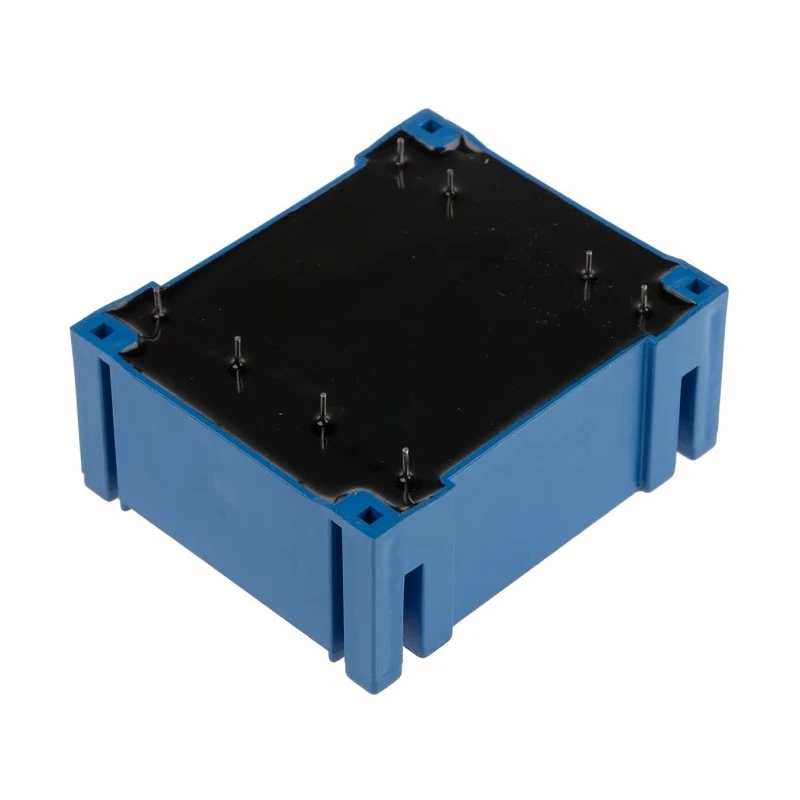

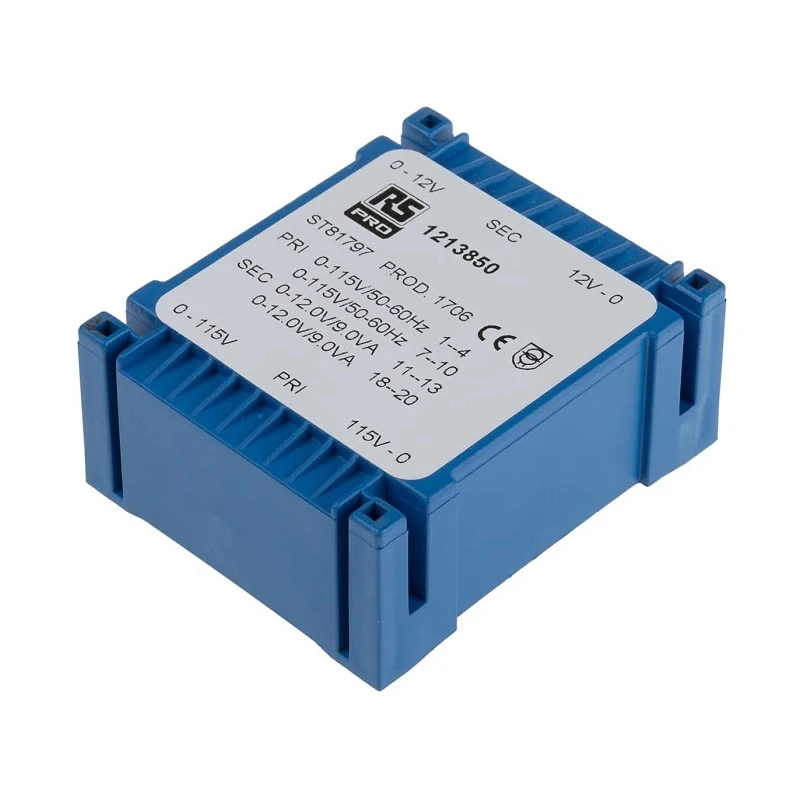

RS PRO 2 x 12 V AC 2 Output PCB Transformer, Dual Primary Windings, 18VA Power, 68x57x27mm Dimensions, Model 121-3850

RS PRO 121-3850 is a dual primary winding PCB transformer rated at 18VA power, delivering two independent 12 V AC secondary outputs. It is engineered for compact PCB mounting with low profile design, measuring 68mm in length, 57mm in width, and 27mm in depth. The transformer's lightweight of 385 grams and PCB mount type make it ideal for electronic component integration.

It supports dual primary voltages of 230 V AC and 115 V AC, making it versatile for various power supplies. The device is compliant with multiple international standards including ASNZS 61558.1, RoHS directives, IECBSEN 615581, IECBSEN 615586, and CE marking, ensuring safety and environmental adherence.

Equipped with 10 pins and independent secondary windings, this transformer supports series or parallel connection configurations to tailor output voltage and current as required. It features a maximum operating temperature of 130°C and operates effectively over a frequency range from 50Hz to 60Hz.

Commonly utilized in electronic power supply circuits, the RS PRO 121-3850 is suitable for industrial, laboratory, commercial electronics, and manufacturing applications requiring reliable low voltage AC outputs with dual secondary channels.

Designed with two independent 12 V AC secondary outputs for flexible voltage options. Operates on dual primary voltages of 230 V AC and 115 V AC for compatibility. Compact dimensions of 68mm length, 57mm width, and 27mm depth fit PCB mount applications.

Lightweight transformer suitable for low profile installations at 385 grams. Maximum operating temperature rating of 130°C for thermal reliability. Operates within frequency range 50Hz to 60Hz supporting electrical standards.

PCB mount type for direct printed circuit board integration. Certified to ASNZS 61558.1, RoHS, IECBSEN 615581, IECBSEN 615586, and CE standards. Explore suitable PCB Transformers and related electronic components on EnvMart for comprehensive industrial and commercial power supply solutions.
