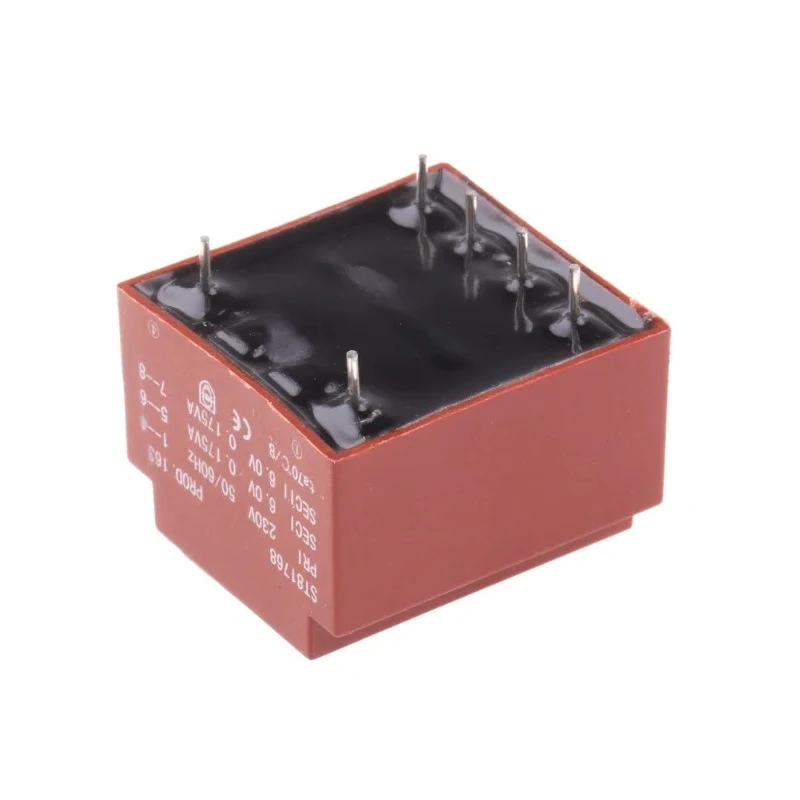

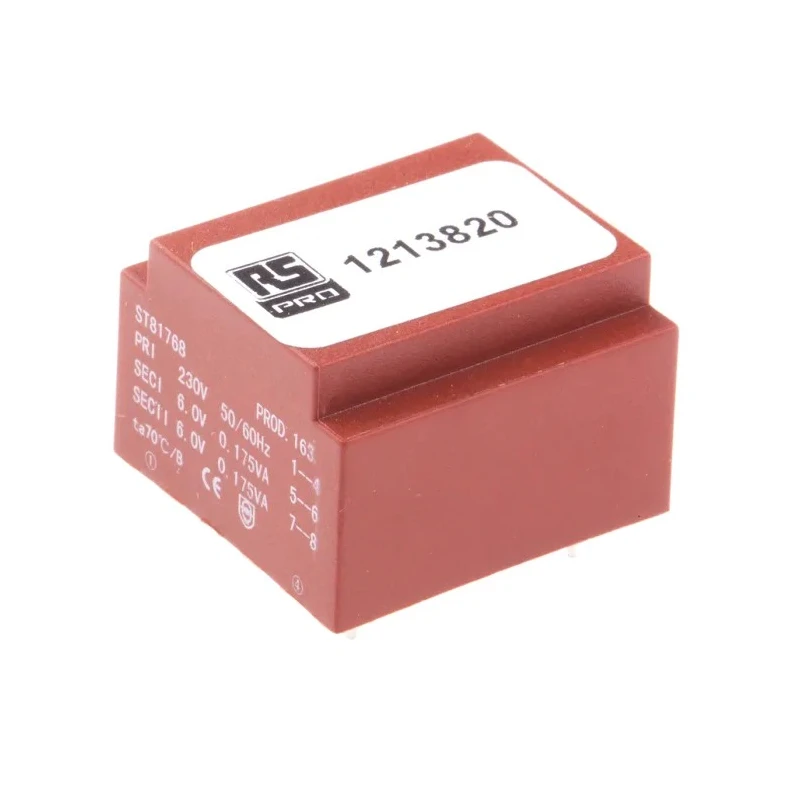

RS PRO 2 x 6 V AC 2 Output PCB Transformer, 0.35 VA, 230 V AC Primary, Independent Secondary, 50-60 Hz, RoHS, CE 121-3820
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | RS PRO |
| Length | 22mm |
| Model | 121-3820 |
| Depth | 15mm |
| Gross Weight | 440g |
| Width | 23mm |
| Mount Type | PCB |
| Maximum Operating Temperature | 130°C |
| Number of outputs | 2 |
| Winding Type | Independent Secondary, Single Primary |
| Primary Voltage | 230 V ac |
| Secondary Voltage | 2 x 6 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Block 6 V ac 2 Output Through Hole PCB Transformer, VDE, UL 0.35 VABrand | Block |
Key Features
- Compact PCB mounting transformer with dimensions 22mm length, 23mm width, and 15mm depth.
- Operates efficiently between 50 Hz and 60 Hz frequency range.
- Features independent secondary windings for versatile series or parallel connection.
- Constructed to meet RoHS, CE, ASNZS 61558 and IECBSEN standards ensuring safety and reliability.
- Rated for a maximum operating temperature of 130°C, ensuring stable performance under thermal stress.
- Lightweight design with a mass of 440 grams, suitable for compact electronic circuits.
- Designed with double section bobbin for low temperature rise and high efficiency.
- Low interwinding capacitance and minimal radiated noise for clean signal performance.
Product Description
RS PRO 121-3820 is a 2 x 6 V AC 2 Output PCB Transformer designed for use in electronic components, power supplies, and transformers applications requiring reliable step-down voltages. This compact unit operates from a 230 V AC primary winding at mains frequency of 50/60 Hz and delivers 0.35 VA output power. Its independent secondary windings allow wiring in series or parallel for flexible current options.
The transformer features a double section bobbin design providing high efficiency and low thermal rise while minimizing interwinding capacitance and radiated noise that can interfere with sensitive electronics. It is suitable for PCB mounting with a compact package size of 22mm length, 23mm width, and 15mm depth, weighing only 440 grams.
Certified to RoHS and other international safety standards including ASNZS 61558, IECBSEN 615586, IECBSEN 615581, and CE, it ensures compliance with global quality and environmental requirements. Rated for a maximum operating temperature of 130°C, this transformer maintains reliable operation even in demanding environments.
This transformer is ideal for industrial electronics, laboratory equipment, power supply modules, and other applications needing low-voltage AC supply with two independent secondary outputs. Manufactured in Poland, the unit ensures consistent quality and long service life.
Compact PCB mounting transformer with dual independent secondary windings. High efficiency and low temperature rise construction with double section bobbin. Wide operating frequency range from 50 Hz to 60 Hz. Certified to RoHS, CE, ASNZS 61558, and IECBSEN standards.
Low interwinding capacitance and reduced radiated noise for sensitive electronics. Lightweight design of 440 grams for easy integration into PCB assemblies. Maximum operating temperature of 130°C for robust thermal tolerance.
Two 6 V AC output windings suitable for series or parallel connection.
Explore a comprehensive range of PCB Transformers like RS PRO 121-3820 in the Electronics & Electricals category at EnvMart for reliable and efficient electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The transformer operates with a primary voltage of 230 V AC.
It has two secondary windings, each rated at 6 V AC, providing a total of 2 x 6 V AC output.
The maximum operating temperature is rated at 130°C, ensuring stable performance under thermal stress.
This model weighs 440 grams, making it lightweight for easy integration into PCB assemblies.
The dimensions of the transformer are 22 mm in length, 23 mm in width, and 15 mm in depth.
It operates efficiently within a frequency range of 50 Hz to 60 Hz.
It features independent secondary windings, allowing for versatile series or parallel connections.
This transformer is certified to RoHS, CE, ASNZS 61558, and IECBSEN standards, ensuring compliance with safety and quality requirements.
It has an output power rating of 0.35 VA, suitable for low-voltage applications.
Yes, this model is specifically designed for PCB mounting, making it ideal for compact electronic circuits.
The transformer is manufactured in Poland, ensuring consistent quality.
It is constructed with a double section bobbin design, which provides high efficiency and low thermal rise.
