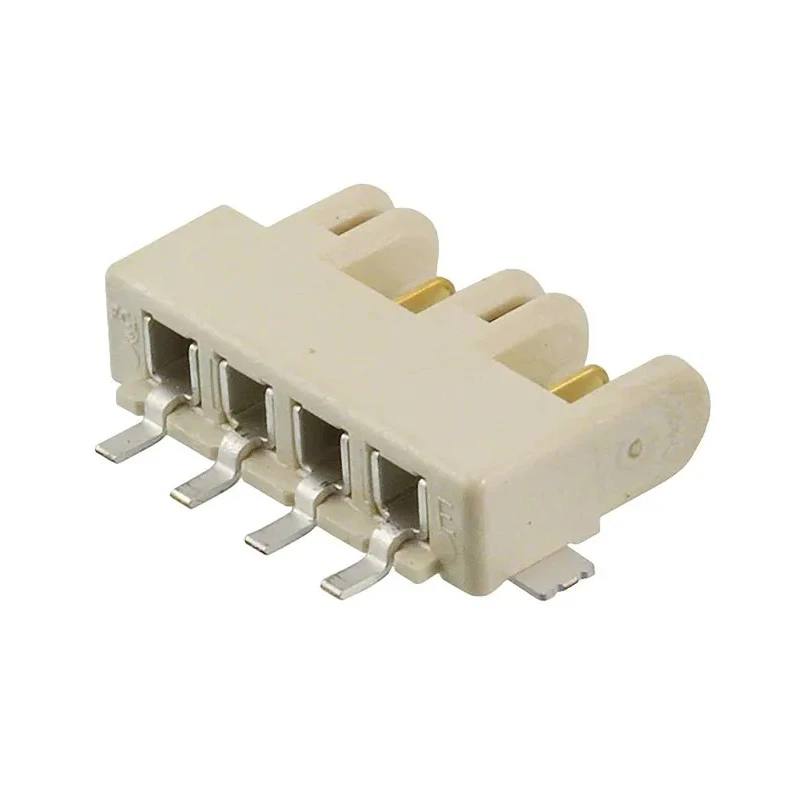

Amphenol Communications Solutions RotaConnect Series Right Angle Surface PCB Header, 4 Contact, 3 mm Pitch, 1 10120045-401LF

Amphenol Communications Solutions 10120045-401LF RotaConnect Series Right Angle Surface PCB Header features 4 contacts arranged in 1 row with a 3 mm pitch. This surface mount header is designed for flexible board-to-board connections within industrial electronics, communication devices, and sensor control systems.

The innovative hermaphroditic design offers both male and female contacts within one connector, allowing mating to itself at variable angles from +90° to -60°. This eliminates the need for separate header and receptacle components and enables versatile placement on PCBs.

Constructed with high temperature reflow solder capable thermoplastic housing, the shrouded connector ensures protection of contacts and accurate alignment with self-guiding features that prevent mismating and damage during assembly.

Gold-plated copper alloy dual beam contacts provide excellent conductivity and reliable high-performance connections, resisting vibration and mechanical wear. The connector supports 5A current at 125V, suitable for demanding industrial applications.

Available with hold down options for secure PCB fixation or locating pegs for enhanced placement and space conservation. The housing incorporates passive latch features with retention peg versions for stable operation.

These connectors are ideal for use in control boards, sensors, actuators, automotive lighting, LED strips, channel lettering, and commercial lighting systems. Hermaphroditic design eliminates need for both header and receptacle.

Rotatable mating from +90° to -60° angles for versatile PCB layouts. Dual beam gold-plated contacts ensure durability and high performance. Self-guiding thermoplastic housing prevents mismating and contact damage. Hold down and locating peg variations for secure and precise PCB mounting.

Operates reliably in -40°C to 125°C temperature range. Rated for 5A current and 125V voltage applications.
