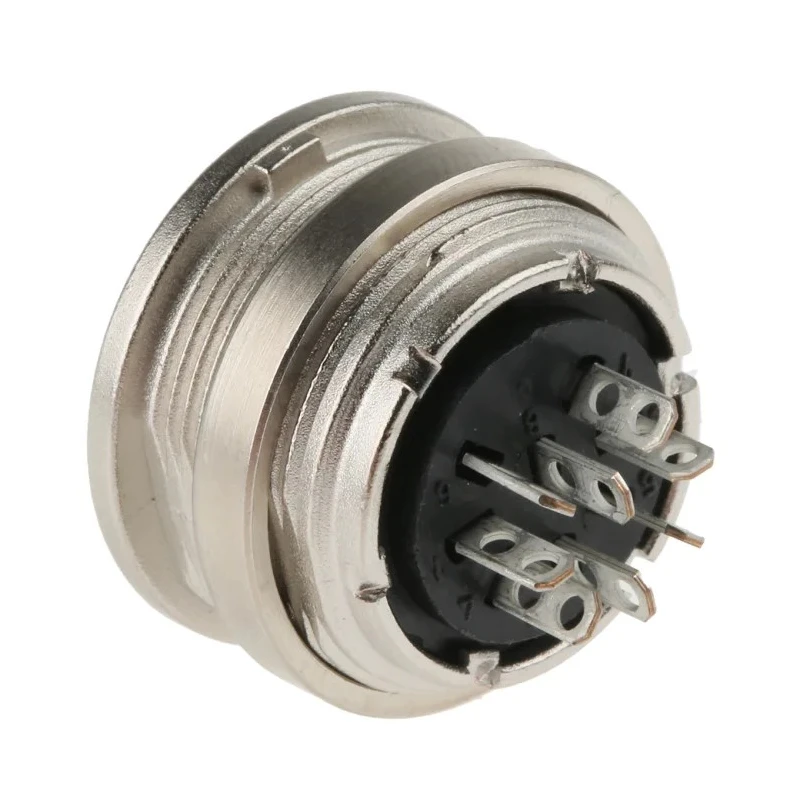

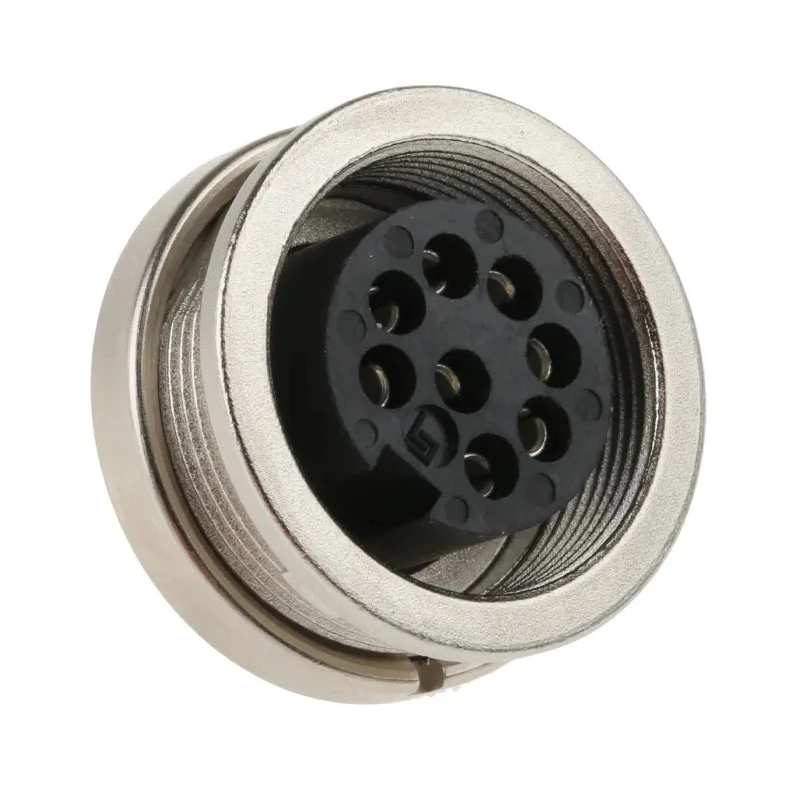

binder Circular Connector, 8 Contacts, Panel Mount, M16 Connector, Socket, Female, IP40, 680 Series 09-0474-00-08
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 5A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Silver |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Shell Size | 11.5 mm |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- Features a straight orientation and miniature, robust design.
- Suitable for solder termination with silver-plated brass contacts.
- Operates reliably within -40°C to +85°C temperature range.
- Panel mount type with 5A current and 60V voltage ratings.
- Metal housing made of die cast zinc for durability.
- Commonly used in medical equipment, machine tool control, and industrial automation.
- Provides IP40 ingress protection for dust resistance.
- Silver plating prevents oxidation for extended life expectancy.
Product Description
binder 09-0474-00-08 Circular Connector is a high-quality industrial connector designed for panel mount applications. It features an M16 sized socket with 8 female contacts, delivering electrical performance suitable for control and automation systems.
The connector's housing is constructed from durable die cast zinc, providing mechanical robustness and corrosion resistance. Its silver-plated brass contacts ensure low contact resistance and high conductivity, while preventing oxidation and extending operational life.
Designed for solder termination, this connector offers a reliable straight orientation mounting with IP40 ingress protection rating to guard against dust ingress. It supports an operating temperature range from -40°C up to 85°C and is rated for a maximum current of 5 amps at 60 volts, making it suitable for demanding industrial environments.
Typical applications include medical devices, machine tool controls, industrial automation, and instrumentation systems, where dependable connections are critical. Miniature, robust design suitable for panel mount installations.
Silver-plated brass contacts reduce oxidation and improve durability. Supports solder termination for stable electrical connections. Operating temperature range from -40°C to +85°C for diverse conditions. Die cast zinc housing provides mechanical strength and corrosion resistance.
Rated for 5A current and 60V voltage in industrial applications. IP40 rating protects against solid object intrusion and dust. Compatible with binder 680 series for easy integration. Female socket ensures safe and reliable mating connections.
This binder 680 Series industrial circular connector is engineered to meet the rigorous demands of industrial and laboratory environments. Ideal for use in medical equipment manufacturing, automation control panels, and instrumentation setups, it assures high reliability and long service life.
Explore more in the Industrial Circular Connectors category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 5A and a voltage of 60V, making it suitable for various industrial applications.
It operates reliably within a temperature range of -40°C to +85°C, allowing for use in diverse environmental conditions.
This connector supports solder termination, ensuring stable electrical connections for reliable performance.
The connector has an IP40 ingress protection rating, which protects against dust ingress and solid object intrusion.
The housing is made of die cast zinc, while the contacts are silver-plated brass, which helps prevent oxidation and enhances conductivity.
This model features 8 female contacts, designed for reliable electrical connections in panel mount applications.
The shell size of this connector is 11.5 mm, which is standard for M16 connectors.
Common applications include medical equipment, machine tool controls, and industrial automation, where dependable connections are essential.
The connector features a straight orientation, suitable for various panel mount installations.
The silver plating on the contacts reduces oxidation and improves durability, contributing to a longer operational life.
The binder Circular Connector is manufactured in Germany, reflecting its industrial quality standards.
Yes, this model is compatible with other products in the binder 680 series, facilitating easy integration into existing systems.
