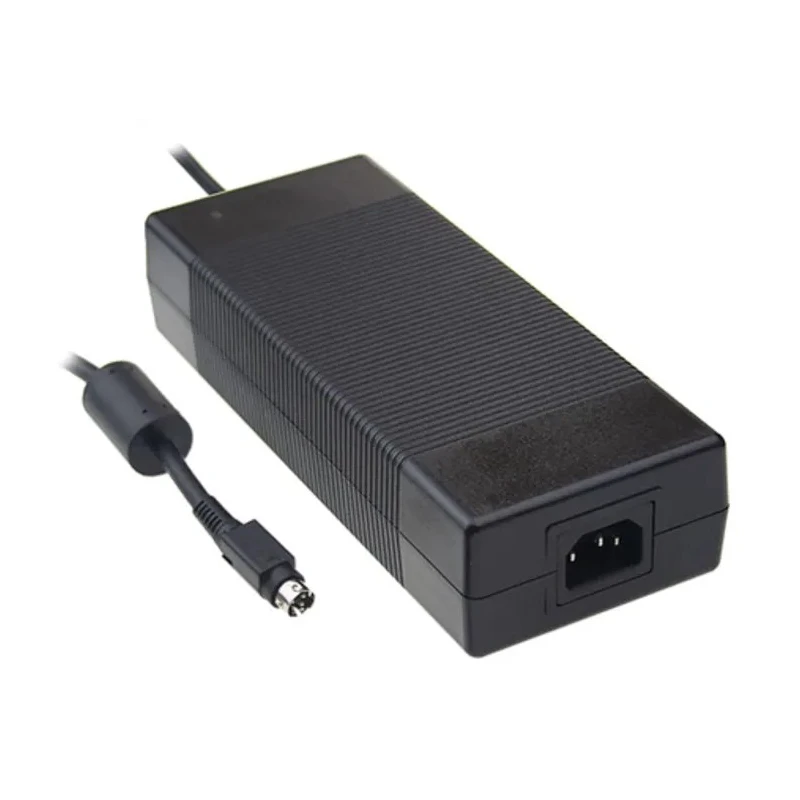

MEAN WELL 180W Desktop AC/DC Adapter 12 V DC, 15 A Output Current GST220A12-R7B

MEAN WELL GST220A12-R7B is a high-quality 180W desktop AC/DC adapter providing a stable 12 V DC output at a maximum current of 15 A. It is designed to support a wide range of power applications in industrial, telecommunications, consumer electronics, and office equipment sectors.

The adapter features an input voltage range from 85 VAC up to 264 VAC and DC inputs from 120 VDC to 370 VDC, enabling global usability with an input frequency range of 47Hz to 63Hz. It is built with a standard IEC 320-C14 3-pin power plug for easy integration.

MEAN WELL has engineered this power supply with high efficiency (up to 94.5%) and very low no-load consumption below 0.15W to reduce energy costs and environmental impact. Its fully enclosed casing is constructed with materials that meet 94V-0 flame retardant requirements, ensuring reliable and safe operation in harsh industrial environments.

Robust protections including short-circuit, overload, over voltage, and over temperature safeguards are incorporated to ensure long-term device reliability. Power status LED provides clear visual indication during operation.

The adapter meets international safety and electromagnetic compatibility standards such as TUV EN 60950-1, UL 60950-1, CSA C., CCC GB494, BSMI CNS146, and other certifications, assuring compliance and quality.

This power supply unit suits diverse industrial use cases including consumer electronics, telecommunications devices, office facilities, and general industrial equipment. Provides continuous output power of 180 watts. Input voltage range from 85 VAC to 264 VAC and DC input from 120 VDC to 370 VDC.

Equipped with IEC 320-C14 standard input connector. High efficiency rating up to 94.5% with low no-load power consumption under 0.15W. Built-in protections against short circuit, overload, over voltage, and overheating. Operating temperature range from -30°C to 70°C.

Fully enclosed compact casing with flame retardant materials rated to 94V-0. LED indication for power status. Complies with multiple global safety and EMC standards including UL 60950-1, TUV EN 60950-1, and CCC GB494. Suitable for consumer electronics, telecommunications, office equipment, and industrial machinery applications.

Explore MEAN WELL AC/DC Adapters and other power supply solutions in the Electronics & Electricals category at EnvMart to find the best fit for your power needs.
