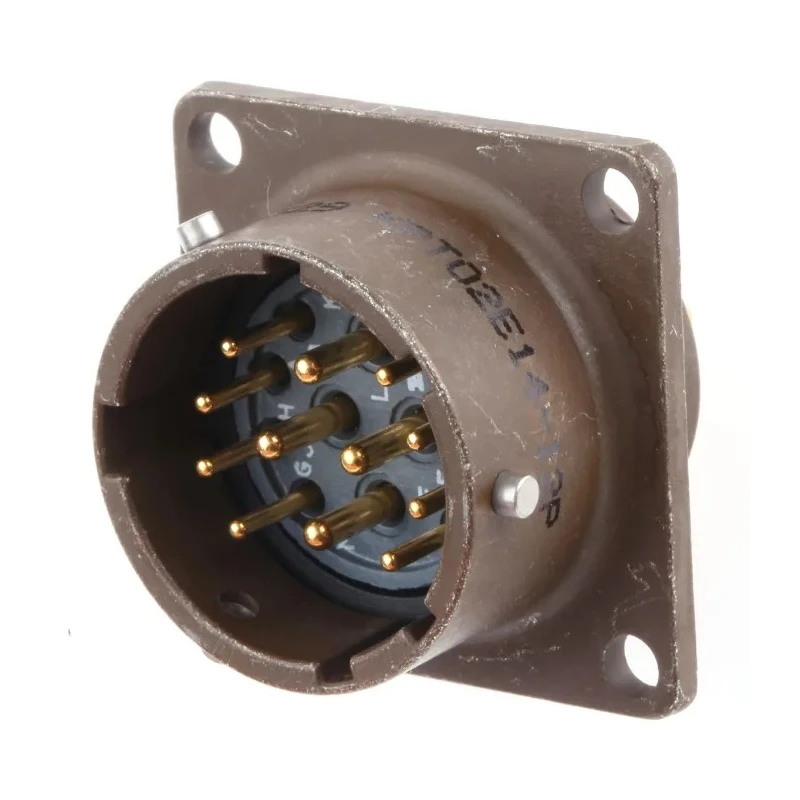

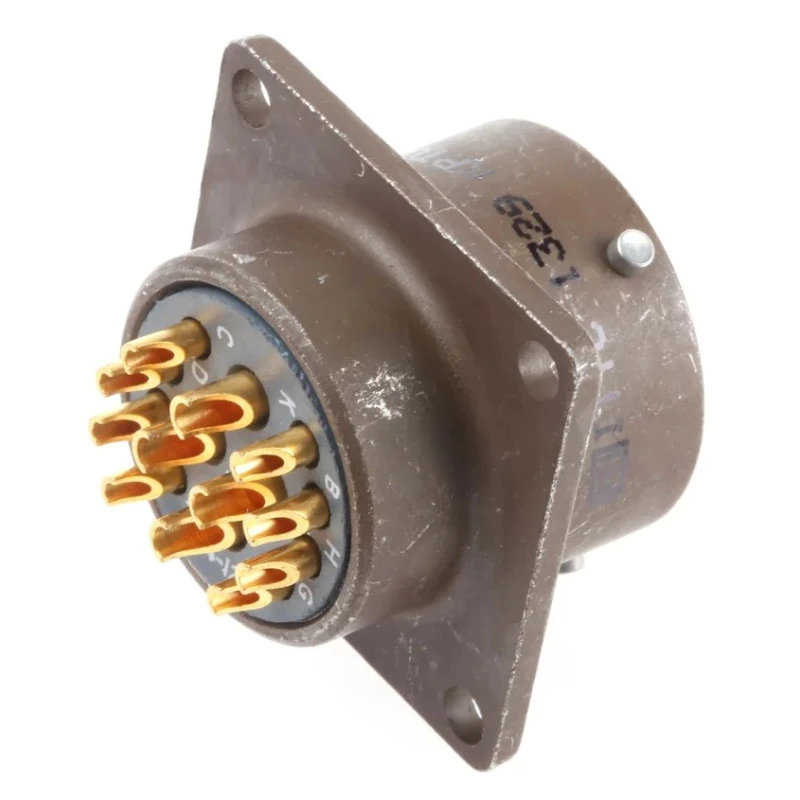

ITT Cannon MIL Spec Circular Connector Copper Alloy Straight 12 Way Box Mount, Female Connector, Male Contacts KPT02E14-12P
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 850V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 22A |
| Model | KPT02E14-12P |
| Mount Type | Box Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | KPT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |

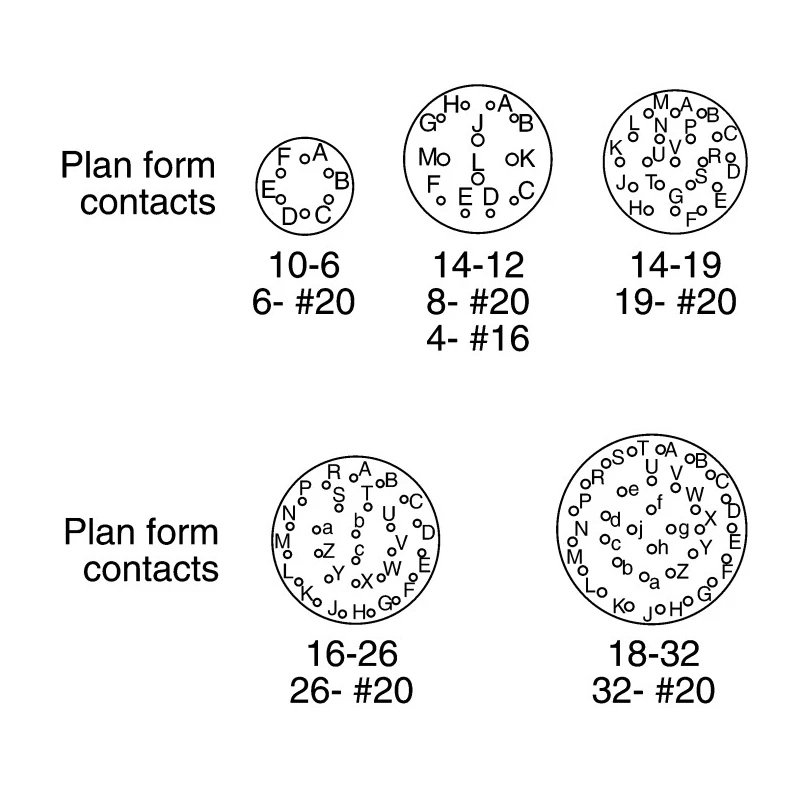

| Number of Contacts | 12 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 14 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Shell Plating | Olive Drab Cadmium |
Key Features
- Complies with MIL-DTL-26482 military standard ensuring high performance and robust connection.
- Constructed with aluminium housing and copper alloy contacts for durability and conductivity.
- Features gold-plated contacts and olive drab cadmium shell plating for corrosion resistance.
- Supports 12 contacts with a maximum current rating of 22A and voltage rating of 850V.
- Designed with straight orientation and box mount for secure chassis installation.
- Utilizes bayonet mating type for easy and reliable coupling.
- Operates reliably within temperature range -55°C to 125°C.
- Termination type is solder for firm electrical connection.
Product Description
ITT Cannon KPT02E14-12P Mil Spec Circular Connector is a high-quality, durable multipole connector designed to meet the stringent requirements of MIL-DTL-26482 military specification. This model features a copper alloy contact system with gold plating to ensure low contact resistance and excellent conductivity, while the aluminium housing provides robust mechanical protection and reliability in harsh environments.
With 12 male contacts arranged in a straight orientation, it supports a maximum current of 22 amps and voltage up to 850 volts. The shell size 14 along with a box mount design enables secure chassis mounting in industrial and military setups. The olive drab cadmium plating on the shell ensures corrosion resistance and electromagnetic screening.
The connector employs a bayonet coupling mechanism for quick mating and unmating operations, suitable for aerospace, industrial electronics, and defense communications systems. Its operating temperature range of -55°C to 125°C makes it adaptable to extreme environmental conditions.
Termination is by solder, allowing reliable cable attachment. The connector complies fully with MIL-DTL-26482M standards and mates with compatible connectors of matching orientation and shell size. This model is ideal for applications requiring high reliability and precision in electrical connections.
Complies with MIL-DTL-26482 military standard. Housing made from rugged aluminium for durability. Contacts made of copper alloy with gold plating for excellent conductivity. Shell plating features olive drab cadmium for corrosion resistance.
Mates via bayonet coupling with compatible connectors. Supports 12 contacts with 22A current and 850V voltage rating. Operating temperature from -55°C to 125°C for extreme environments. Solder termination type for secure cable connection.
Straight orientation, box mount type for chassis installation. Suitable for industrial, military, aerospace electronic systems.
This connector is part of ITT Cannon's trusted KPT series delivering military-grade quality for critical electronic component applications. Explore further ITT Cannon connectors and related products in our Electronics & Electricals catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 22A and a voltage rating of 850V.
It operates reliably within a temperature range of -55°C to 125°C.
The housing is made from aluminium, while the contacts are constructed from copper alloy with gold plating for excellent conductivity.
This connector features 12 male contacts and has a female connector gender.
The termination type is solder, which allows for a secure electrical connection.
The shell size for this model is 14.
It is designed for box mount installation, ensuring secure chassis mounting.
It utilizes a bayonet mating type for easy and reliable coupling.
Yes, it complies with the MIL-DTL-26482 military standard.
The shell features olive drab cadmium plating for corrosion resistance.
The country of origin for this connector is India.
This connector is suitable for aerospace, industrial electronics, and defense communications systems.
