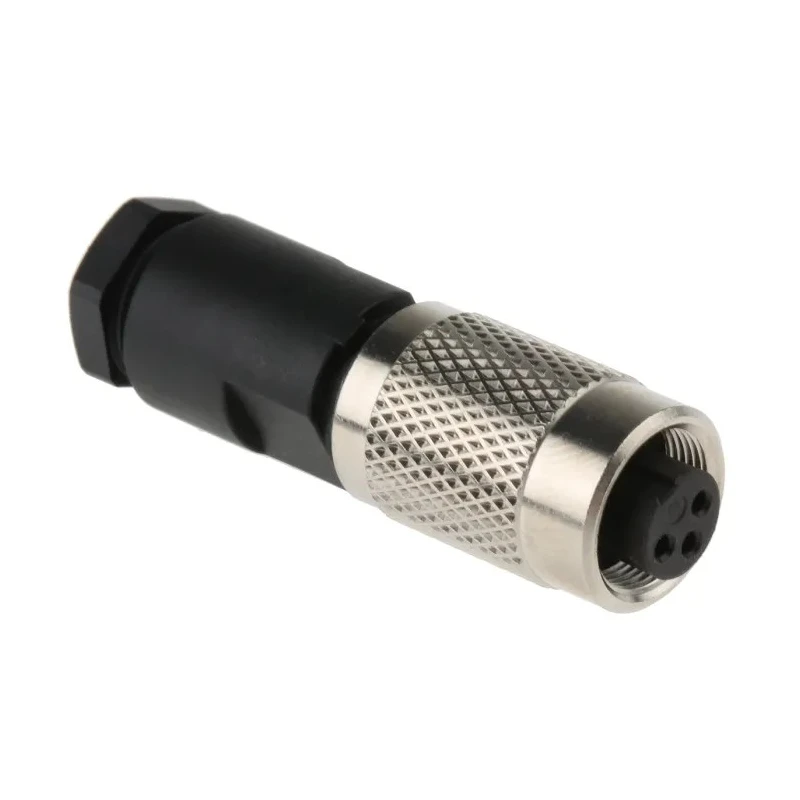

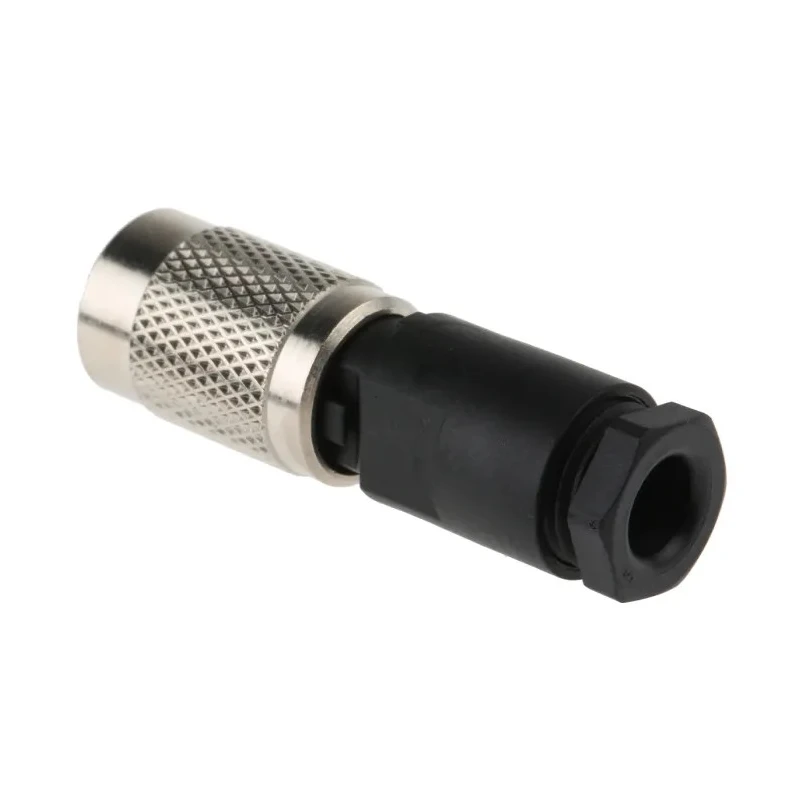

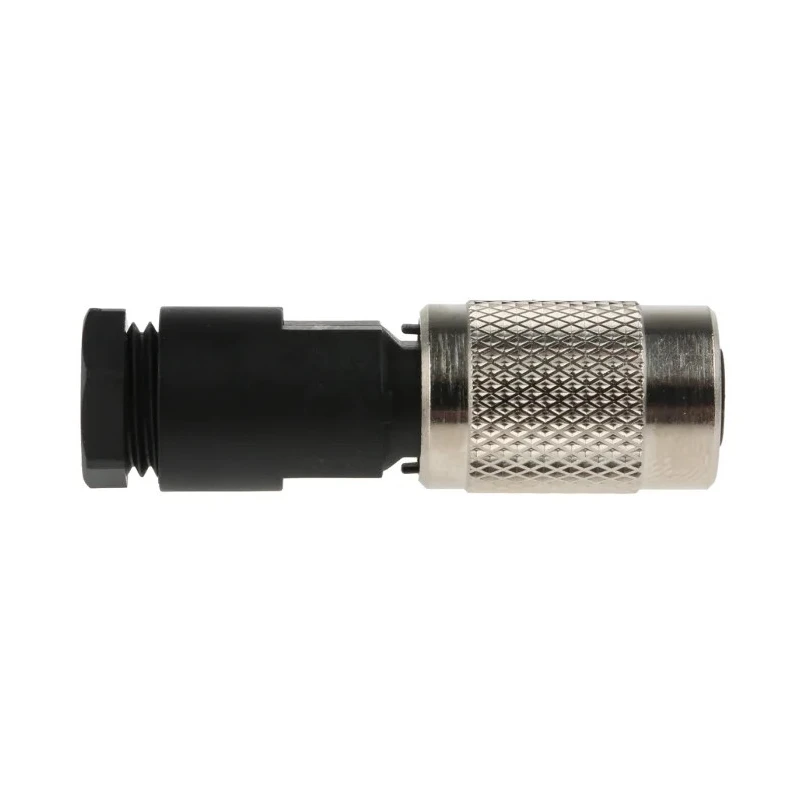

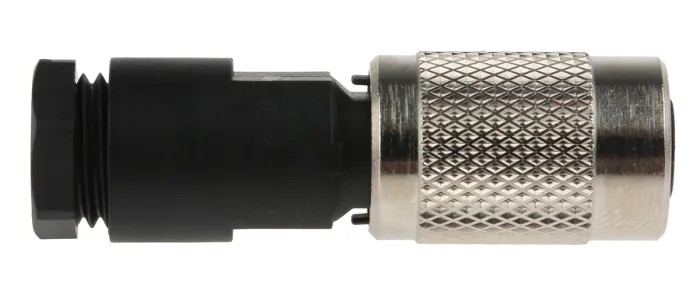

binder Industrial Circular Connector 3 Contacts Cable M9 Socket Female IP67 712 Series
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 4A |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Bronze |
| Series | 712 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 11.5 mm |
| Connector Size | M9 |
| Plug/Socket | Socket |
Key Features
- Supports a current of up to 4A per contact and voltage rating of 125V.
- Constructed from durable polyamide with gold-plated bronze contacts for corrosion resistance.
- Features a solder termination type ensuring secure connection.
- Has a straight orientation with a cable mount for versatile installation.
- Operates reliably between -40°C and 85°C for industrial environments.
- Designed with a screw-on locking mechanism providing stable mating and attenuation resistance.
- Durability exceeds 500 mating cycles to guarantee long service life.
- Not shielded, with wire gauge supporting 24 AWG cables.
Product Description
binder 99-0406-00-03 Industrial Circular Connector is a 3-contact M9 female socket cable mount connector from the 712 Series with an IP67 ingress protection rating. It supports a voltage rating of 125V and a current rating of 4A per contact. The connector is made with a polymer housing and features gold-plated bronze contacts for high conductivity and corrosion resistance.
This connector uses a solder termination type and a straight body orientation, offering a sturdy cable connection suitable for harsh industrial environments. The screw-on locking mechanism provides secure mating to mating connectors ensuring reliable contact and attenuation resistance. The connector is designed to withstand over 500 mating cycles, making it a durable and dependable choice.
Operating temperature ranges from -40°C to 85°C allowing functionality in extreme temperature conditions. The wire gauge supported for this connector is 24 AWG with a cable outlet diameter range between 3.5mm and 5mm. Though not shielded, it is ideal for various industrial automation and instrumentation processes.
Manufactured in Germany, the binder 712 Series connectors are trusted for process control, commercial electronics, and other industrial applications requiring secure and robust circular connectors.
Supports 4A current rating at 125V voltage rating per contact. Gold-plated bronze contacts with polymer housing for durability. Straight cable mount socket with solder termination. IP67 rated for dust and water ingress protection.
Screw-on locking mechanism for stable connections. Operational temperature from -40°C to 85°C. Durability of over 500 mating cycles ensures longevity. Compatible with 24 AWG wire gauge cables. Manufactured in Germany with 712 Series quality standards.
Widely used in industrial automation, instrumentation, and commercial electronics industries.
This product is part of the Electronics & Electricals category under Circular Connectors, specifically Industrial Circular Connectors in comprehensive electrical connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 125V and a current rating of 4A per contact.
This connector has an IP67 ingress protection rating, making it resistant to dust and water ingress.
It operates reliably between -40°C and 85°C, suitable for extreme temperature conditions.
The connector features a polymer housing and gold-plated bronze contacts for high conductivity and corrosion resistance.
This model has 3 contacts, designed for female connections.
It uses a solder termination type, ensuring a secure connection.
The cable outlet diameter range is between 3.5mm and 5mm.
It is designed to exceed 500 mating cycles, ensuring longevity in use.
This connector has a straight orientation, suitable for various installation scenarios.
The shell size of this model is 11.5 mm.
It is manufactured in Germany, adhering to the quality standards of the 712 Series.
It is widely used in industrial automation, instrumentation, and commercial electronics.
