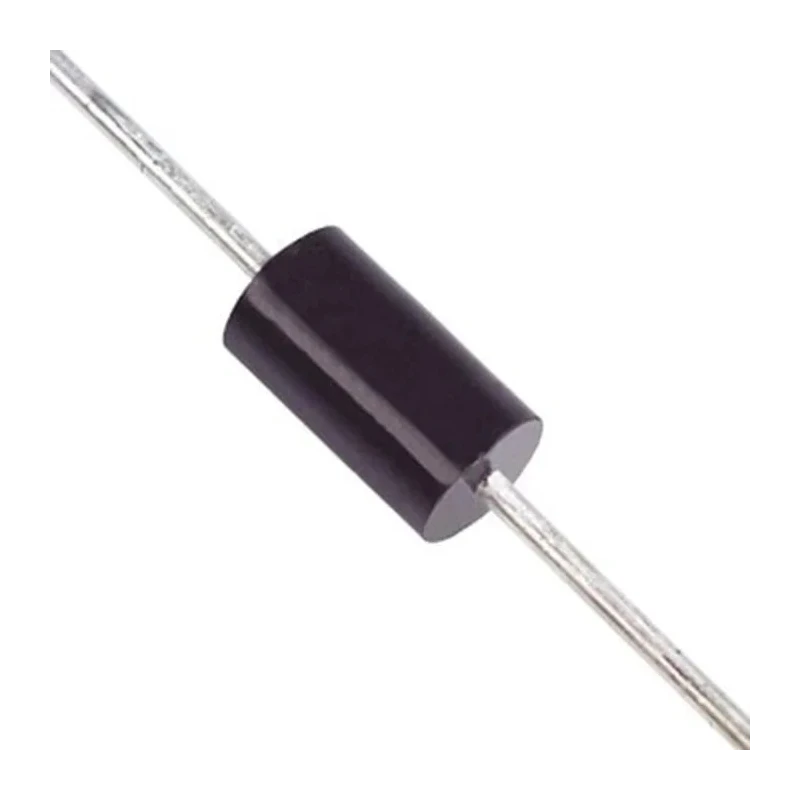

onsemi 600 V 3 A Recovery Diode Through Hole 2-Pin DO-201AD 1N5406RLG

onsemi 1N5406RLG is a 600 V, 3 A recovery rectifier diode designed for through-hole mounting in a DO-201AD package. It features a single diode configuration with excellent recovery characteristics and high surge current handling capability, making it suitable for a wide range of electronic applications.

This diode is engineered to operate reliably across a broad temperature range from -65°C to 150°C, ensuring long-lasting performance in industrial and commercial semiconductor circuits. Its maximum forward voltage drop of 1V allows for efficient power conversion and minimal energy loss.

The device's maximum continuous forward current rating of 3 amperes and its ability to withstand a peak non-repetitive forward surge current of 200 amperes make it ideal for rectification and power supply regulation tasks in power electronics, switching regulators, and motor control.

Physically, the diode comes in a DO-201AD package with a length and height of 9.5 mm and a diameter of 5.3 mm. Its two-pin configuration supports easy PCB through-hole mounting and stable electrical connections.

Key features include a fast peak reverse recovery time of 1.6 nanoseconds, ensuring quick switching and low loss, and a peak reverse current of just 50 microamperes for efficient blocking capabilities. These specifications position the 1N5406RLG diode for effective use in high-performance rectification, power supplies, and industrial electronics.

Maximum continuous forward current of 3 A for stable current handling. Peak reverse repetitive voltage up to 600 V for high-voltage applications. Fast recovery diode with 1.6 ns peak reverse recovery time. Rectifier type diode with single configuration and 2-pin DO-201AD package.

Wide operating temperature range from -65°C to 150°C. Maximum forward voltage drop of 1 V for efficient operation. Peak non-repetitive forward surge current of 200 A for surge protection. Compact dimensions with 9.5 mm length and height, and 5.3 mm diameter.

Manufactured in China adhering to quality standards.

This diode is suitable for various industrial, electronic equipment, power conversion, and semiconductor applications where reliable rectification and high voltage endurance are required. It is ideal for use in power supplies, switching devices, and high-current circuits.
